Components [06/2015 - ]

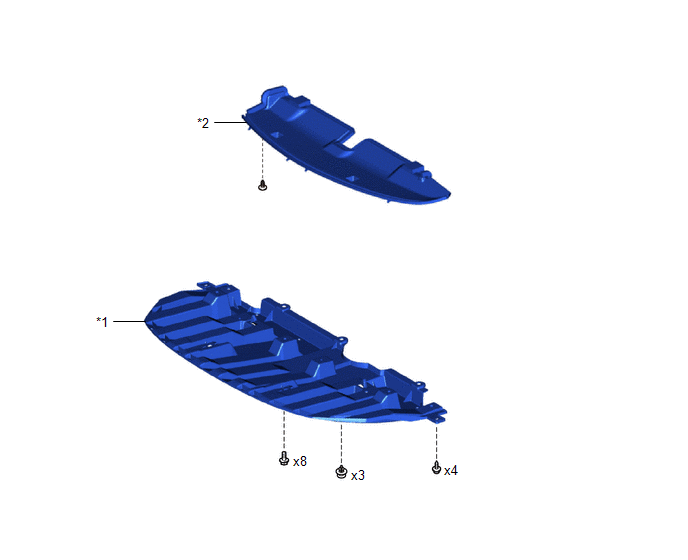

Fig 1: FC Stack Replacement Components (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT BUMPER LOWER ABSORBER

NO. 3 RADIATOR AIR GUIDE

Fig 2: FC Stack Replacement Components With Torque Specifications (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
*3	NO. 2 MOTOR UNDER COVER	*4	SUSPENSION MEMBER TO FRONT CROSSMEMBER BRACE SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: FC Stack Replacement Components (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FLOOR CENTER COVER LH	*2	FRONT FLOOR CENTER COVER RH
*3	NO. 1 FLOOR UNDER COVER	*4	NO. 2 FLOOR UNDER COVER

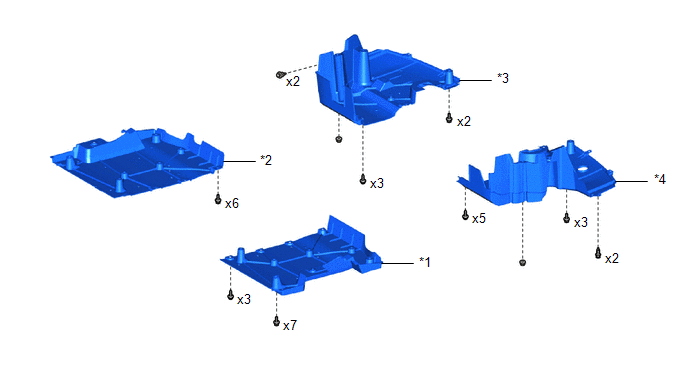

Fig 4: FC Stack Replacement Components With Torque Specifications (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 8 EV BATTERY SHIELD PANEL	*2	SERVICE PLUG GRIP (for EV)
*3	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	*4	FRONT LUGGAGE COMPARTMENT TRIM COVER
*5	NO. 2 LUGGAGE COMPARTMENT TRIM HOOK	*6	LUGGAGE COMPARTMENT FLOOR MAT
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

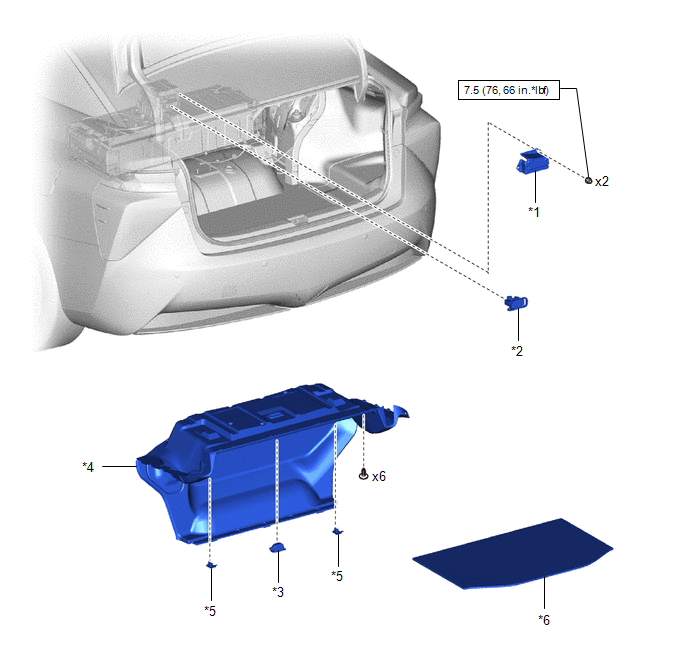

Fig 5: FC Stack Replacement Components With Torque Specifications (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 HYDROGEN SUPPLY REGULATOR PLUG	*2	HYDROGEN SUPPLY REGULATOR UNION
*3	O-RING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	TOYOTA Genuine FC Grease	-	-

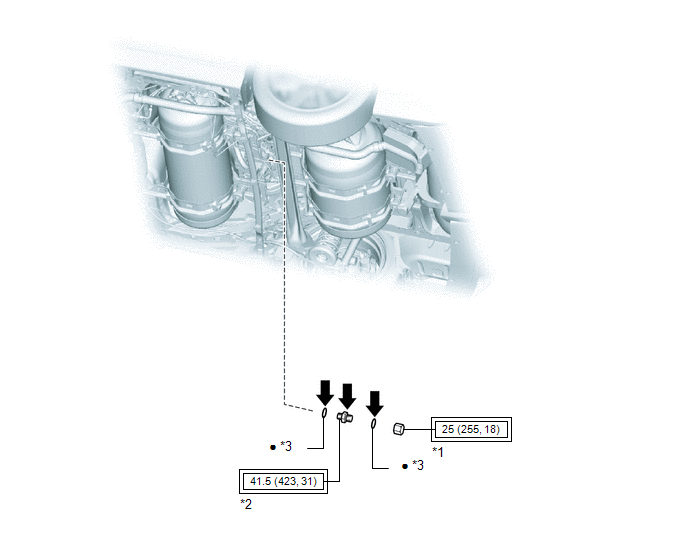

Fig 6: FC Stack Replacement Components With Torque Specifications (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FC STACK SERVICE PLUG GRIP	*2	FRONT FLOOR SERVICE HOLE COVER
*3	FRONT FLOOR HOLE SEAL	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 7: FC Stack Replacement Components With Torque Specifications (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	WIRE HARNESS	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

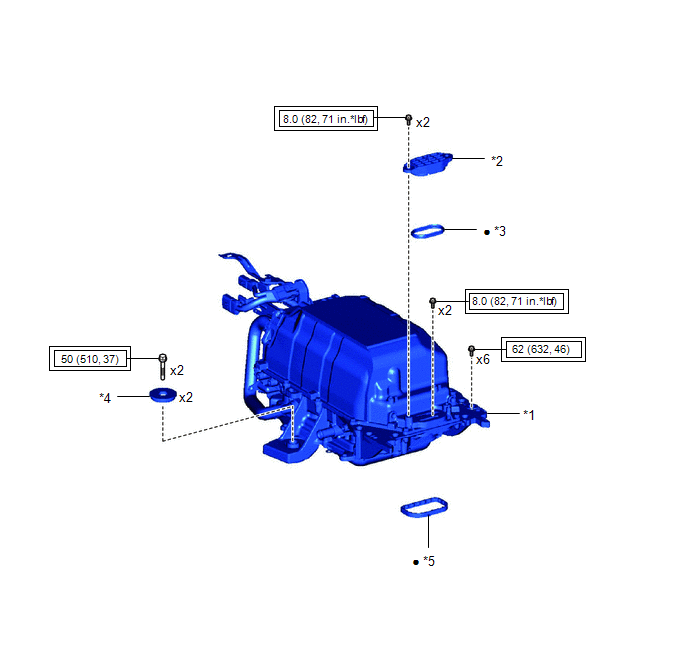

Fig 8: FC Stack Replacement Components With Torque Specifications (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INVERTER COVER	*2	INVERTER TERMINAL COVER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

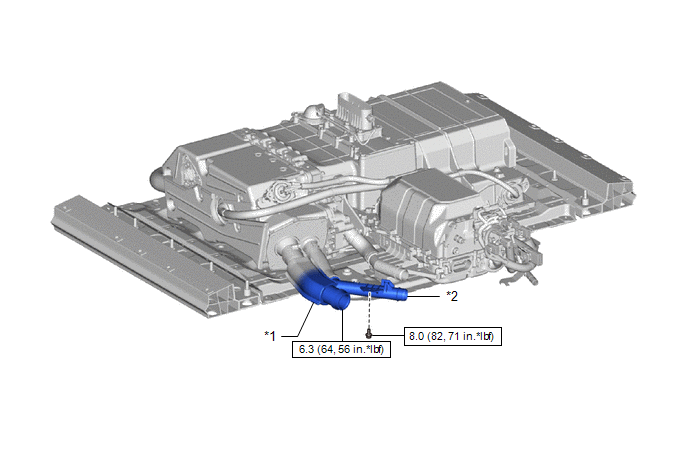

Fig 9: FC Stack Replacement Components With Torque Specifications (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FC CONVERTER POWER OUTLET CABLE	*2	FRONT FC CONVERTER SERVICE HOLE COVER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

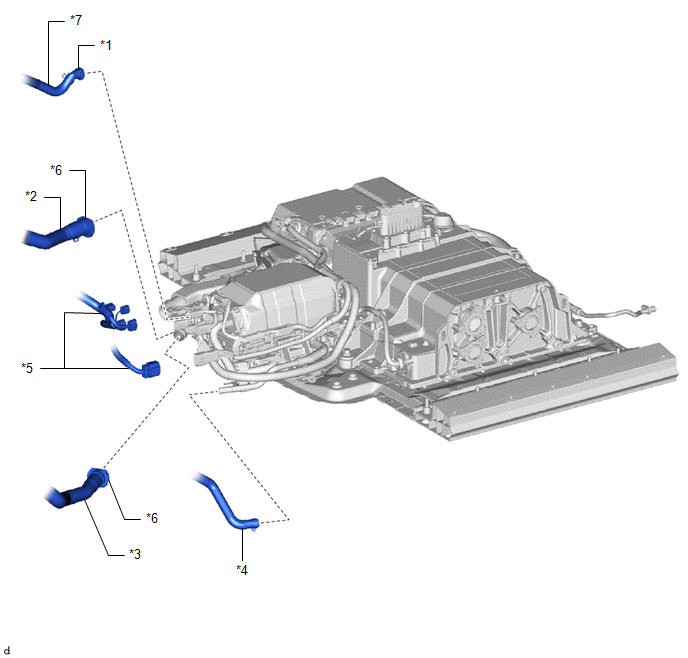

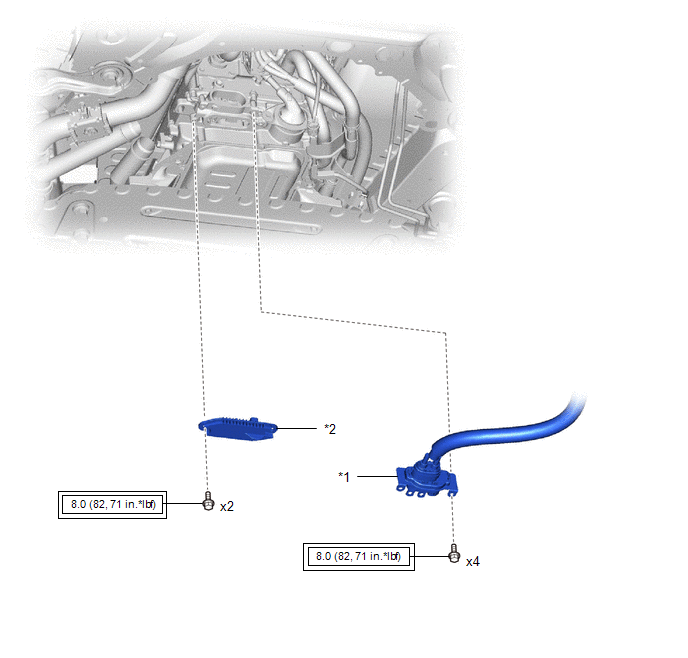

Fig 10: FC Stack Replacement Components (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 EV WATER HOSE CONNECTOR	*2	NO. 2 FC COOLING WATER PUMP OUTLET HOSE
*3	NO. 2 FC COOLING WATER VALVE INLET HOSE	*4	NO. 2 INVERTER COOLING OUTLET HOSE
*5	WIRE HARNESS	*6	FC WATER HOSE CONNECTOR
*7	FC CONVERTER COOLING WATER OUTLET HOSE	-	-

Fig 11: FC Stack Replacement Components With Torque Specifications (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FC STACK AIR INLET HOSE	*2	FC STACK COOLING WATER OUTLET PIPE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 12: FC Stack Replacement Components With Torque Specifications (12 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 FC EXHAUST PIPE	*2	NO. 1 HYDROGEN SUPPLY TUBE SUB-ASSEMBLY
*3	NO. 2 FC EXHAUST PIPE	*4	NO. 2 HYDROGEN SUPPLY TUBE SUB-ASSEMBLY
*5	NO. 3 PARKING BRAKE CABLE ASSEMBLY	*6	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
•	Non-reusable part		TOYOTA Genuine FC Grease

Fig 13: FC Stack Replacement Components With Torque Specifications (13 Of 17)

Callout	Description	Callout	Description
*1	FRAME REAR CROSSMEMBER EXTENSION LH	*2	FRAME REAR CROSSMEMBER EXTENSION RH
*3	REAR FRAME ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

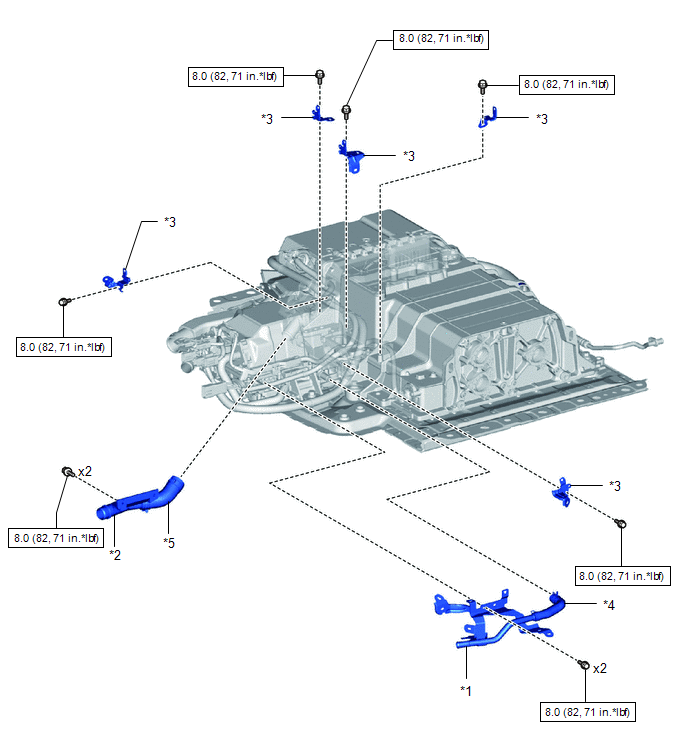

Fig 14: FC Stack Replacement Components With Torque Specifications (14 Of 17)

Callout	Description	Callout	Description
*1	FC CONVERTER COOLING WATER INLET PIPE	*2	FC STACK COOLING WATER INLET PIPE
*3	WIRE HARNESS CLAMP BRACKET	*4	FC CONVERTER COOLING WATER INLET HOSE
*5	FC STACK COOLING WATER INLET HOSE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 15: FC Stack Replacement Components With Torque Specifications (15 Of 17)

Callout	Description	Callout	Description
*1	FC CONVERTER ASSEMBLY	*2	REAR FC CONVERTER SERVICE HOLE COVER
*3	REAR FC CONVERTER SERVICE HOLE COVER GASKET	*4	NO. 2 FC STACK MOUNT
*5	REAR FC CONVERTER GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	•	Non-reusable part

Fig 16: FC Stack Replacement Components With Torque Specifications (16 Of 17)

Callout	Description	Callout	Description
*1	FC STACK AIR INLET HOSE	*2	FC STACK COOLING WATER OUTLET HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 17: FC Stack Replacement Components With Torque Specifications (17 Of 17)

Callout	Description	Callout	Description
*1	FC STACK ASSEMBLY	*2	NO. 1 FC EXHAUST PIPE
*3	NO. 1 FC STACK CAUTION LABEL	*4	NO. 1 HYDROGEN SUPPLY TUBE SUB-ASSEMBLY
*5	NO. 2 FC STACK MOUNT	*6	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
•	Non-reusable part		TOYOTA Genuine FC Grease
