Components [06/2016 - ]

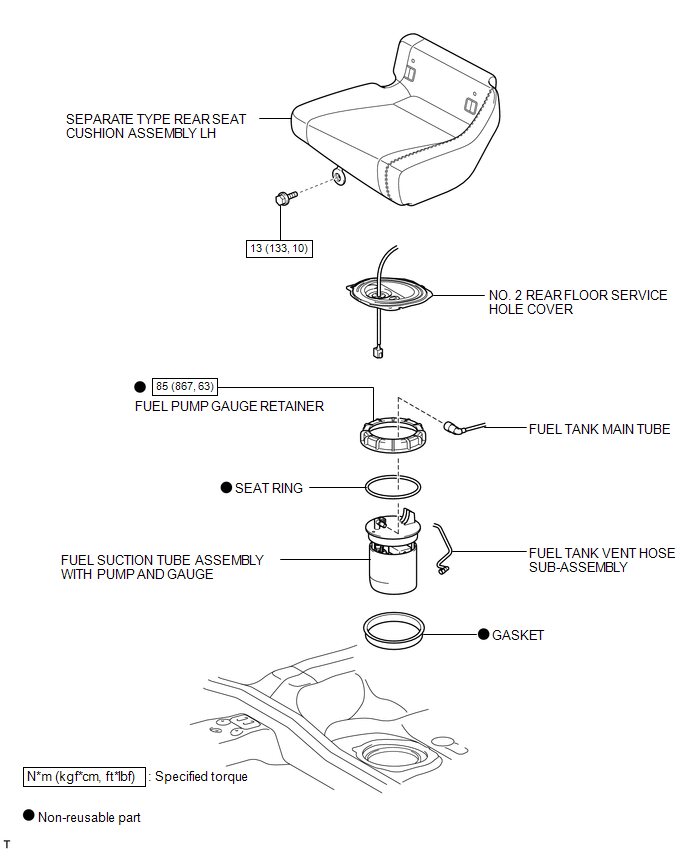

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
GTY708248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

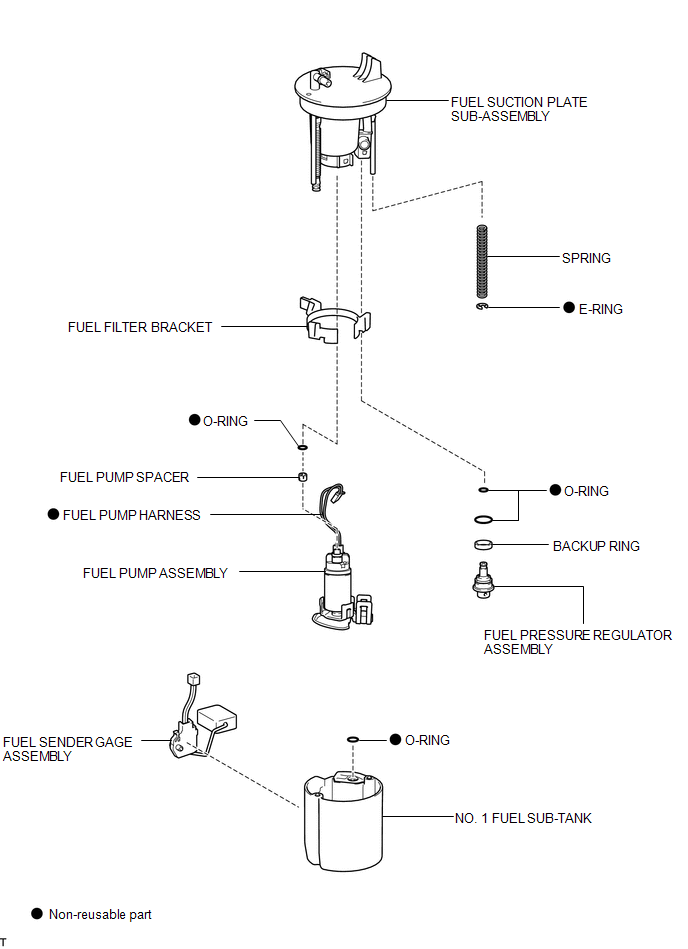

Fig 2: Fuel Pump Replacement Components (2 Of 2)
GTY710652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
