Removal [06/2016 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [06/2016 - ] )

  2. REMOVE FUEL DELIVERY PIPE

    See step  3

  3. REMOVE FUEL DELIVERY PIPE (for Bank 1)

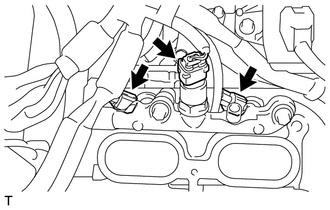

    1. Disconnect the fuel pressure sensor connector and 2 fuel injector connectors.
      GTY707830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

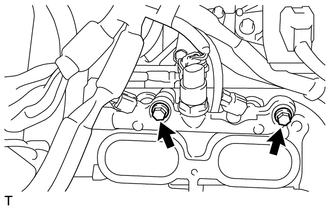

    2. Remove the 2 bolts and the fuel delivery pipe (for Bank 1).
      GTY735590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FUEL PRESSURE SENSOR
    1. Remove the fuel pressure sensor from the fuel delivery pipe (for Bank 1).
      GTY386423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL INJECTOR ASSEMBLY

    See step  6
