Components [06/2016 - ]

Fig 1: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY692722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

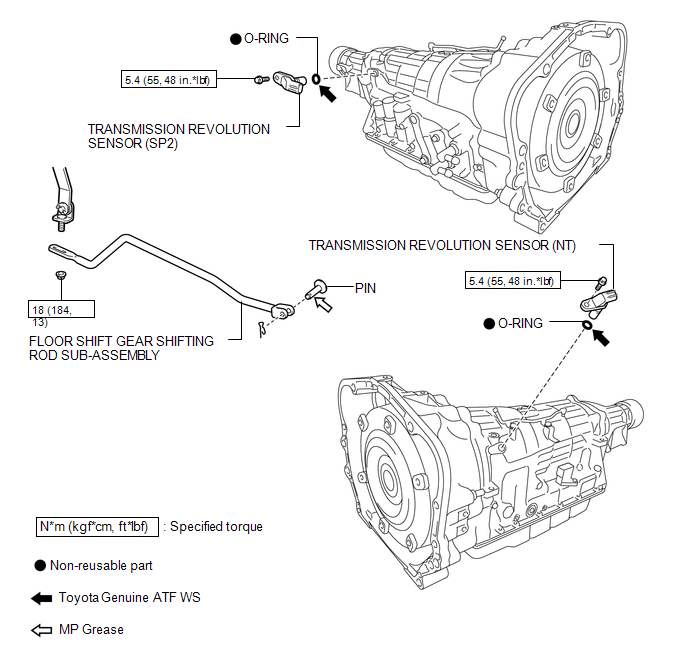

Fig 2: Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY686844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
