- DISCHARGE FUEL SYSTEM PRESSURE
(Refer to PRECAUTION [06/2016 - ]
)
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 1
- REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSEMBLY LH
Refer to PROCEDURE - Step 1
- REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSEMBLY RH
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 REAR FLOOR SERVICE HOLE COVER
See step 5
- REMOVE REAR FLOOR SERVICE HOLE COVER
See step 8
- REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
See step 6
- REMOVE FUEL TANK RETURN TUBE
See step 9
- DRAIN FUEL
- REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
(Refer to REMOVAL [06/2016 - 03/2017]
)
- REMOVE NO. 3 FUEL TANK PROTECTOR
- Remove the nut, 2 clips and No. 3 fuel tank protector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY
Refer to PROCEDURE - Step 10

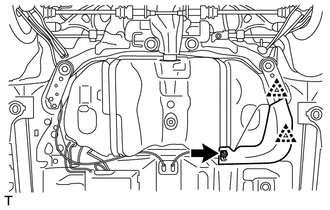

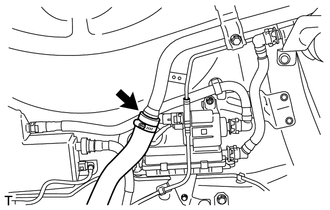

- DISCONNECT FUEL TANK TO FILLER PIPE HOSE
- Loosen the hose clamp bolt and disconnect the fuel tank to filler pipe hose.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

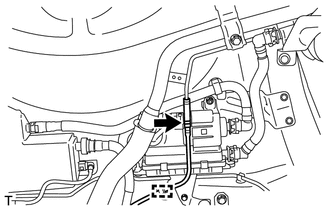

- DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
- Remove the clamp and disconnect the fuel tank vent hose sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the clamp and separate the tube.

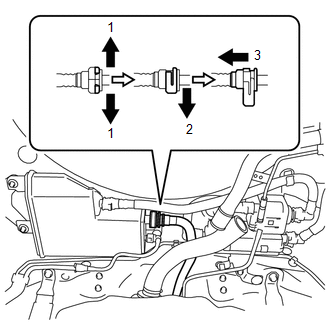

- SEPARATE CHARCOAL CANISTER ASSEMBLY
- Disconnect the quick connector as indicated by the arrows in the order shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

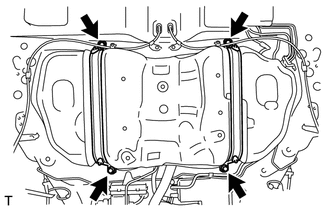

- REMOVE FUEL TANK ASSEMBLY
- Place an engine lifter under the fuel tank assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 bolts, 2 No. 1 fuel tank bands and fuel tank assembly.
- REMOVE FUEL TANK TO FILLER PIPE HOSE
- Loosen the hose clamp bolt and remove the fuel tank to filler pipe hose from the fuel tank.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Remove the No. 2 fuel tank main tube sub-assembly from the fuel tank assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the fuel filter from the No. 2 fuel tank main tube sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 FUEL TANK CUSHION
- Remove the 10 No. 1 fuel tank cushions shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
