System Diagrams

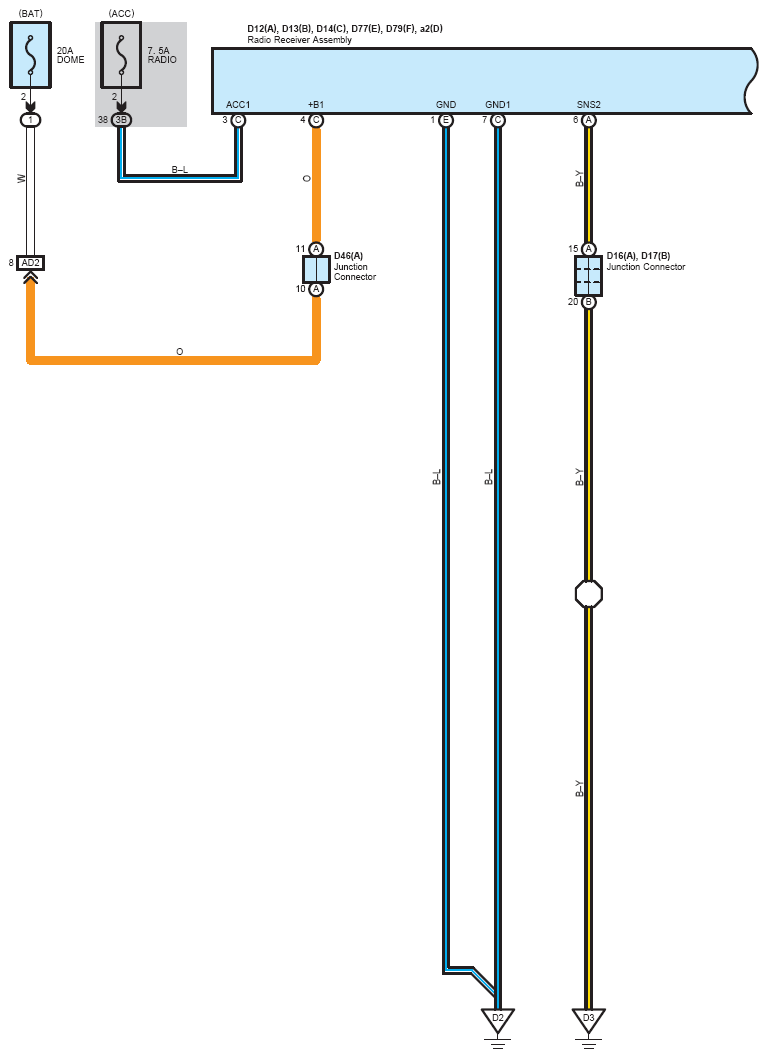

Fig 1: Audio System, Parking Assist (Rear View Monitor) (1 Of 8)
G12191840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Audio System, Parking Assist (Rear View Monitor) (2 Of 8)
G12191841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

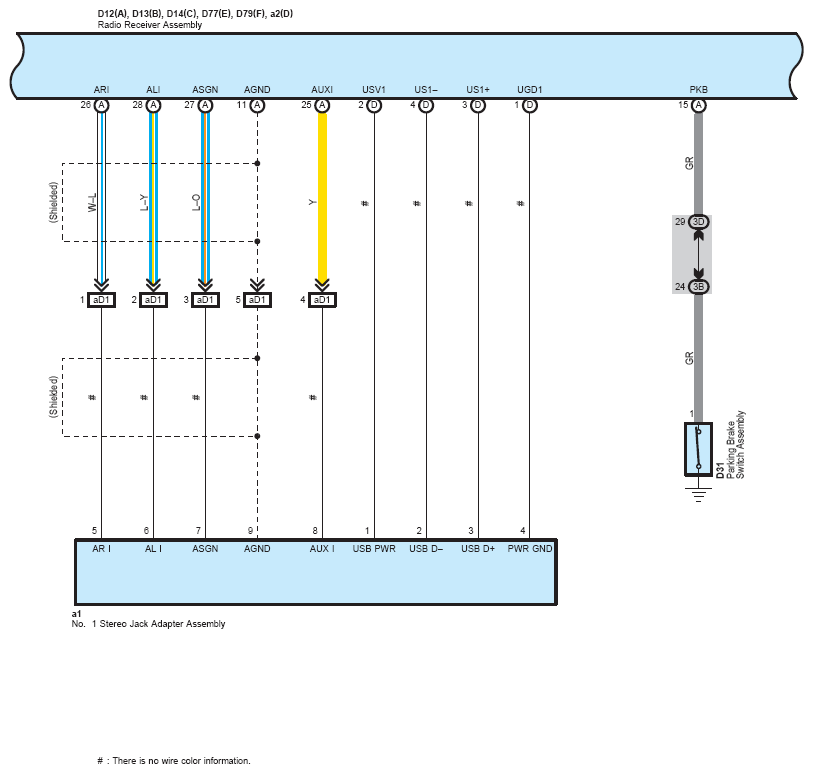

Fig 3: Audio System, Parking Assist (Rear View Monitor) (3 Of 8)
G12191842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

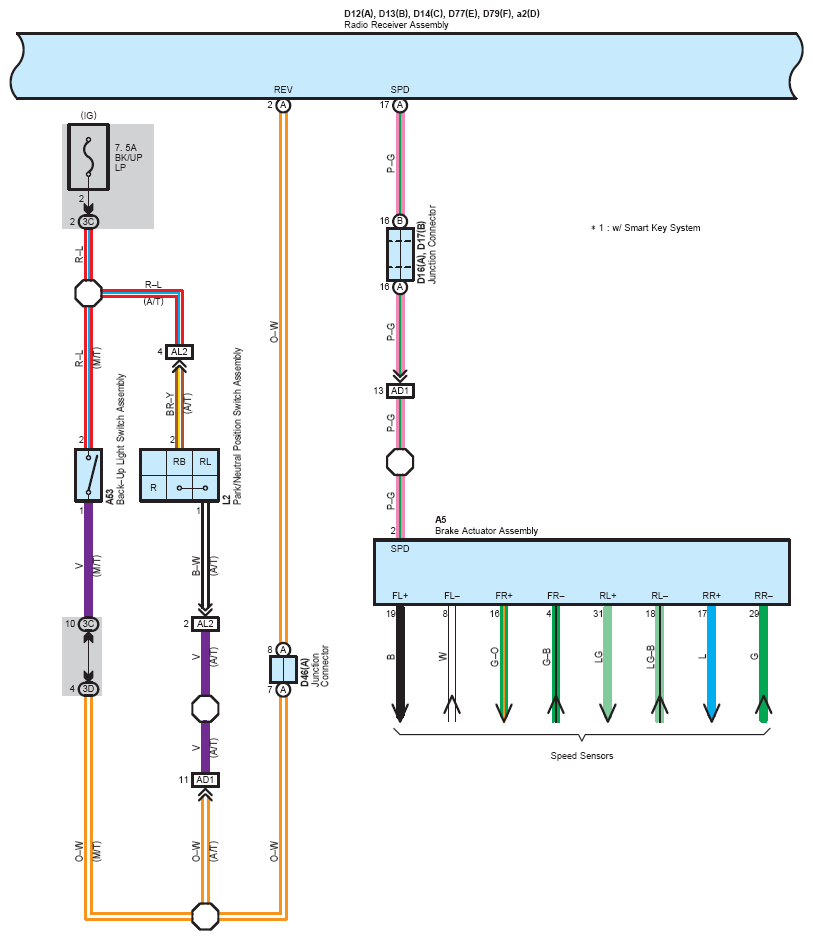

Fig 4: Audio System, Parking Assist (Rear View Monitor) (4 Of 8)
G12191843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Audio System, Parking Assist (Rear View Monitor) (5 Of 8)
G12191844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

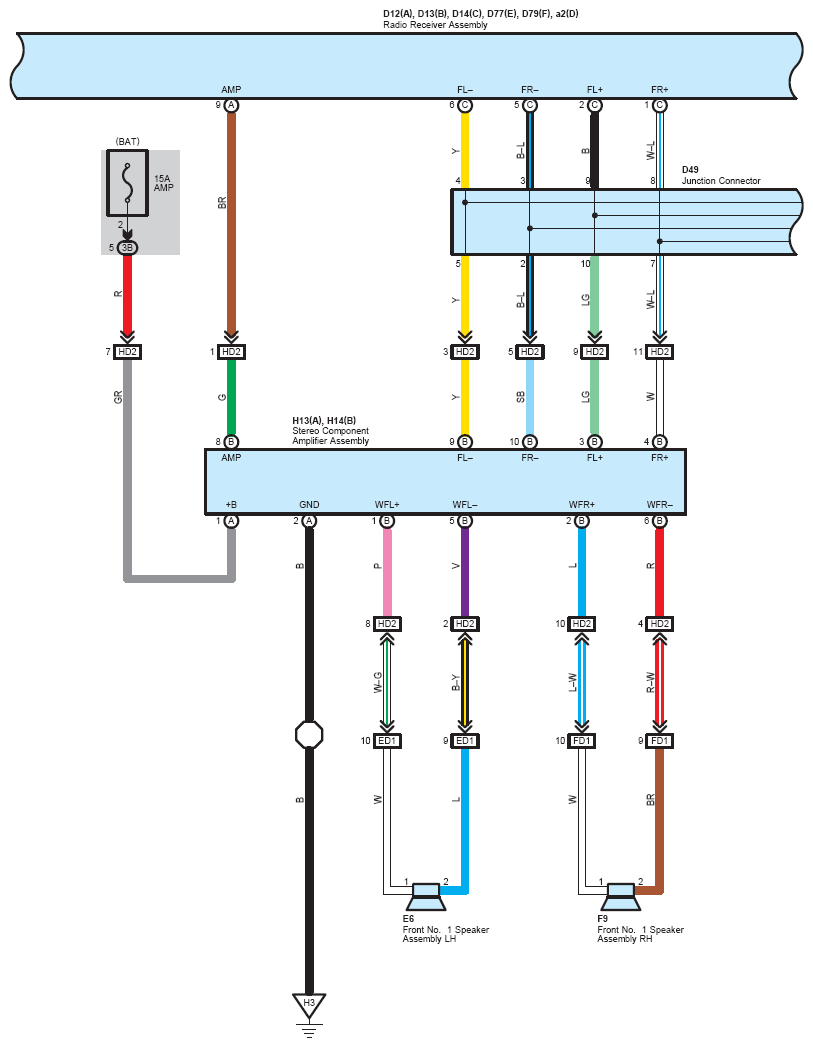

Fig 6: Audio System, Parking Assist (Rear View Monitor) (6 Of 8)
G12191845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

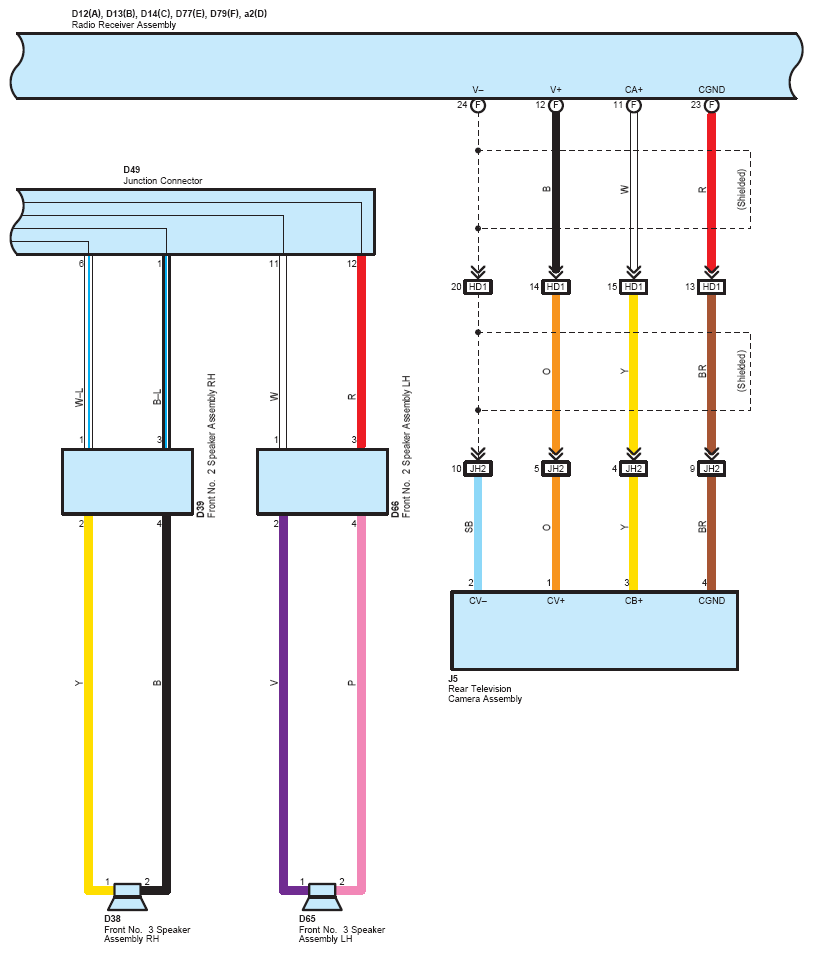

Fig 7: Audio System, Parking Assist (Rear View Monitor) (7 Of 8)
G12191846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Audio System, Parking Assist (Rear View Monitor) (8 Of 8)
G12191847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
