Audio System, Parking Assist (Rear View Monitor): Connectors

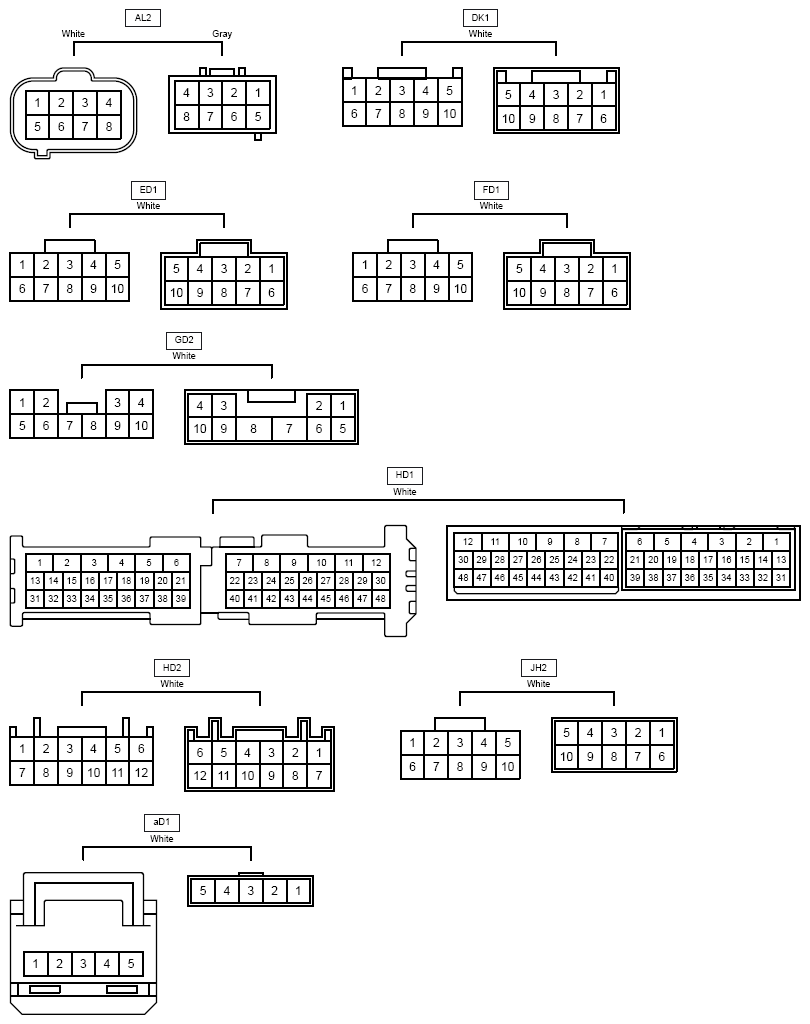

Fig 1: Connectors (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

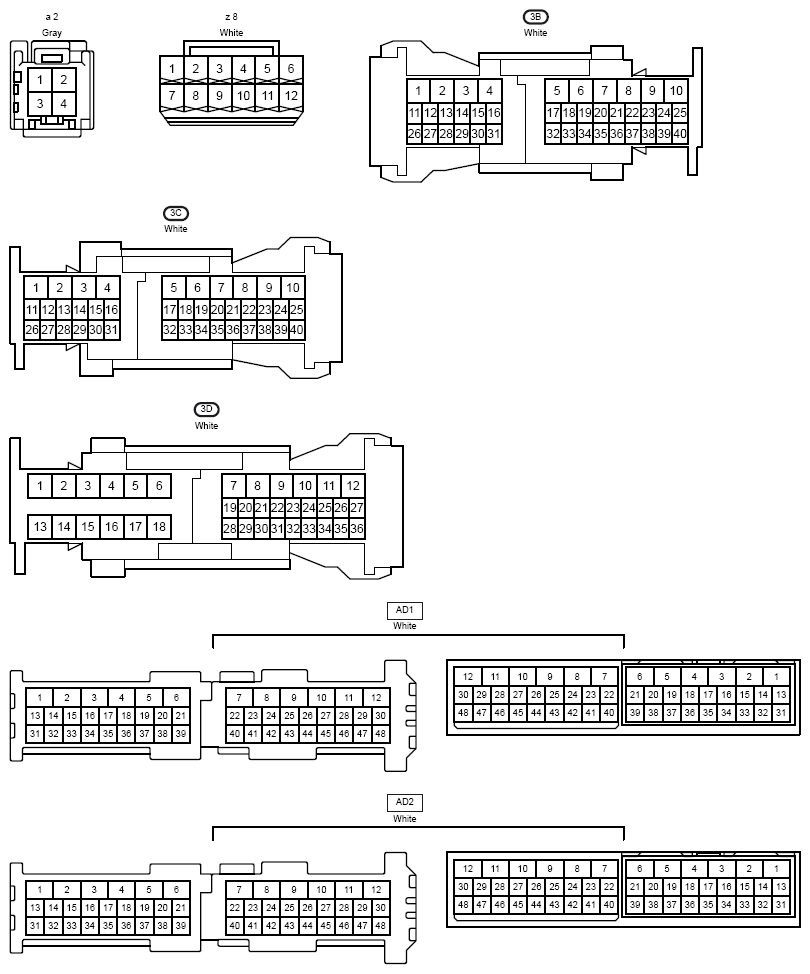

Fig 2: Connectors (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

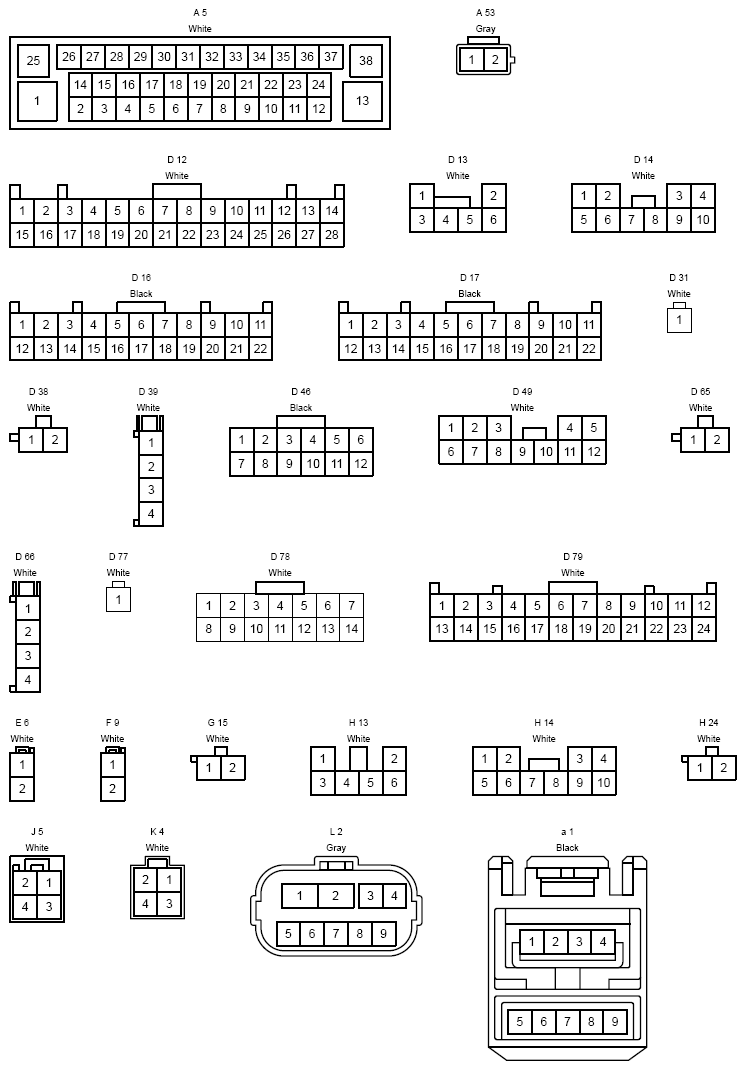

Fig 3: Connectors (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
