System Diagrams

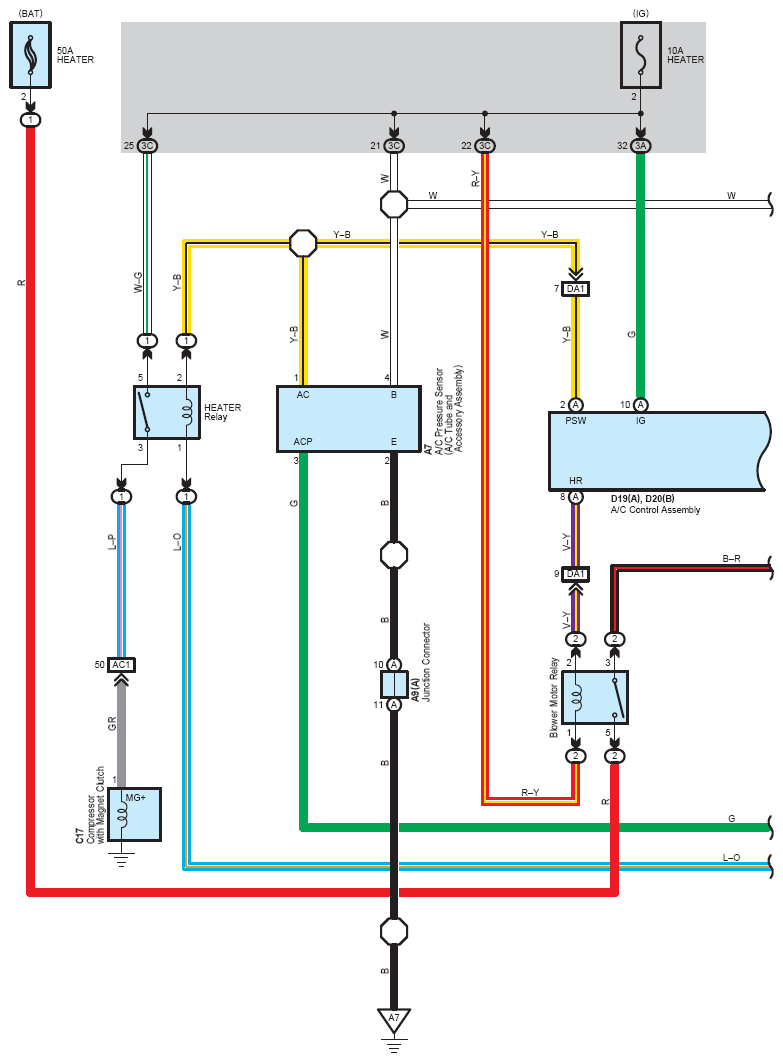

Fig 1: Air Conditioning (Automatic A/C) (1 Of 10)
G12191803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

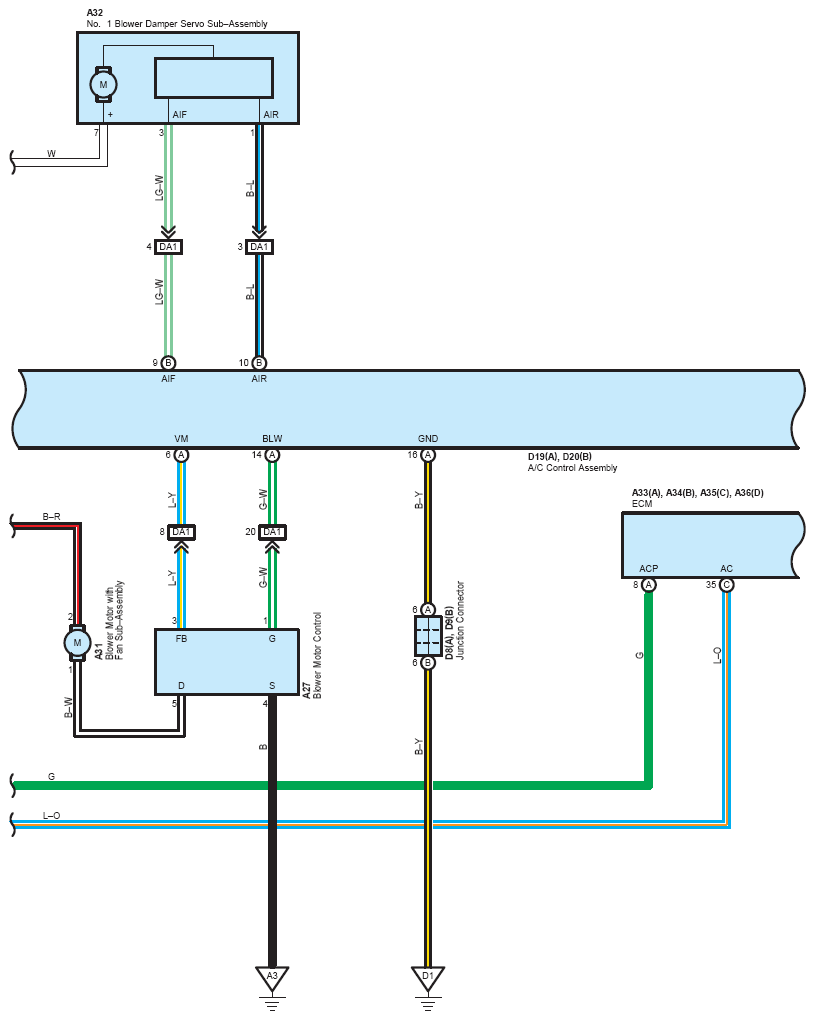

Fig 2: Air Conditioning (Automatic A/C) (2 Of 10)
G12191804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

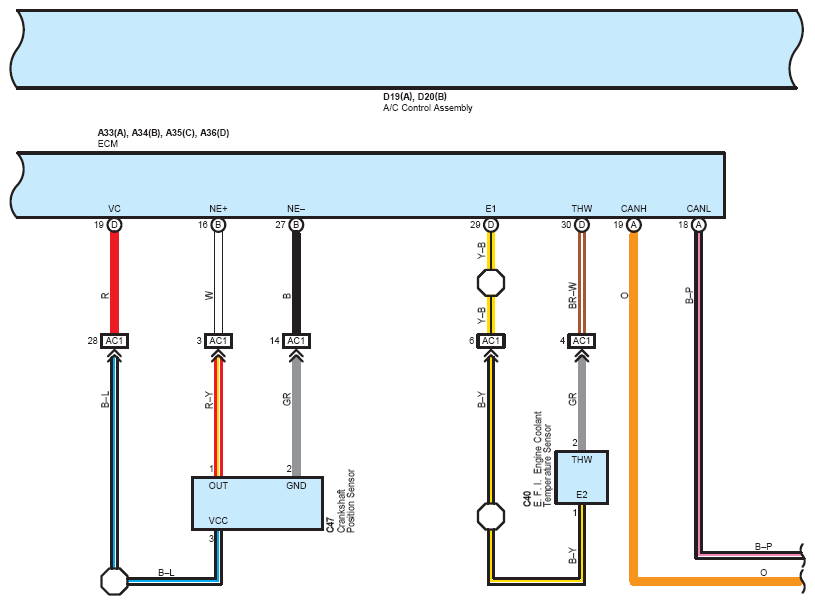

Fig 3: Air Conditioning (Automatic A/C) (3 Of 10)
G12191805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

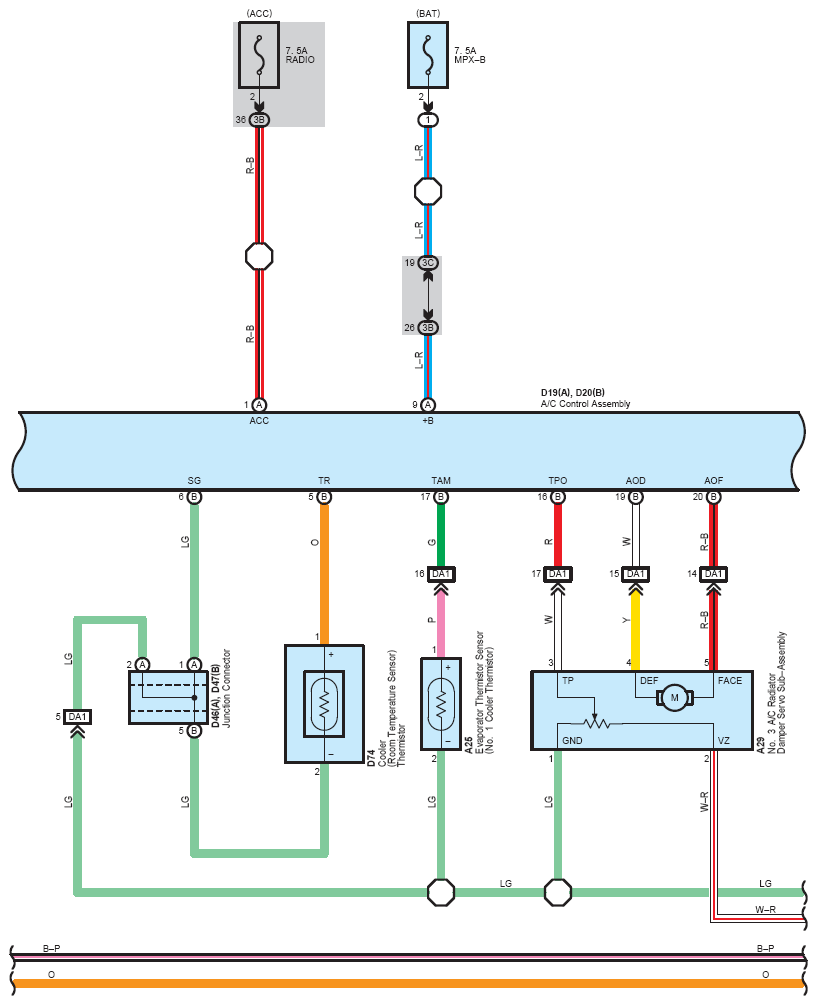

Fig 4: Air Conditioning (Automatic A/C) (4 Of 10)
G12191806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

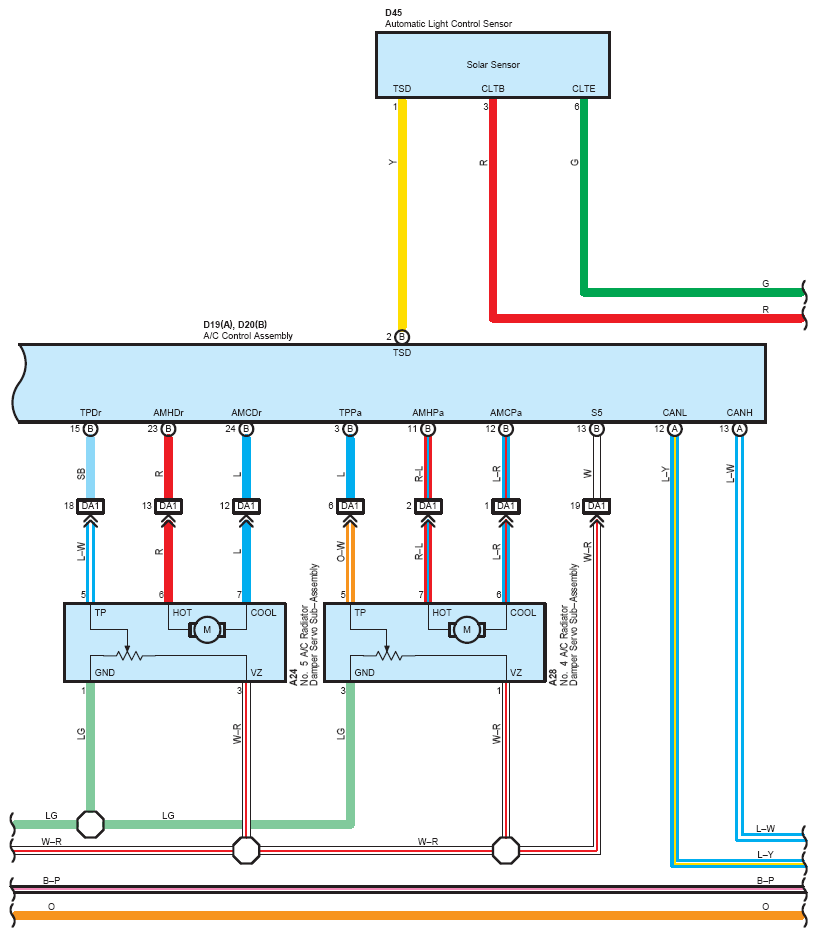

Fig 5: Air Conditioning (Automatic A/C) (5 Of 10)
G12191807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

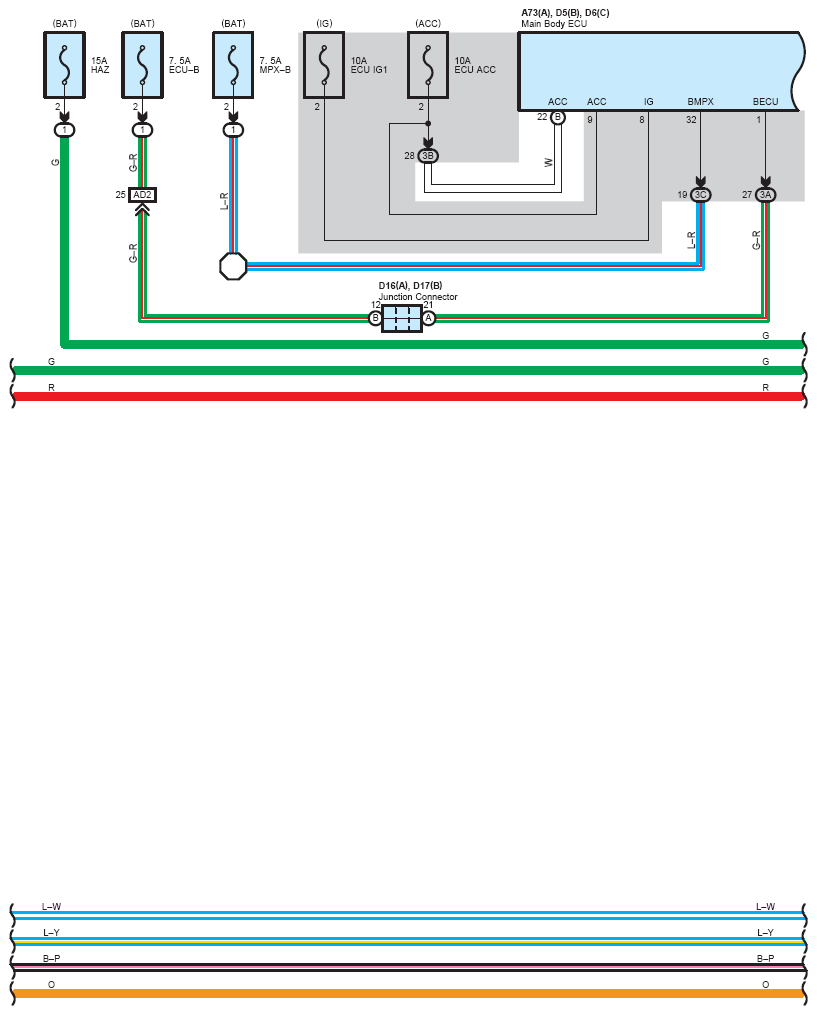

Fig 6: Air Conditioning (Automatic A/C) (6 Of 10)
G12191808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

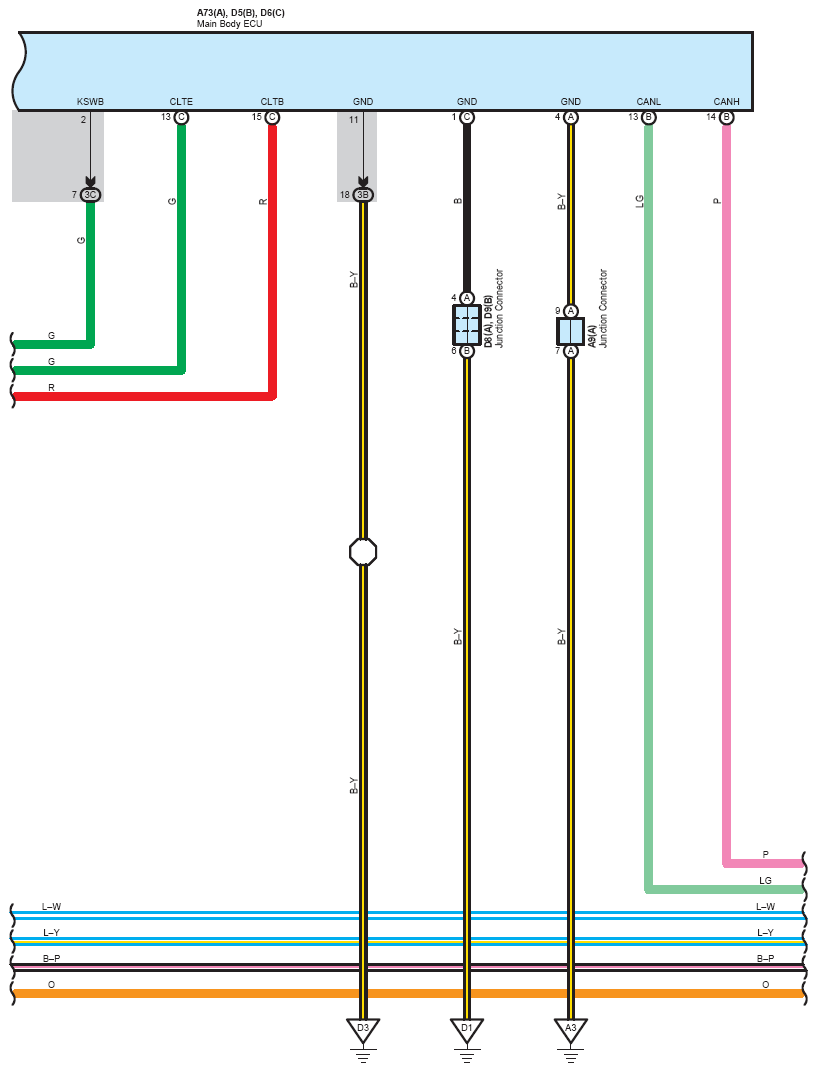

Fig 7: Air Conditioning (Automatic A/C) (7 Of 10)
G12191809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

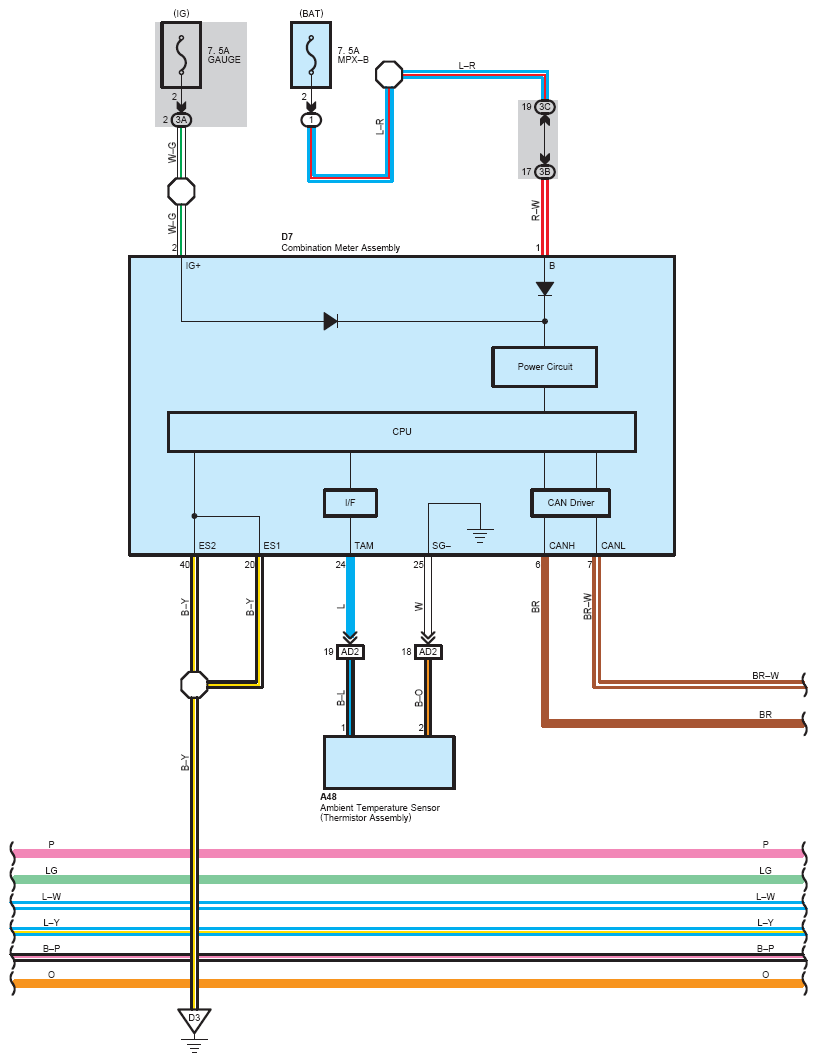

Fig 8: Air Conditioning (Automatic A/C) (8 Of 10)
G12191810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Air Conditioning (Automatic A/C) (9 Of 10)
G12191811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Air Conditioning (Automatic A/C) (10 Of 10)
G12191812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
