Components [06/2016 - ]

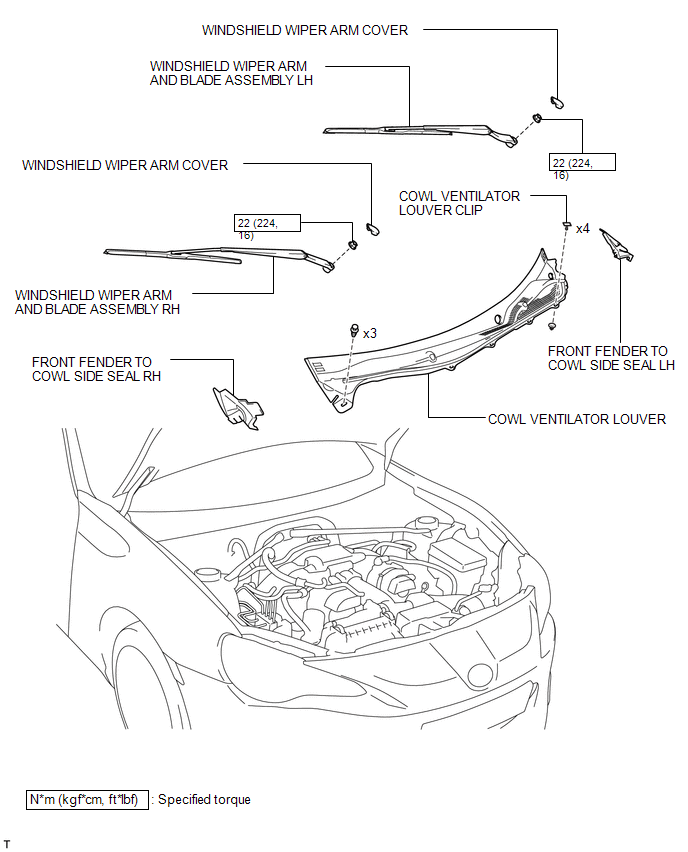

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 2)
GTY740079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

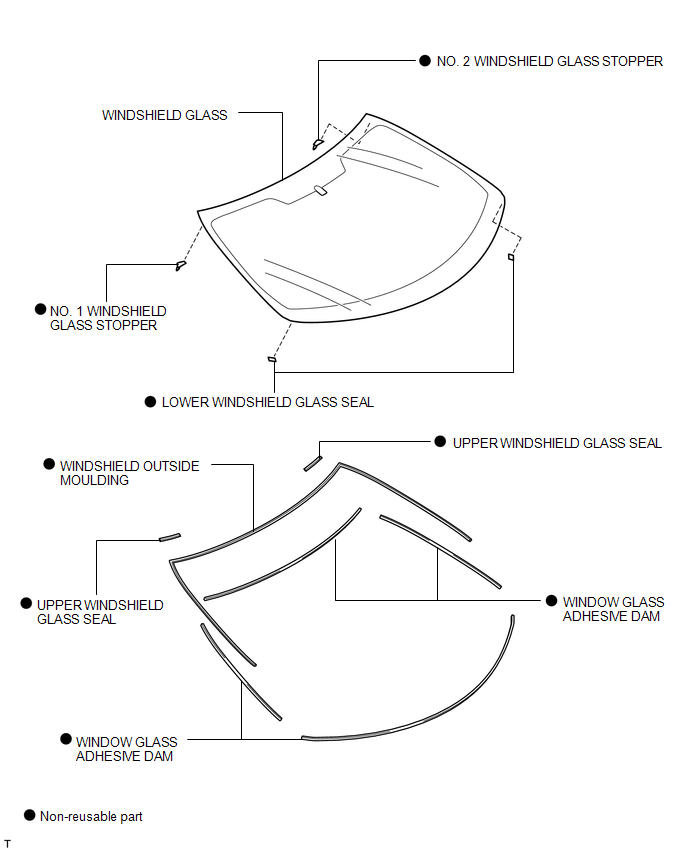

Fig 2: Windshield Glass Replacement Components (2 Of 2)
GTY730048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
