Components [06/2016 - ]

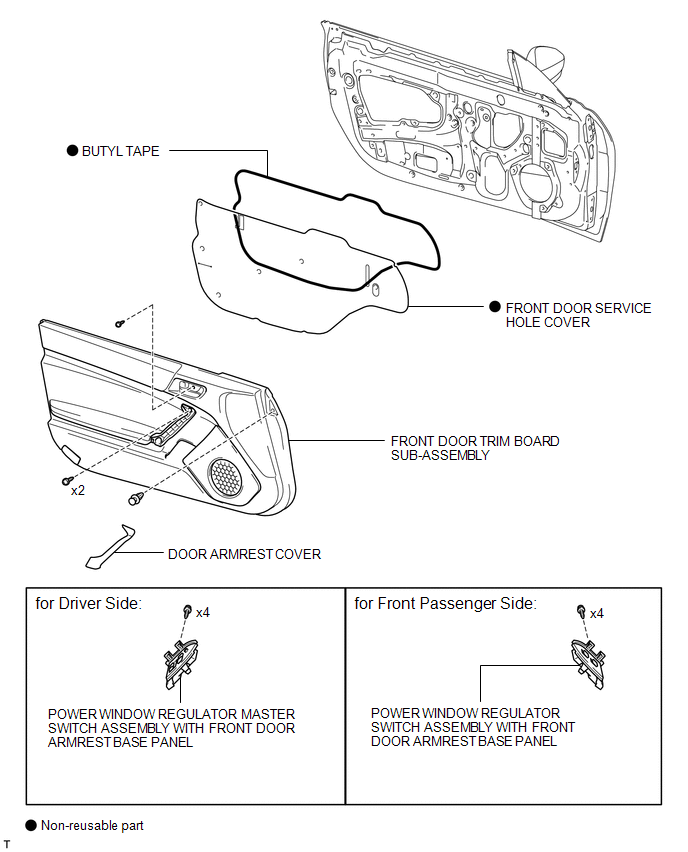

Fig 1: Power Window Regulator Motor Replacement Components (1 Of 2)
GTY716509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

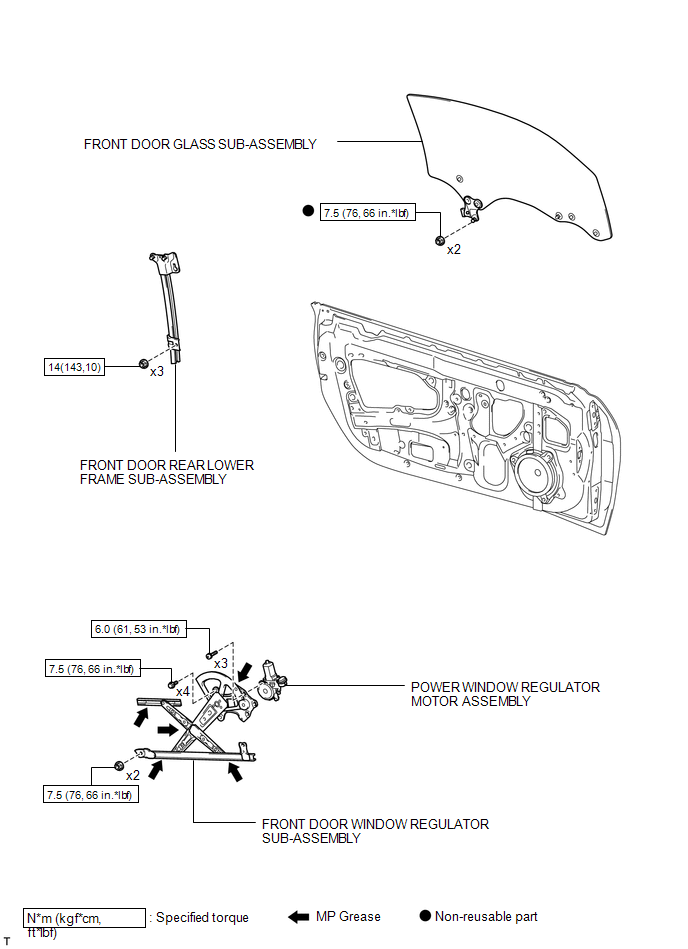

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)
GTY738165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
