Components [06/2016 - ]

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 3)
GTY694964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

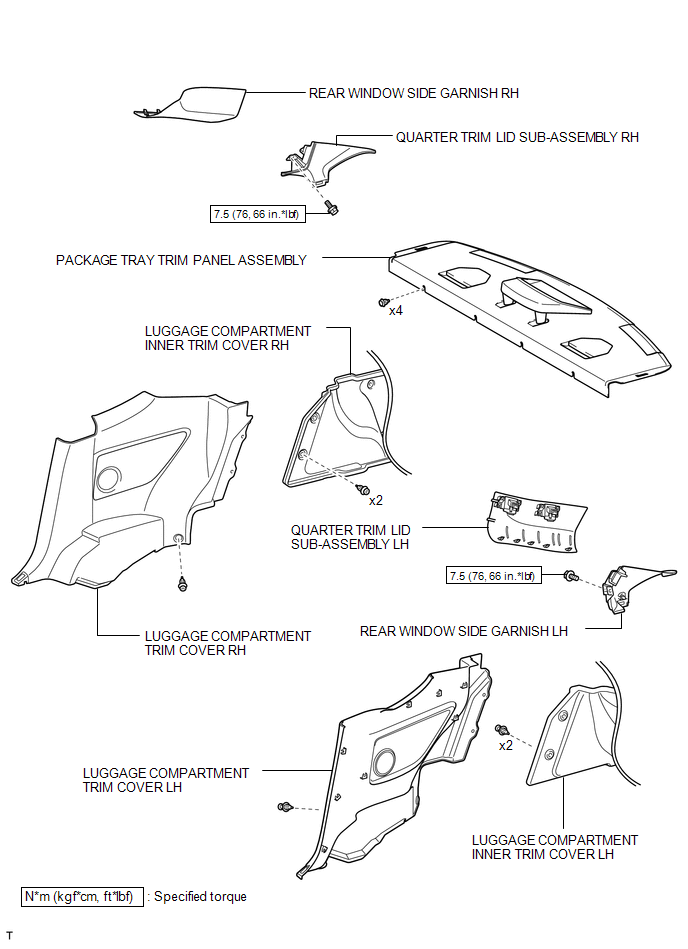

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 3)
GTY697561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

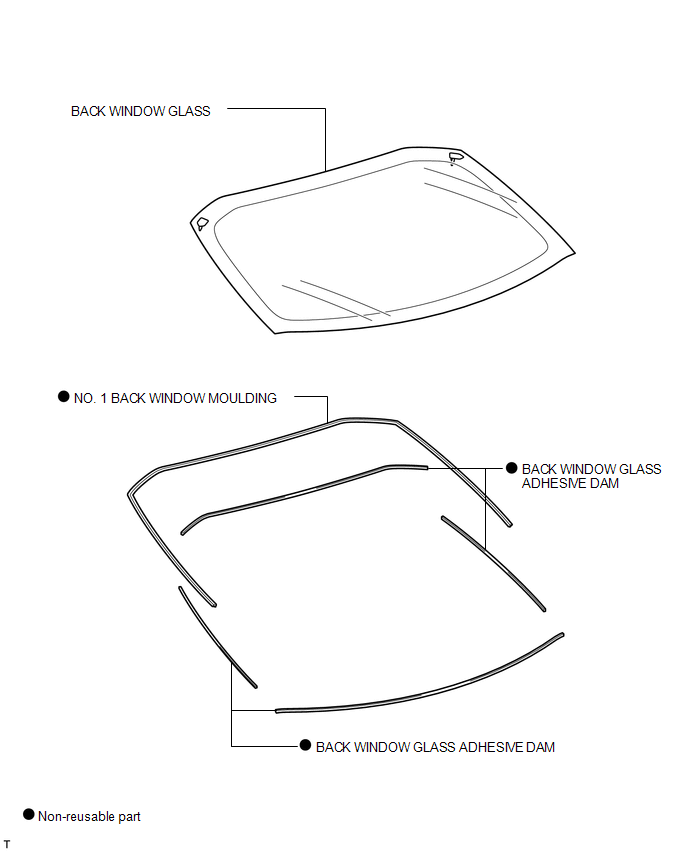

Fig 3: Back Window Glass Replacement Components (3 Of 3)
GTY725204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
