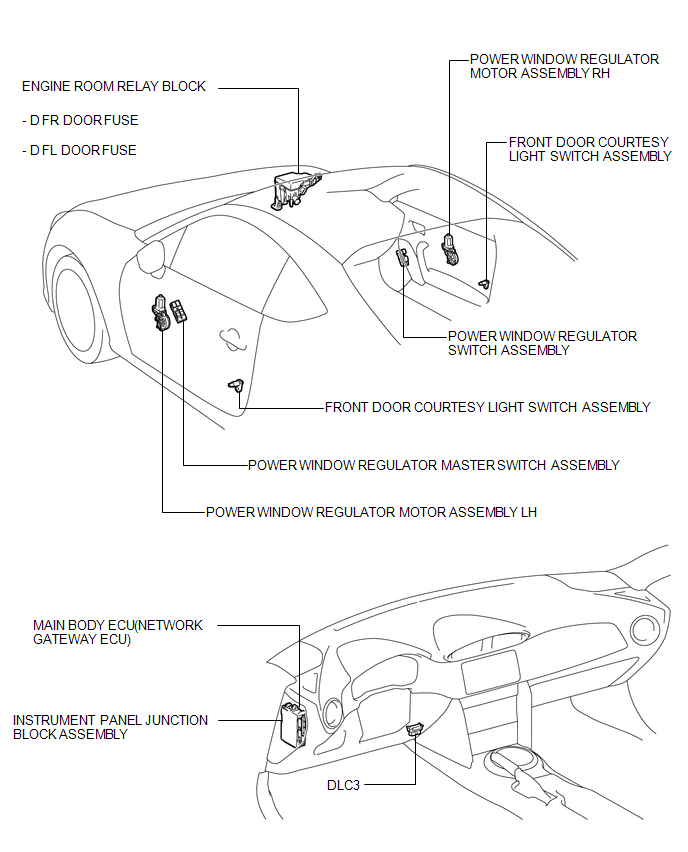

Parts Location [06/2016 - ]: Illustration

GTY723758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
