On-Vehicle Inspection [08/2015 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

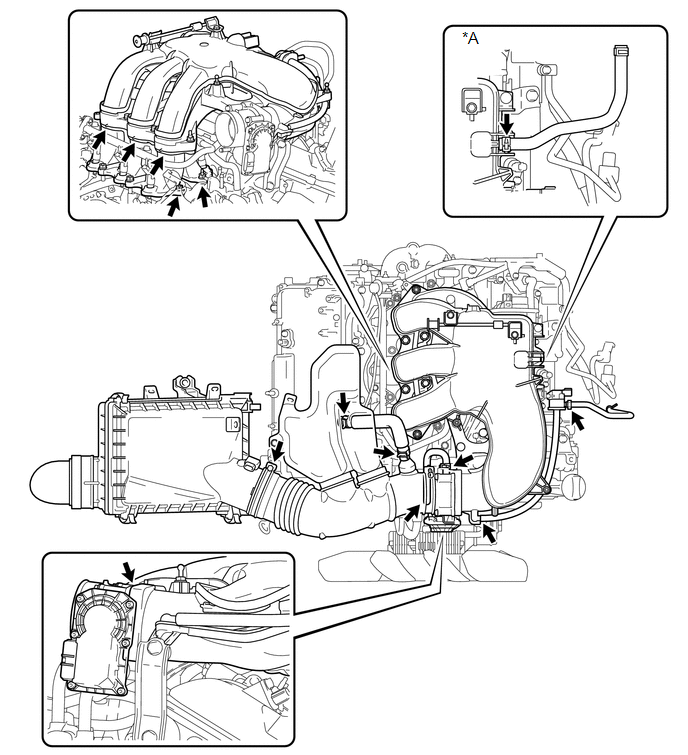

    1. Check that there is no air suction at the points shown in the illustration.
      GTY592541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for 2WD - -
