System Diagrams

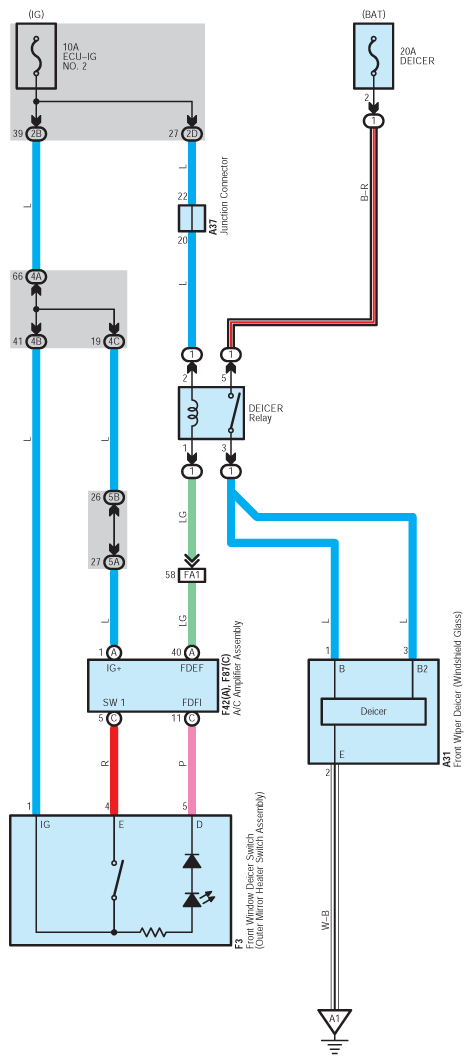

Fig 1: Front Window Deicer

G12198420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
