Parts Location [08/2022 - ]: Illustration

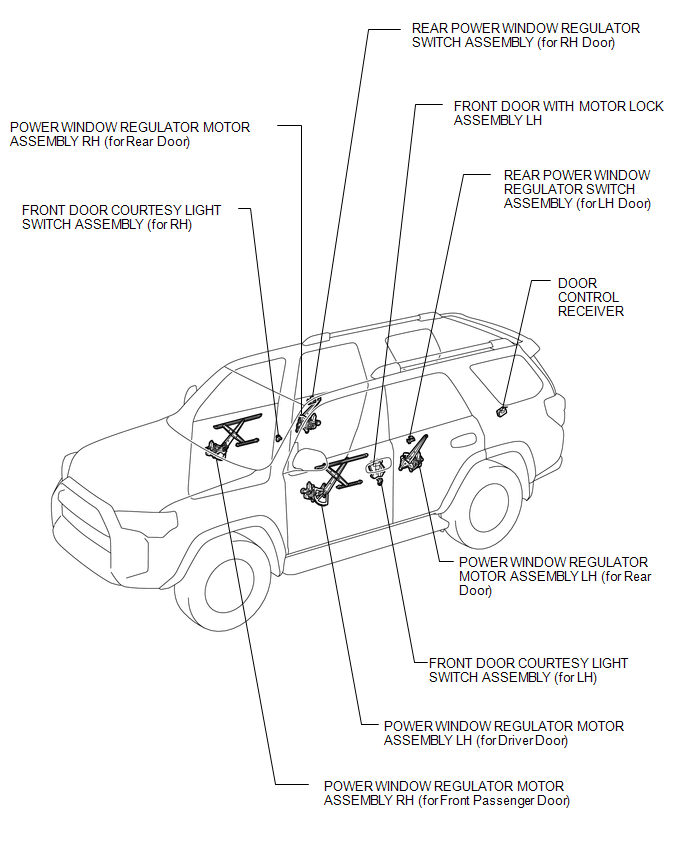

Fig 1: Power Window Control System Components Location (1 Of 3) [08/2022 - ]
GTY884359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

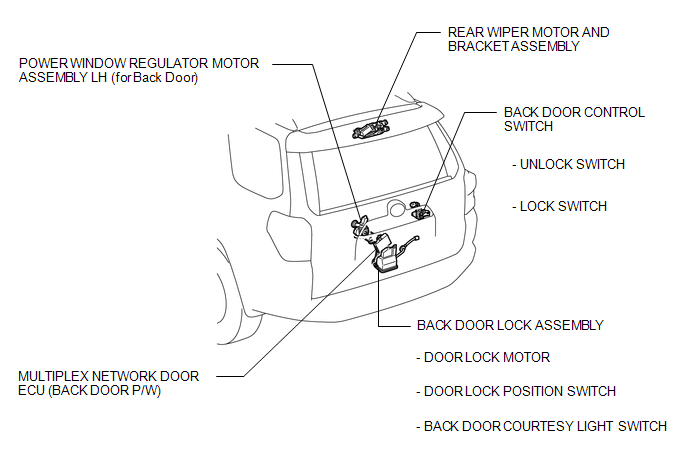

Fig 1: Power Window Control System Components Location (2 Of 3) [08/2022 - ]
GTY1094263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

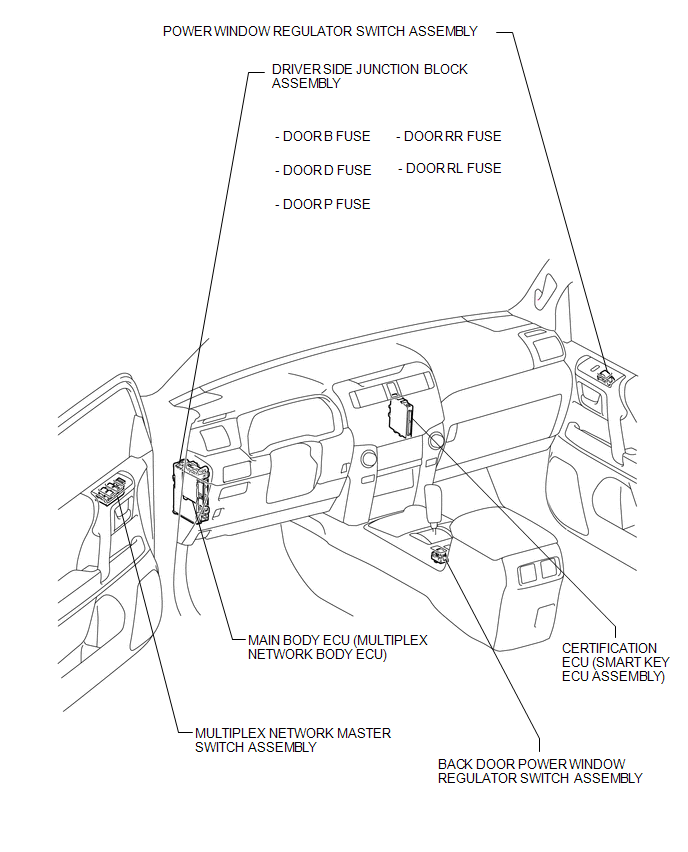

Fig 1: Power Window Control System Components Location (3 Of 3) [08/2022 - ]
GTY1097035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
