Parts Location [08/2015 - 08/2019]: Illustration

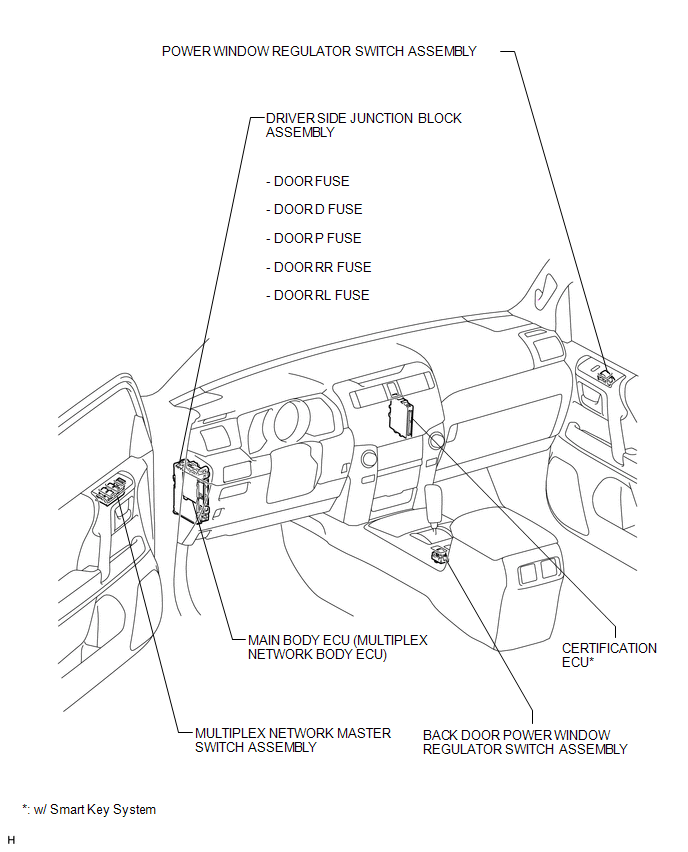

Fig 1: Power Window Control System Components Location (1 Of 3) [08/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

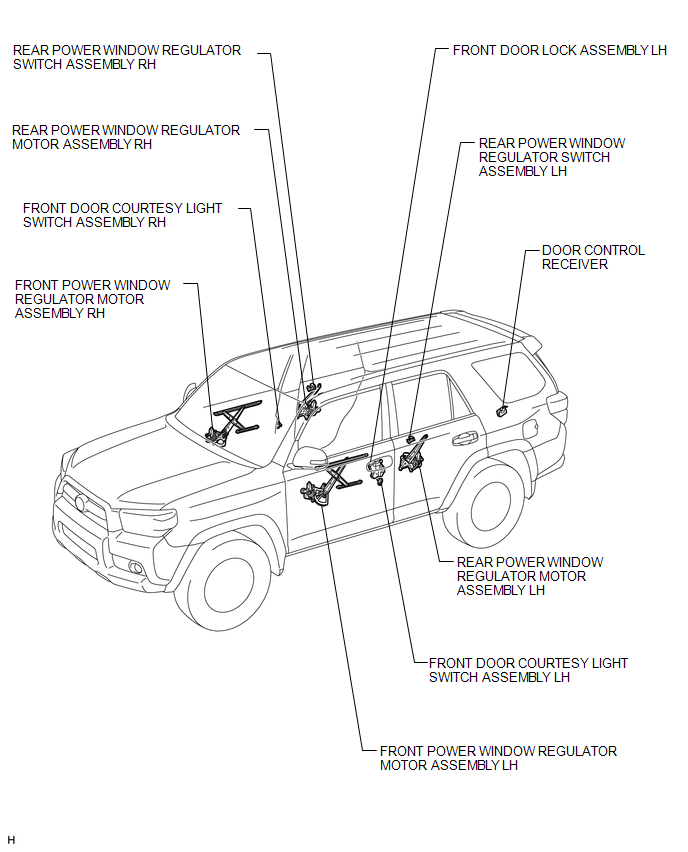

Fig 1: Power Window Control System Replacement Components (2 Of 3) [08/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Power Window Control System Components Location (3 Of 3) [08/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
