Installation [12/2012 - 08/2016]: Procedure
- INSTALL FRONT SPEED SENSOR LH NOTE:
To prevent interference with other parts, do not twist the painted line areas of the sensor wire when installing it.
- Set the sensor into the knuckle, and then install the sensor with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:- Keep the sensor tip and sensor installation hole free from foreign matter.
- Firmly insert the sensor body into the knuckle before tightening the bolt.
- After installing the sensor to the knuckle, make sure that there is no clearance between the sensor stay and knuckle. Also, make sure that no foreign matter is stuck between the parts.
- To prevent interference between the sensor and magnetic rotor, do not rotate the sensor body during or after the insertion of the sensor body to the knuckle.
- Install the sensor clamp and sensor clip as follows.

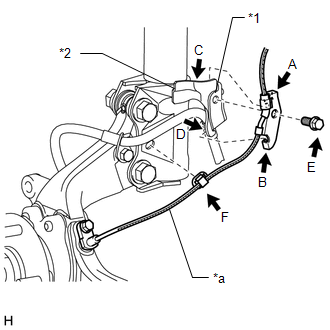

*1 Flexible Hose Clamp *2 Flexible Hose Bracket *a Painted Line - Simultaneously perform the following: 1) hang the hook part of the sensor clamp labeled A on the part of the flexible hose bracket labeled C; and 2) insert the hook part of the sensor clamp labeled B to the part of the flexible hose bracket labeled D.NOTE:
Do not twist the sensor wire when installing the clamp.
- Install the sensor clamp to the flexible hose clamp and flexible hose bracket with the bolt labeled E.
Torque: 18.5 N*m (189 kgf*cm, 14 ft.*lbf)
- Insert the sensor clip labeled F into the hole on the absorber lower bracket.
- Simultaneously perform the following: 1) hang the hook part of the sensor clamp labeled A on the part of the flexible hose bracket labeled C; and 2) insert the hook part of the sensor clamp labeled B to the part of the flexible hose bracket labeled D.
- Install the sensor clamp and sensor clip as follows.
- Set the sensor clamp on the side member, and then install the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the sensor wire when installing the clamp.
- Insert the sensor clip into the hole on the apron.
- Set the sensor clamp on the side member, and then install the bolt.
- Connect the sensor connector.
- Set the sensor into the knuckle, and then install the sensor with the bolt.
- INSTALL FRONT FENDER LINER LH
HINT:
Install the fender liner so that the sensor wire harness passes beyond the fender liner installation clip towards the rear side of the vehicle.
- INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- CHECK SPEED SENSOR SIGNAL
Refer to TEST MODE PROCEDURE [12/2012 - 10/2015] , or refer to TEST MODE PROCEDURE [10/2015 - 08/2016]
