Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Toyota
>>
2015
>>
Sienna LE, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Remove, Overhaul & Install
>>
Engine Control System (Service Information)
>>
Active Control Engine Mount
>>
Components [08/2014 - ]
>>
Illustration
Components [08/2014 - ]: Illustration

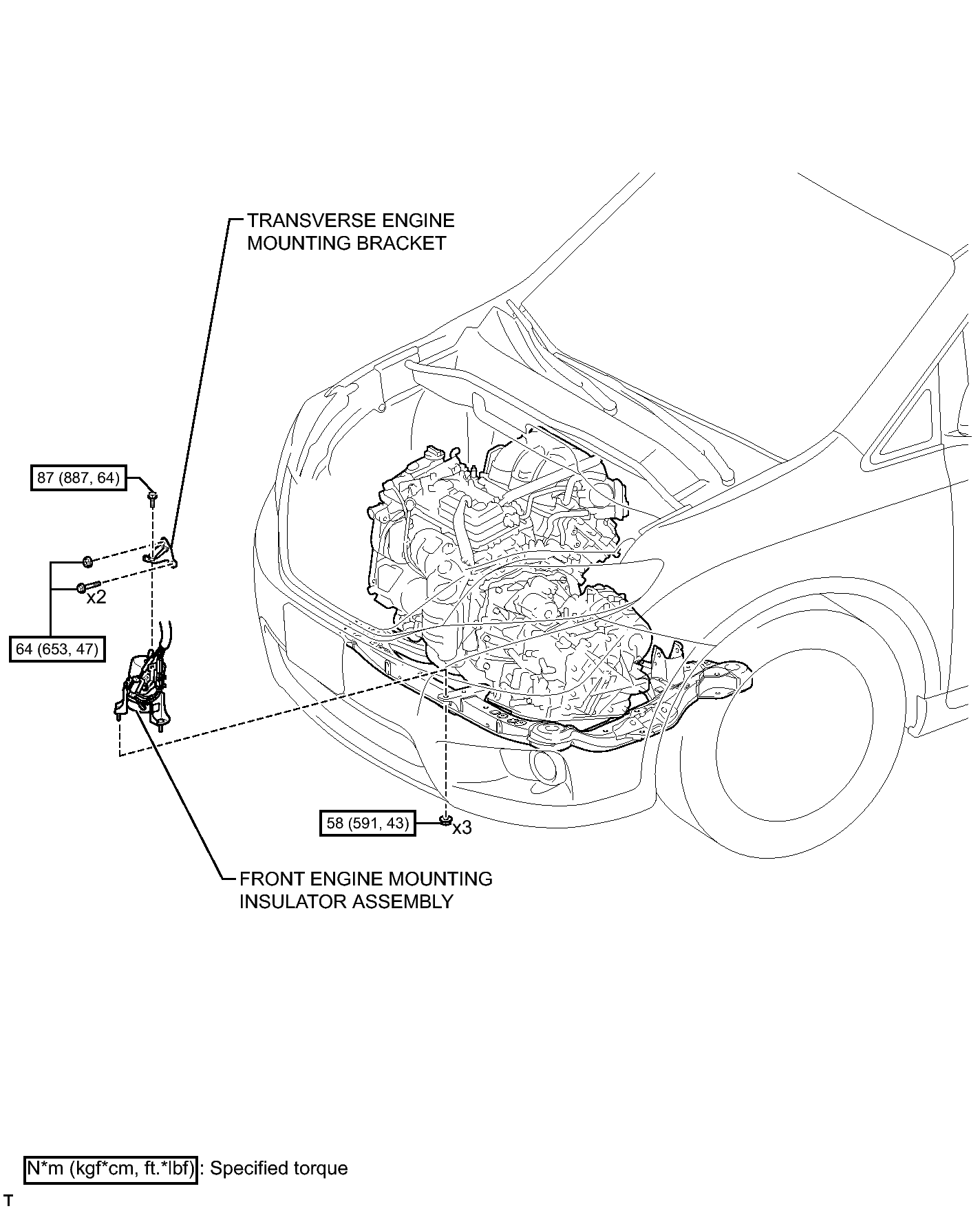

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
