System Diagram

WARNING: This page is about a different car, the 2013 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

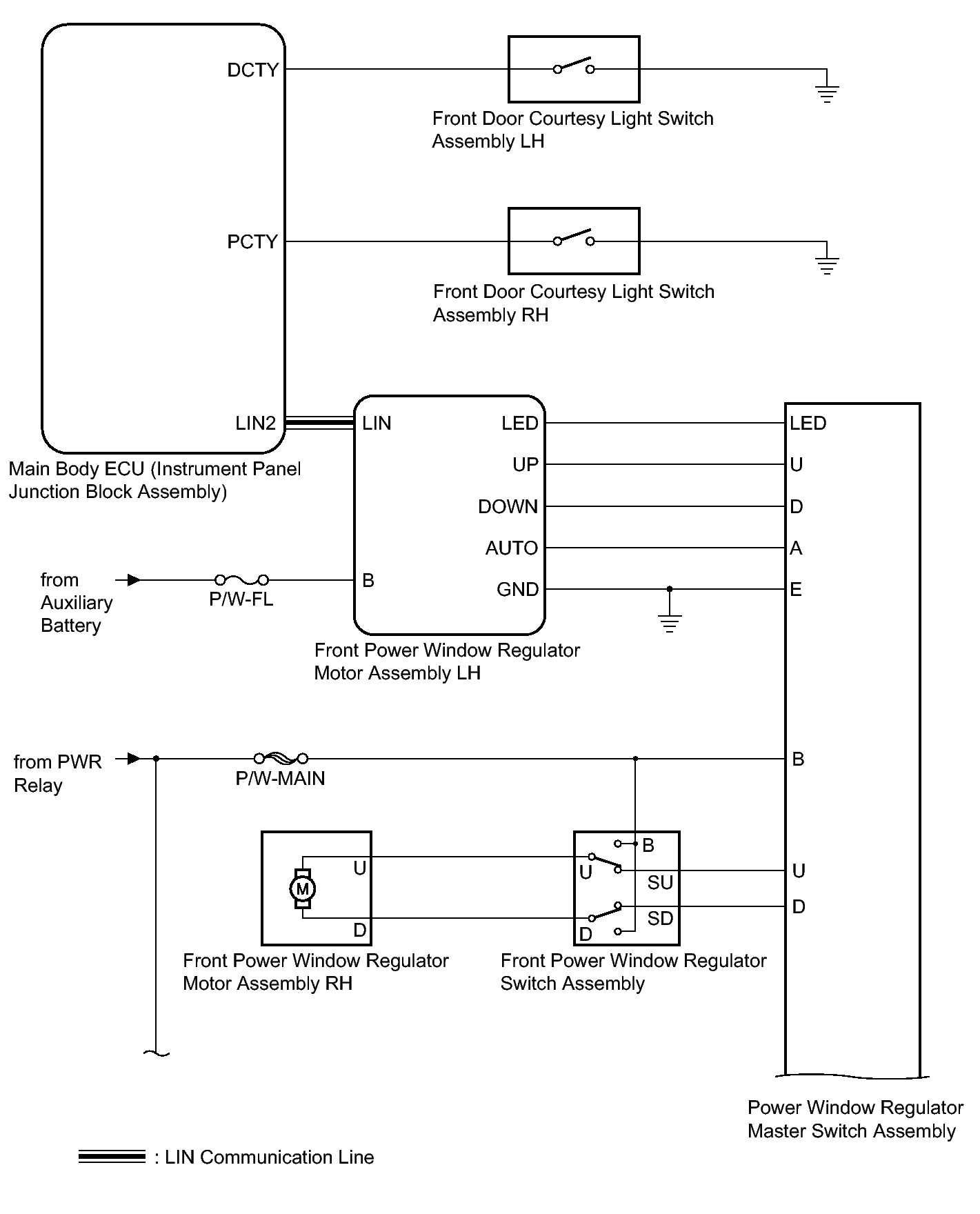

Fig 1: Power Window Control System Circuit Diagram (1 Of 2)
GTY369513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

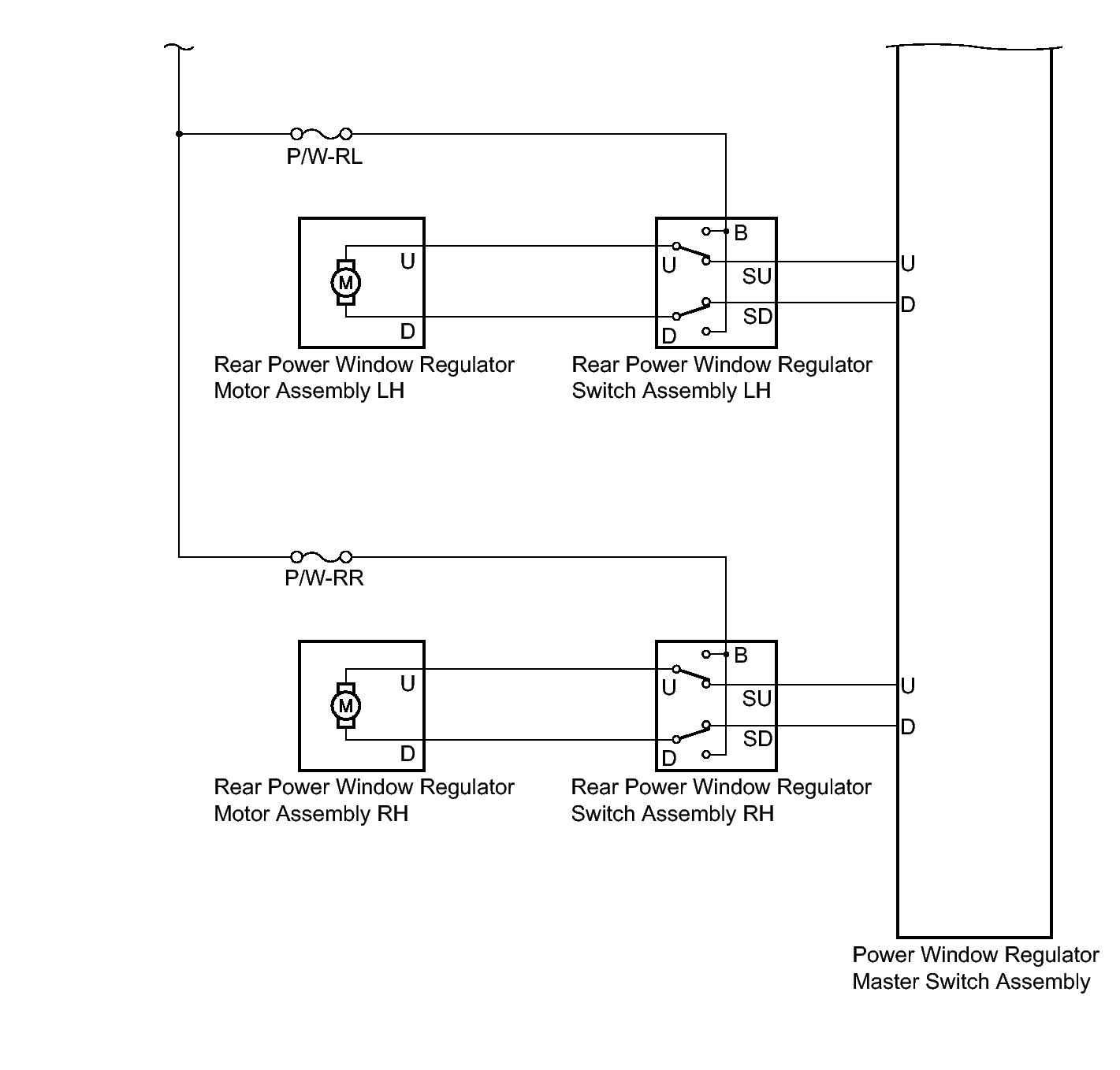

Fig 2: Power Window Control System Circuit Diagram (2 Of 2)
GTY379999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Main body ECU (instrument panel junction block assembly) Front power window regulator motor assembly LH Power window operation permission signal LIN
