Back Door Entry Lock Function does not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2013 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

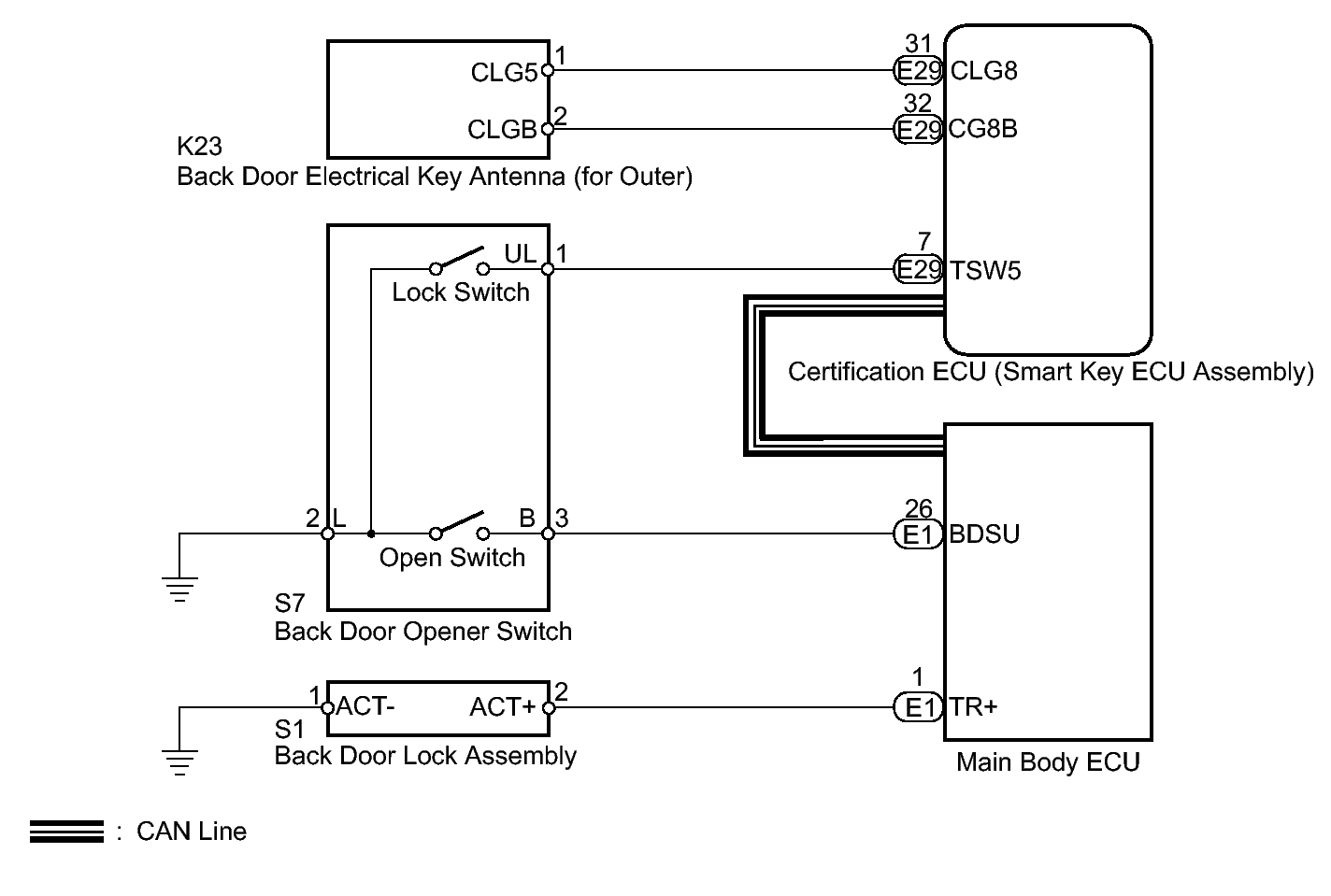

Fig 1: Back Door Entry Lock Wiring Diagram
GTY372530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
