Navigation Receiver: Components: Illustration

WARNING: This page is about a different car, the 2013 Toyota Prius V. However, it is still accessible from the selected car via links, so may be relevant.

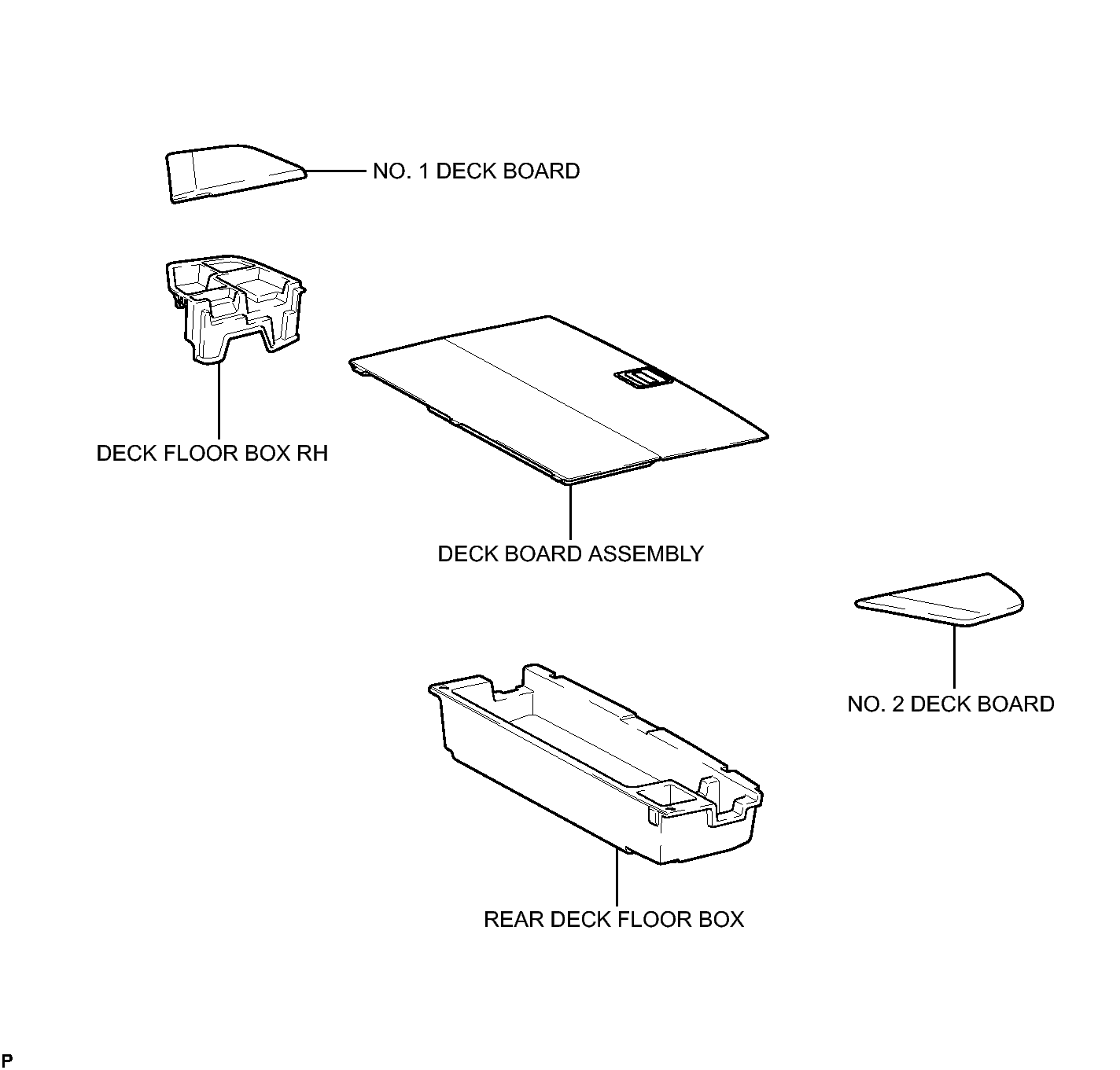

Fig 1: Identifying Navigation Receiver Replacement Components (1 Of 2)
GTY342380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

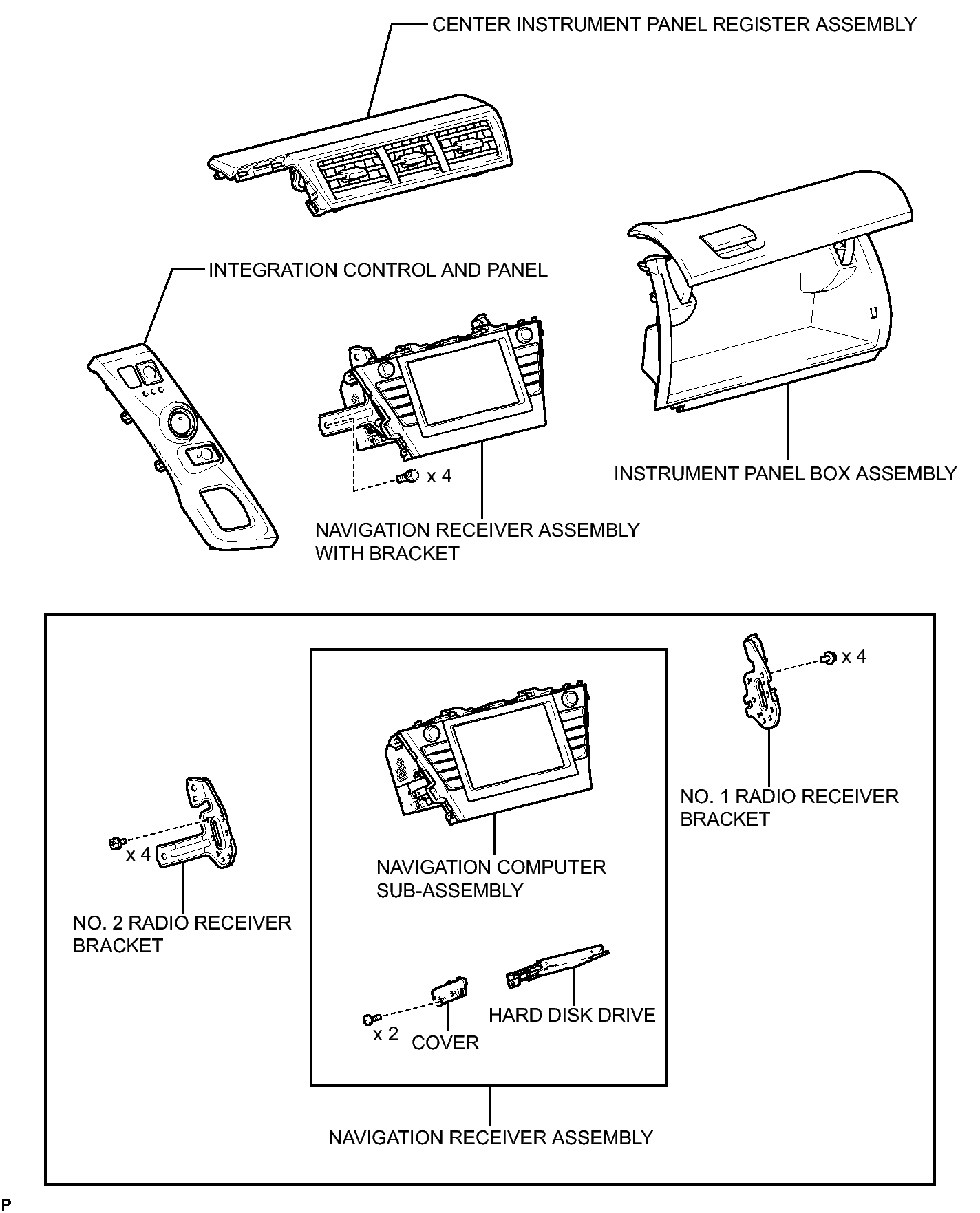

Fig 1: Identifying Navigation Receiver Replacement Components (2 Of 2)
GTY330237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
