MASS AIR FLOW METER (for Hatchback): Removal: Removal

  1. REMOVE MASS AIR FLOW METER
    1. Disengage the wire harness clamp.

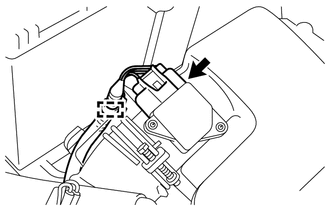

      Fig 1: Identifying Wire Harness Clamp & Mass Air Flow Meter Connector
      GTY341673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector of the mass air flow meter.
    3. Remove the 2 screws and the mass air flow meter.
    4. Remove the O-ring.
      Fig 2: Identifying Mass Air Flow Meter O-Ring
      GTY235486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
