ACCELERATOR PEDAL (for Sedan): Components: Illustration

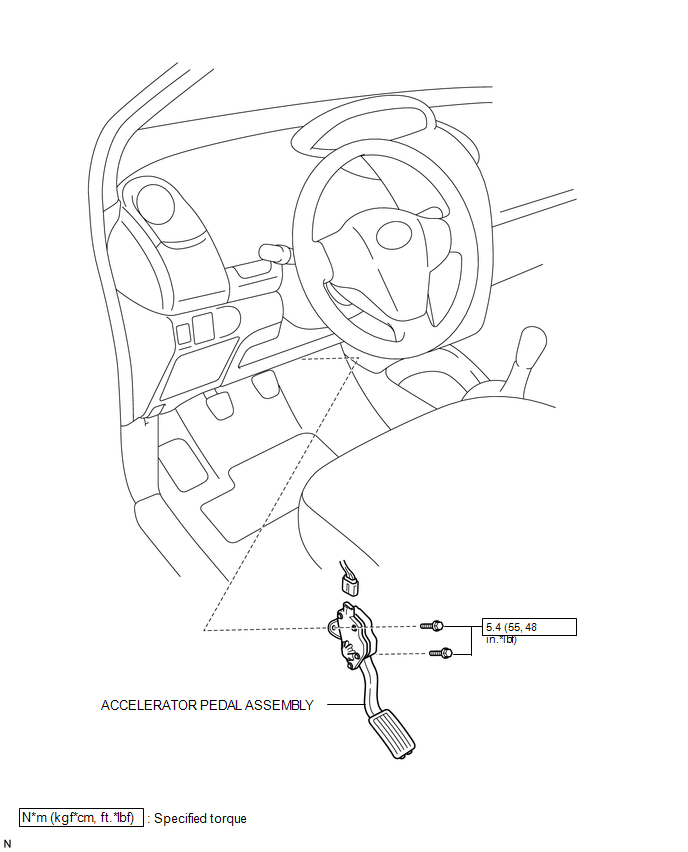

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications (For Sedan)
GTY365708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
