Toyota
>>
2013
>>
Yaris SE, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Data Link Connector 3 (S/D)
>>
Notes
Data Link Connector 3 (S/D): Notes

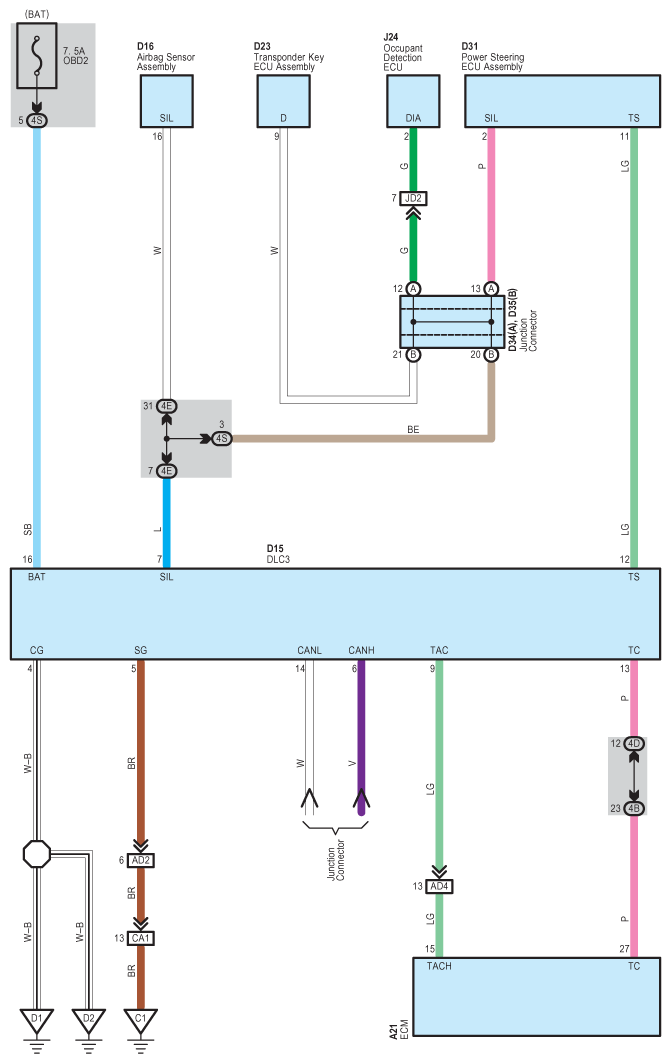

Fig 1: Data Link Connector 3 (S/D) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
