HEATED OXYGEN SENSOR (for Hatchback): Removal: Removal

REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL
REMOVE HEATED OXYGEN SENSOR
1. Disconnect the heated oxygen sensor connector.

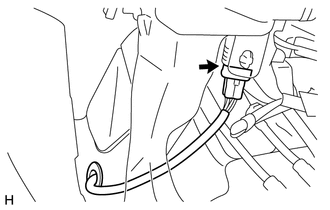

  Fig 1: Identifying Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oxygen sensor wire grommet and pass the connector through the hole to the outside of the vehicle.
3. Using SST, remove the heated oxygen sensor.

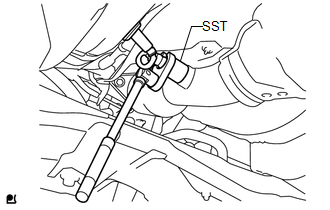

  Fig 2: Removing Heated Oxygen Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
