System Diagram

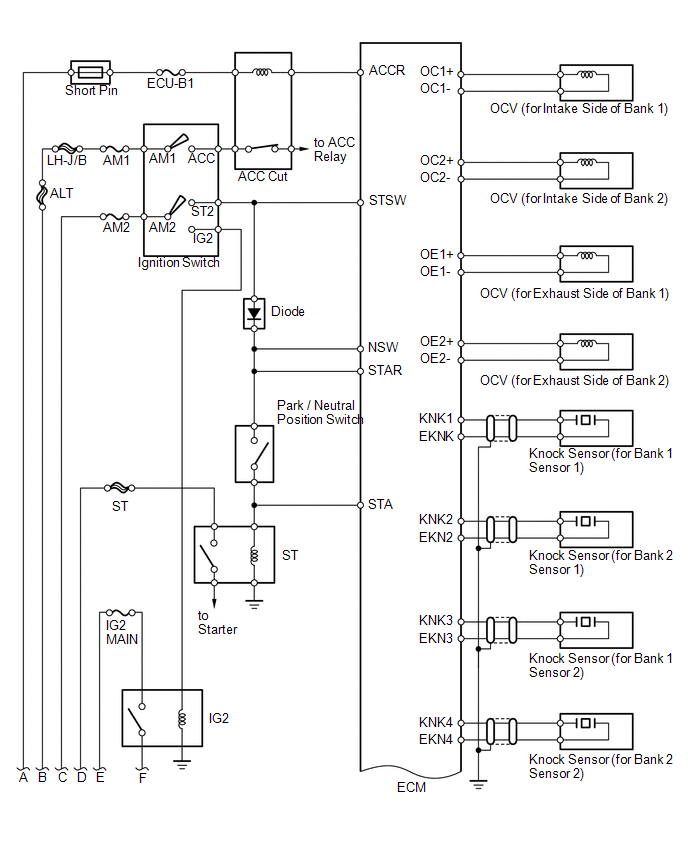

Fig 1: SFI System Wiring Diagram (1 Of 6)
GTY185675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

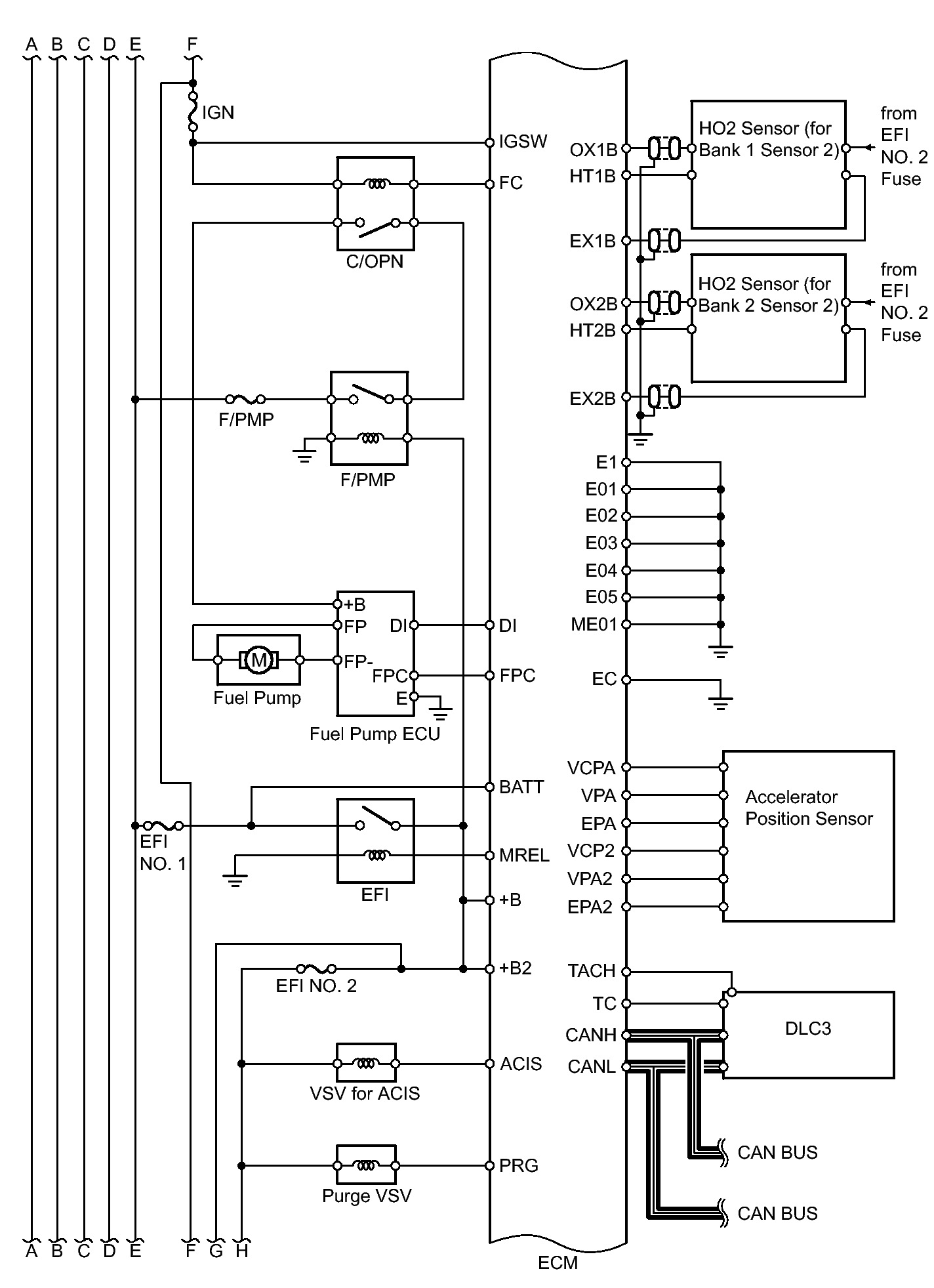

Fig 2: SFI System Wiring Diagram (2 Of 6)
GTY184525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

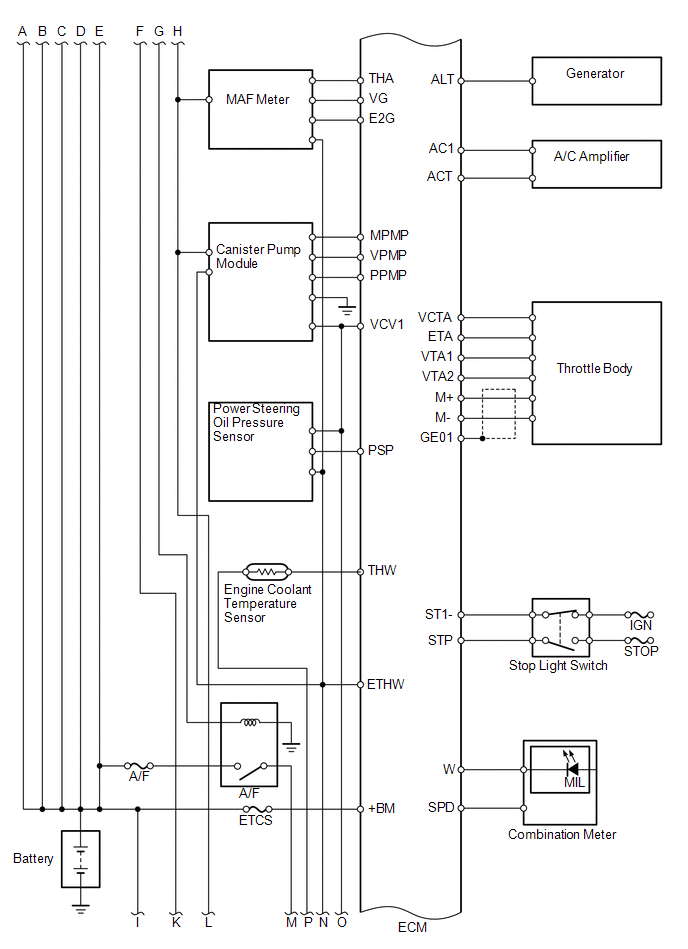

Fig 3: SFI System Wiring Diagram (3 Of 6)
GTY187289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

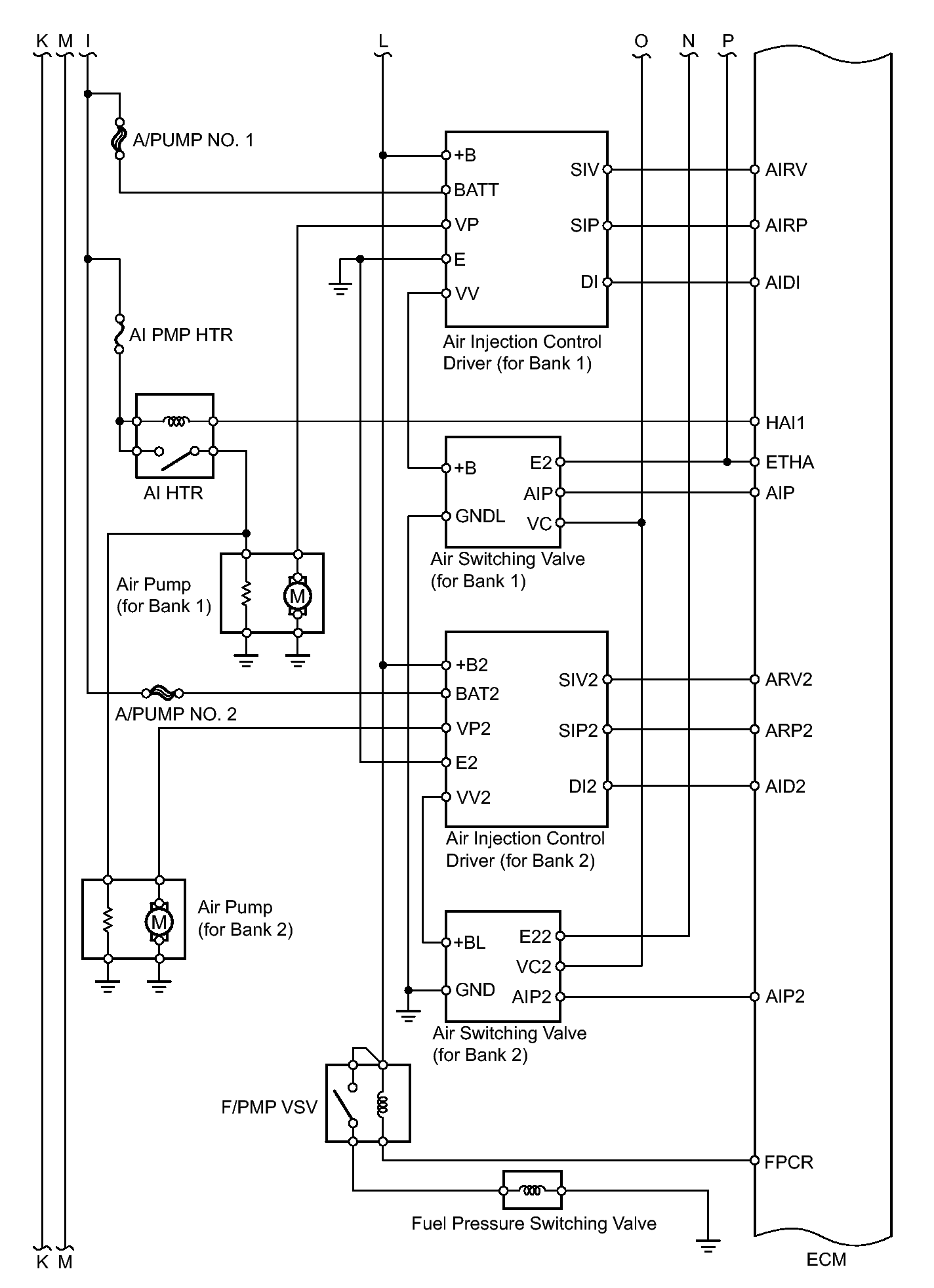

Fig 4: Identifying SFI Wiring Diagram (4 Of 6)
GTY337081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

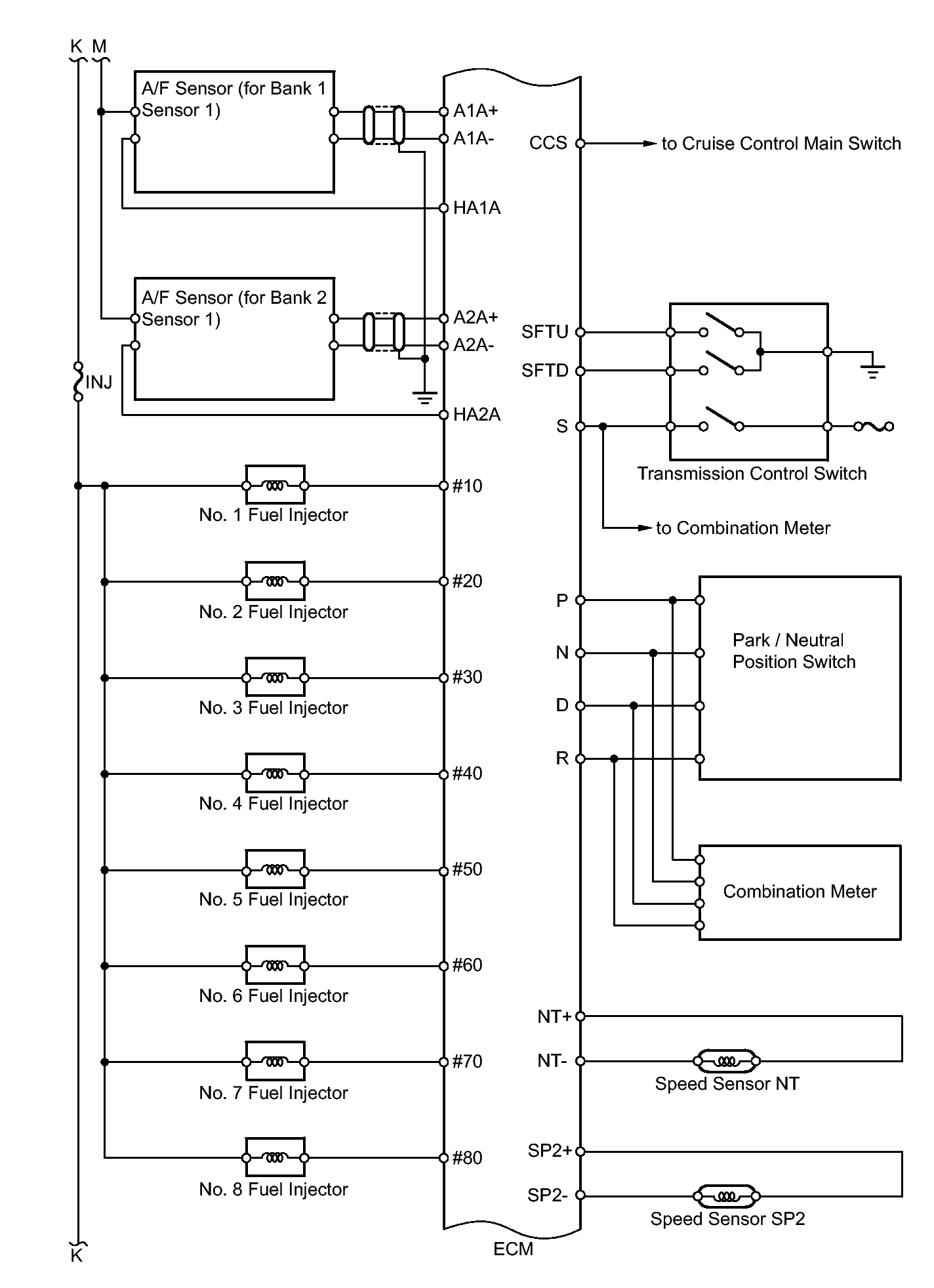

Fig 5: SFI System Wiring Diagram (5 Of 6)
GTY294397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

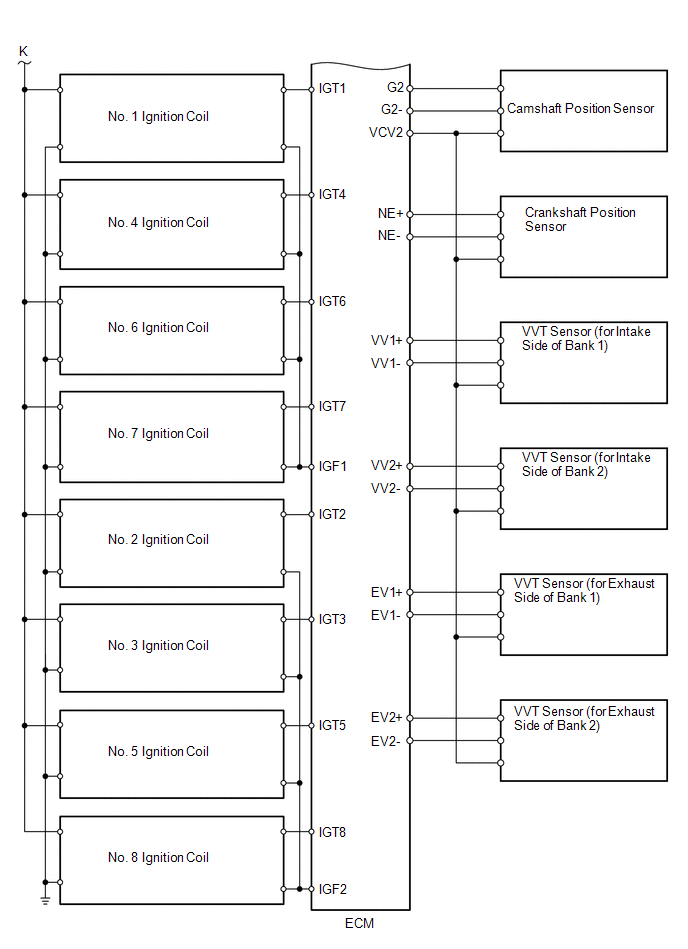

Fig 6: SFI System Wiring Diagram (6 Of 6)
GTY186889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
