Parts Location: Illustration

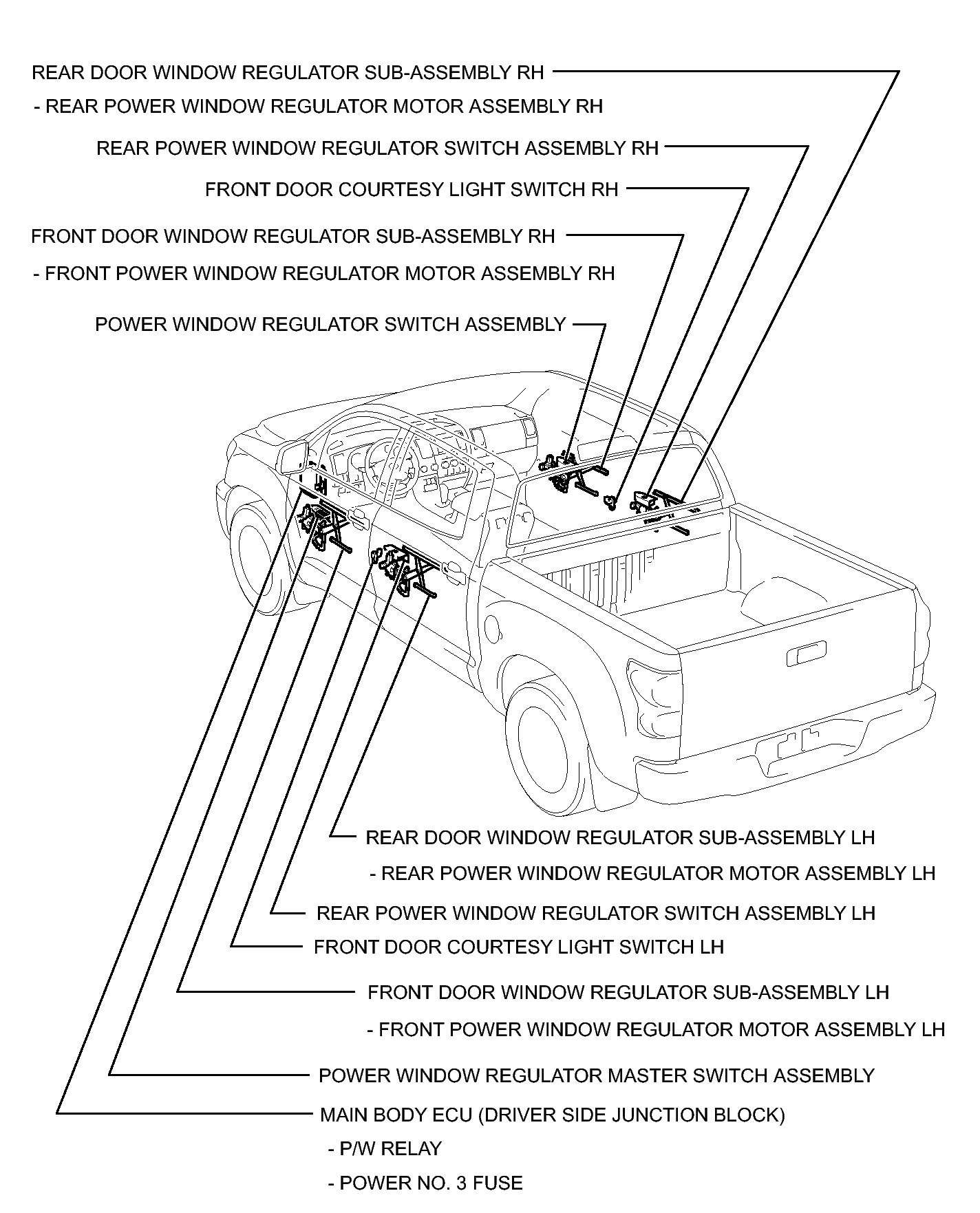

Fig 1: Identifying Power Window Control System (W/ Jam Protection Function) Components Location (1 Of 2)
GTY290061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

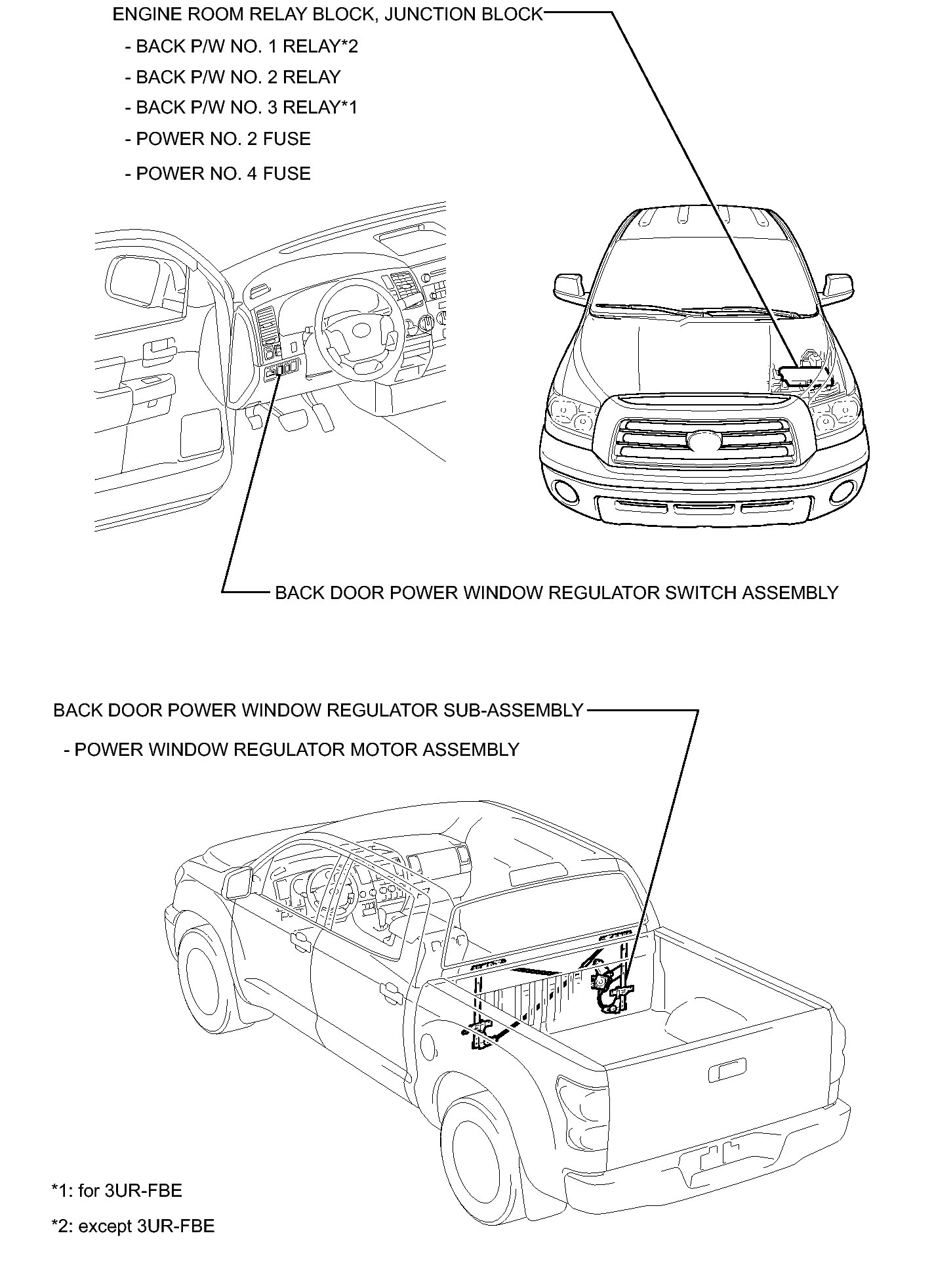

Fig 1: Identifying Power Window Control System (W/ Jam Protection Function) Components Location (2 Of 2)
GTY293223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
