VACUUM SWITCHING VALVE (for Engine Mounting): Inspection: Inspection
- INSPECT DUTY VACUUM SWITCHING VALVE (OPERATION)
- Check the operation of the duty vacuum switching valve when positive battery voltage is applied to its terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

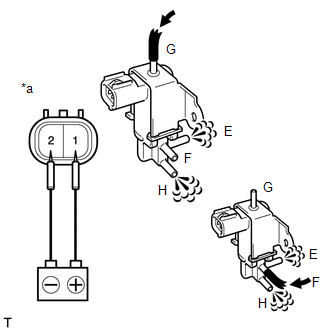

TEXT IN ILLUSTRATION*a Component without harness connected
(Duty Vacuum Switching Valve)OK
Tester Connection Condition Specified Condition 1 - 2 Battery voltage is not applied The air from pipe G is flowing out through pipes E and H. Battery voltage is applied The air from pipe F is flowing out through pipes E and H.
- Check the operation of the duty vacuum switching valve when positive battery voltage is applied to its terminals.
- INSPECT DUTY VACUUM SWITCHING VALVE (RESISTANCE)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

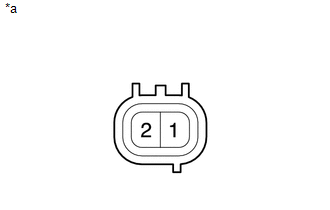

TEXT IN ILLUSTRATION*a Component without harness connected
(Duty Vacuum Switching Valve)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 19 to 21 Ω If the resistance is not as specified, replace the duty vacuum switching valve.
- Measure the resistance according to the value(s) in the table below.
