VSC Off Switch: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

CHECK VSC OFF SWITCH

Measure the resistance according to the value(s) in the table below.

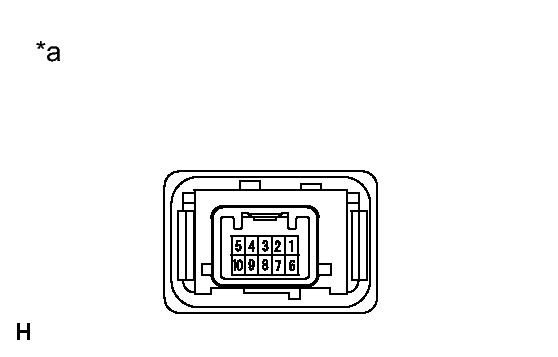

Fig 1: Identifying VSC Off Switch Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
6 - 9	Not pushed	10 kΩ or higher
6 - 9	Pushed in	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Component without harness connected (VSC OFF Switch)

If the result is not as specified, replace the VSC OFF switch.
