Navigation Receiver: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

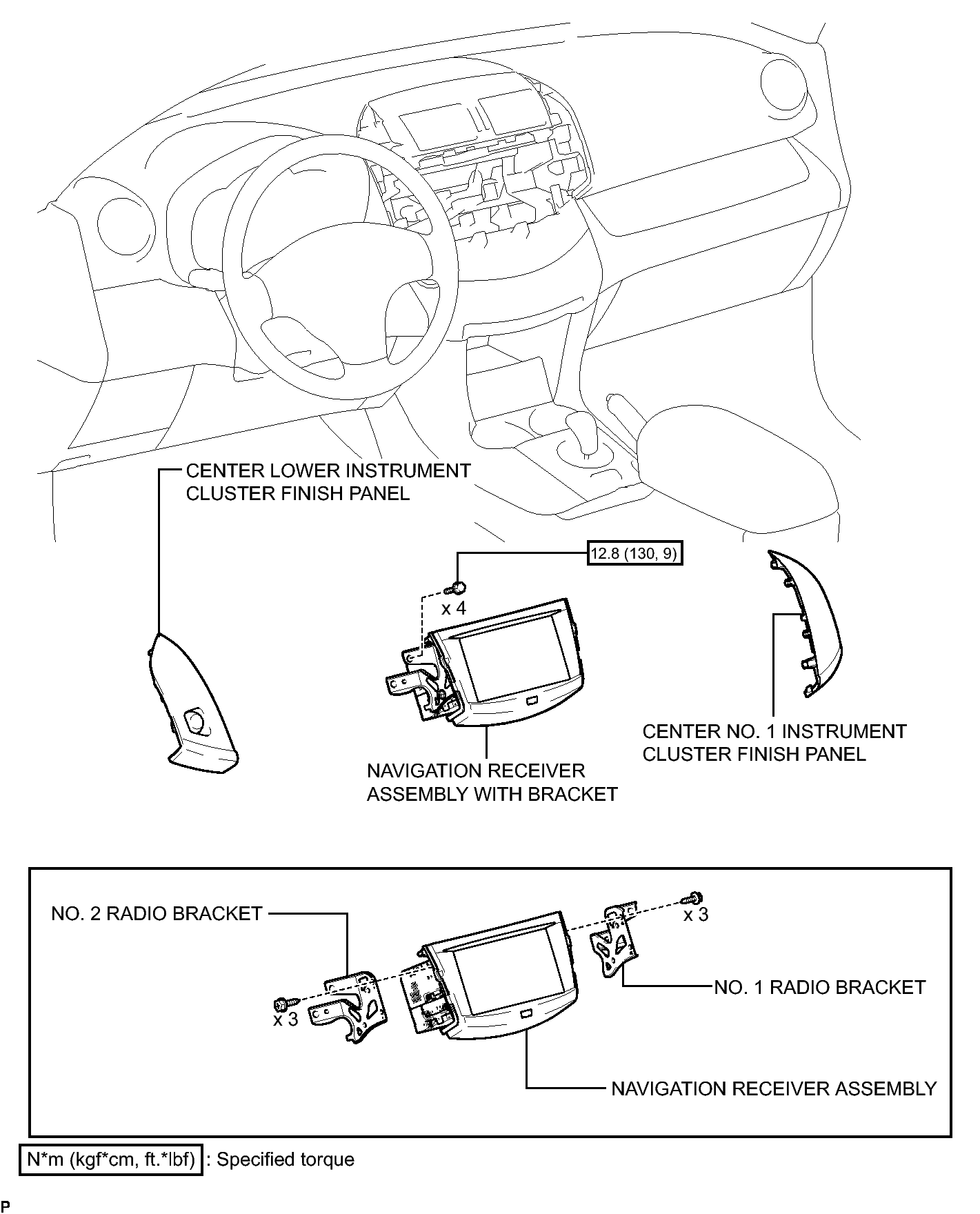

Fig 1: Identifying Navigation Receiver Replacement Components With Torque Specifications
GTY363243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
