Removal [12/2012 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

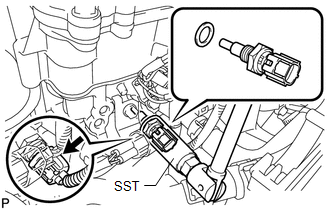

    1. Disconnect the engine coolant temperature sensor connector.
      GTY369393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the engine coolant temperature sensor and gasket.
      • SST: 09817-33190
