ABS, Brake Assist, Brake Override System, Hill-Start Assist Control, TRAC and VSC: Notes

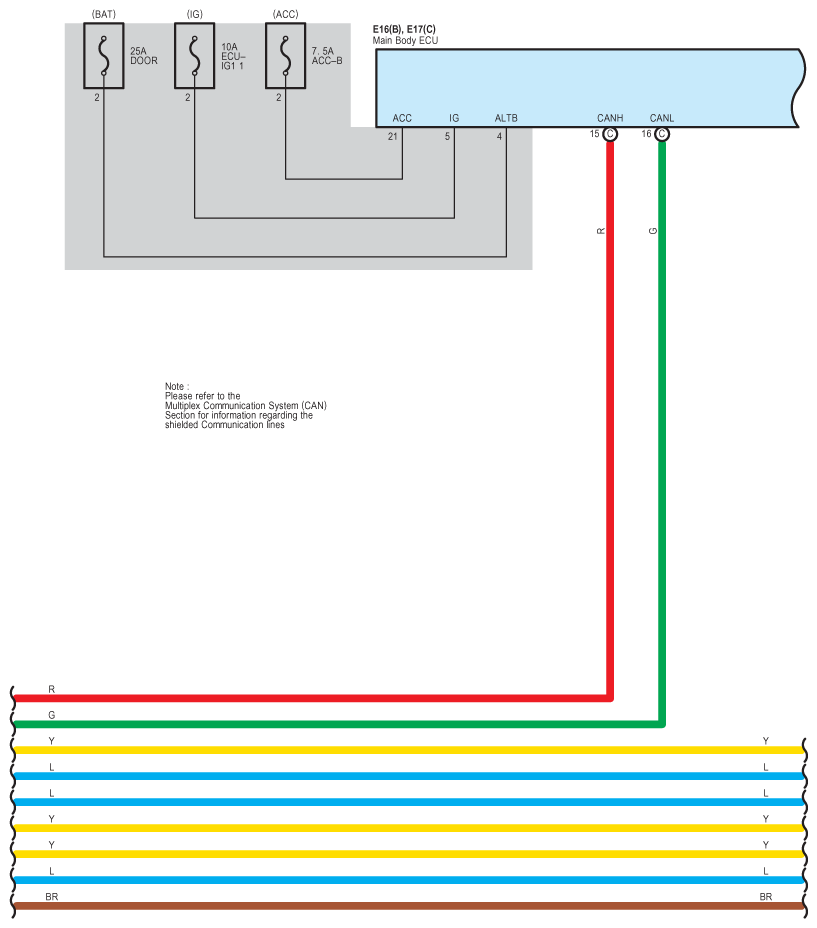

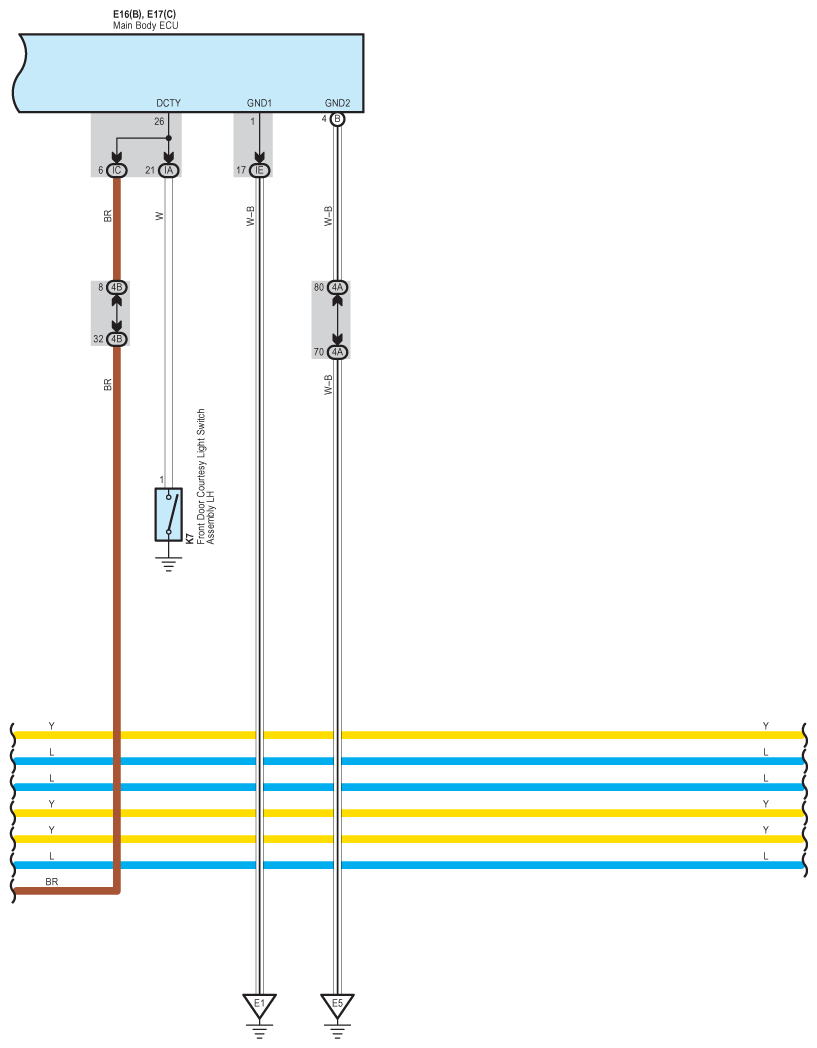

Fig 1: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

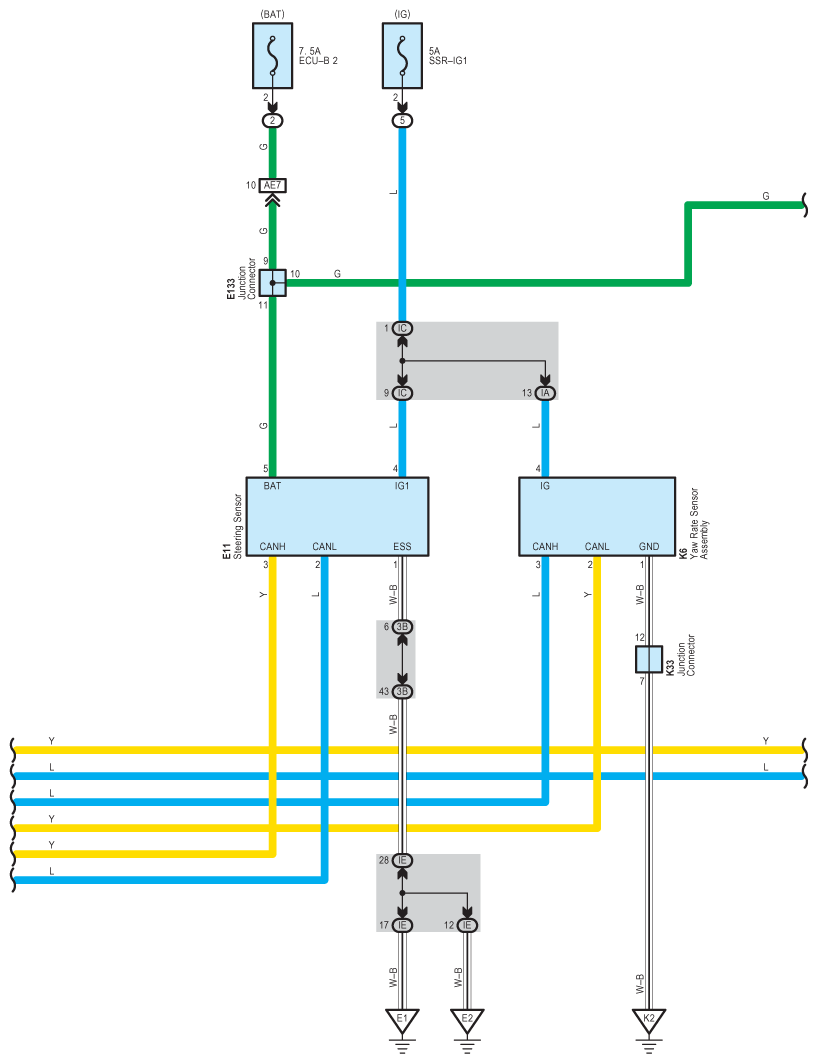

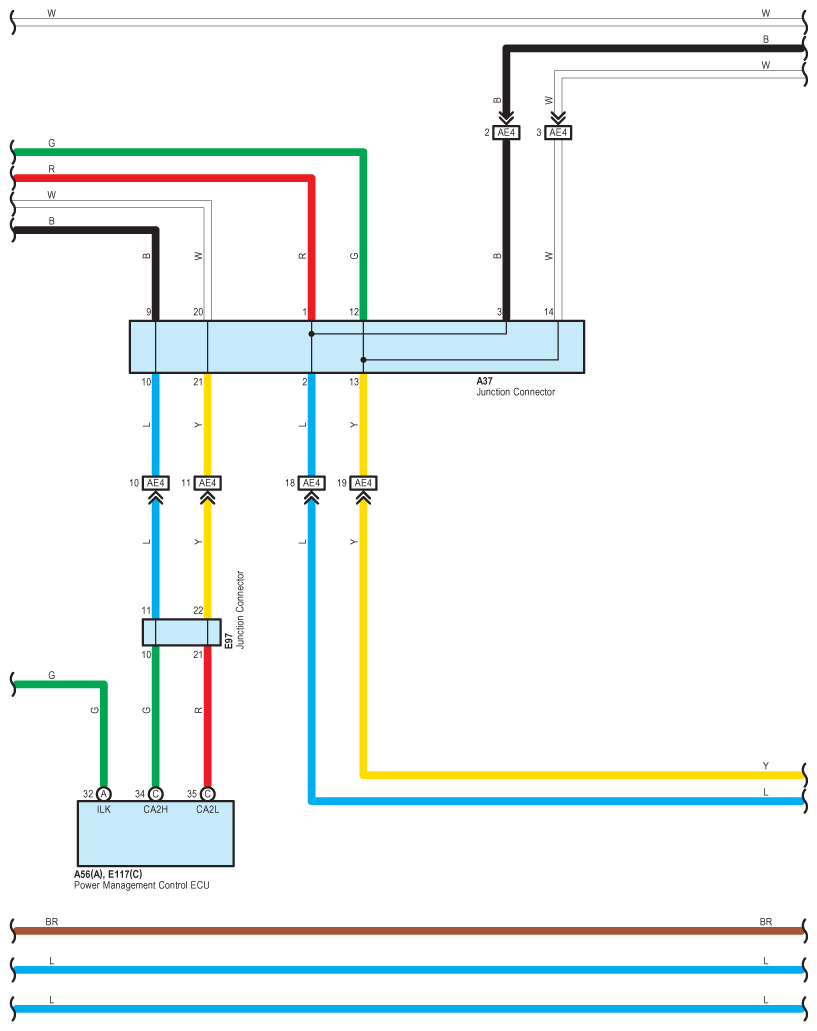

Fig 2: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

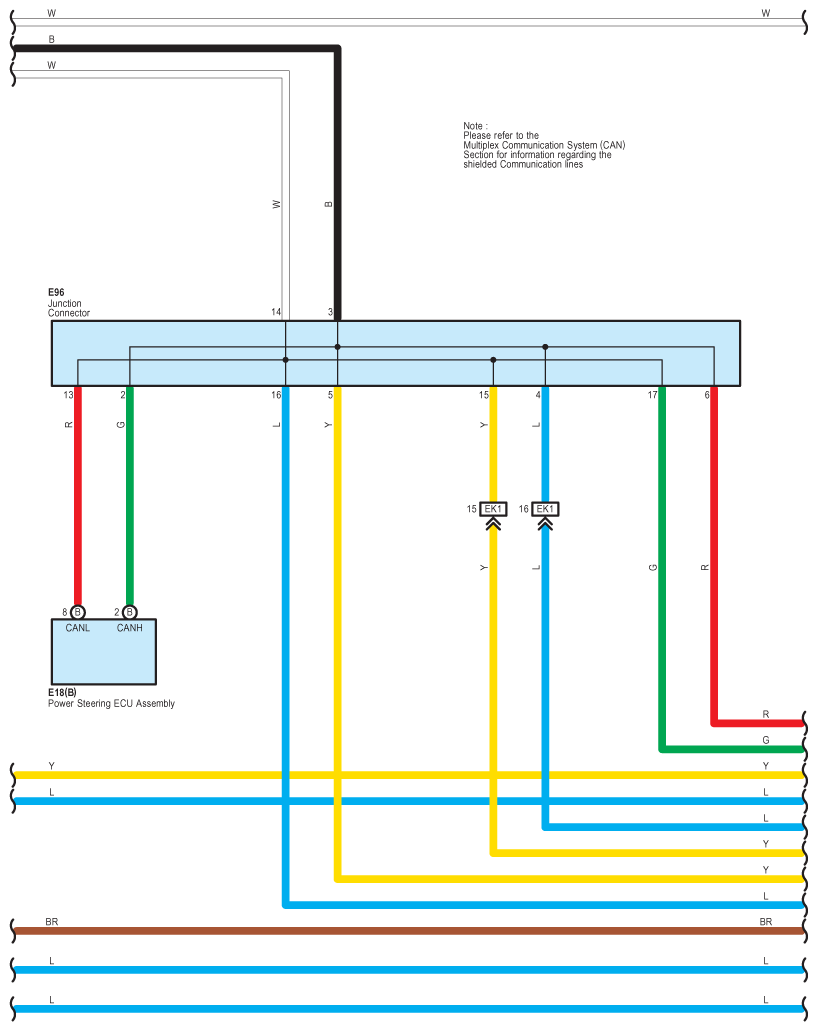

Fig 3: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

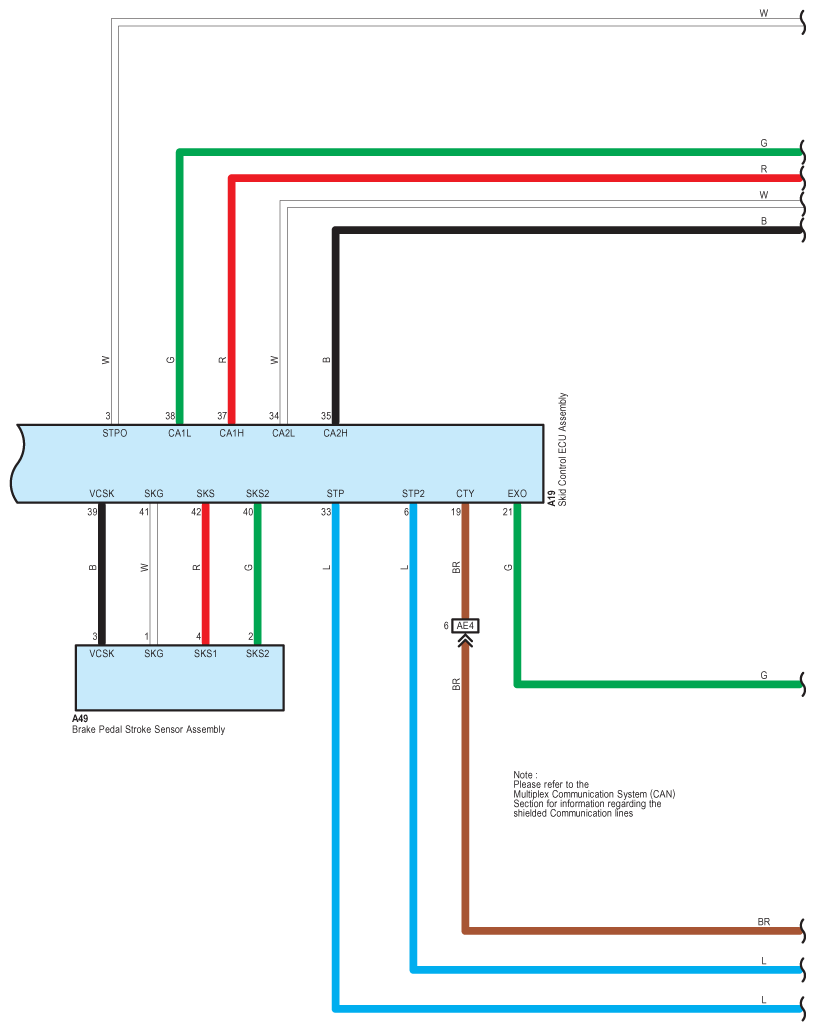

Fig 4: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

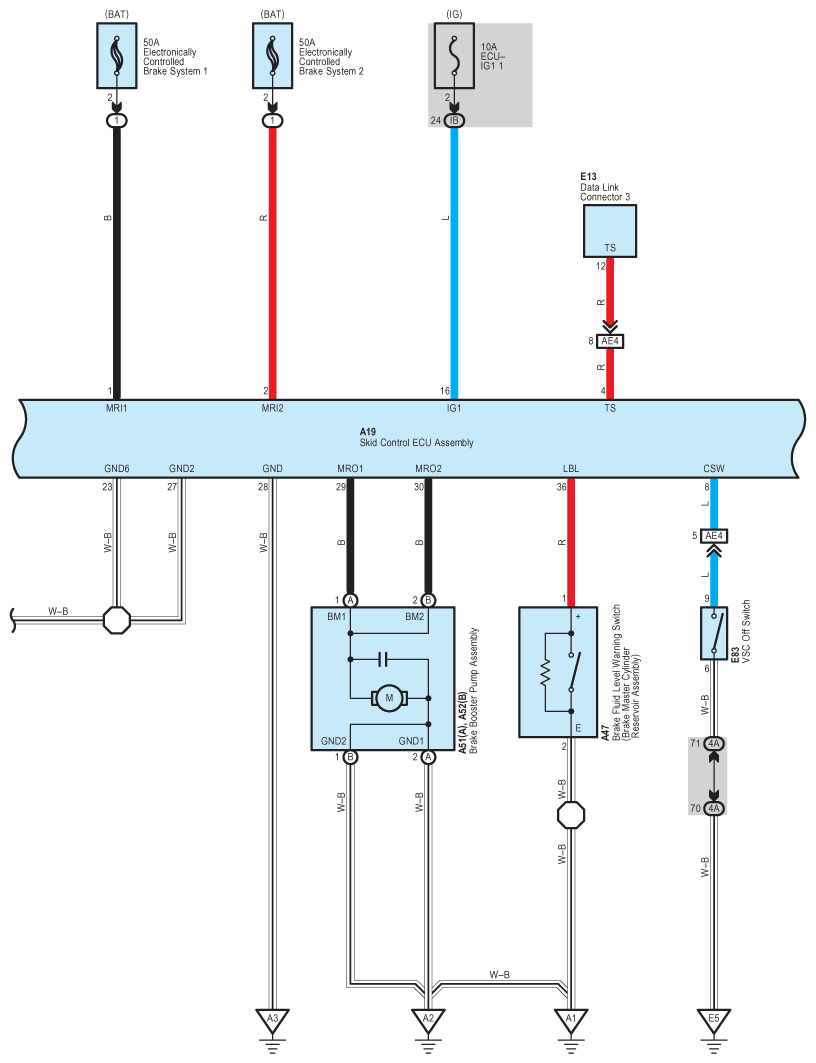

Fig 5: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

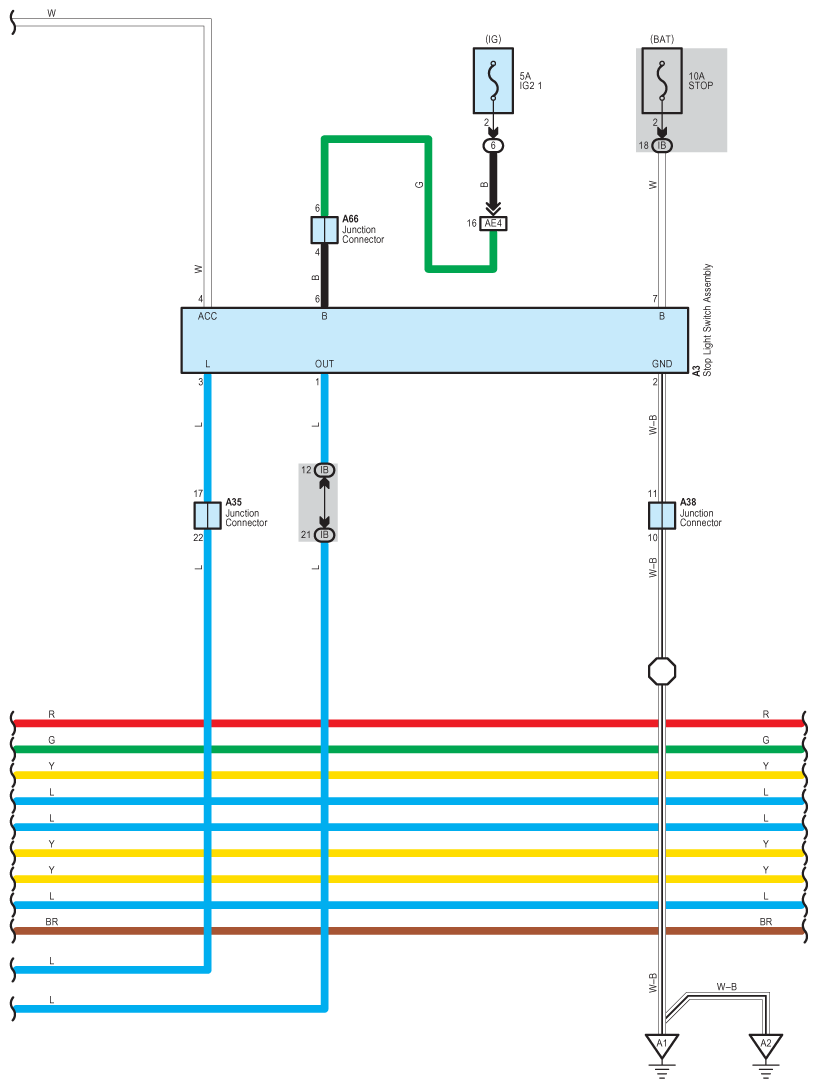

Fig 6: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

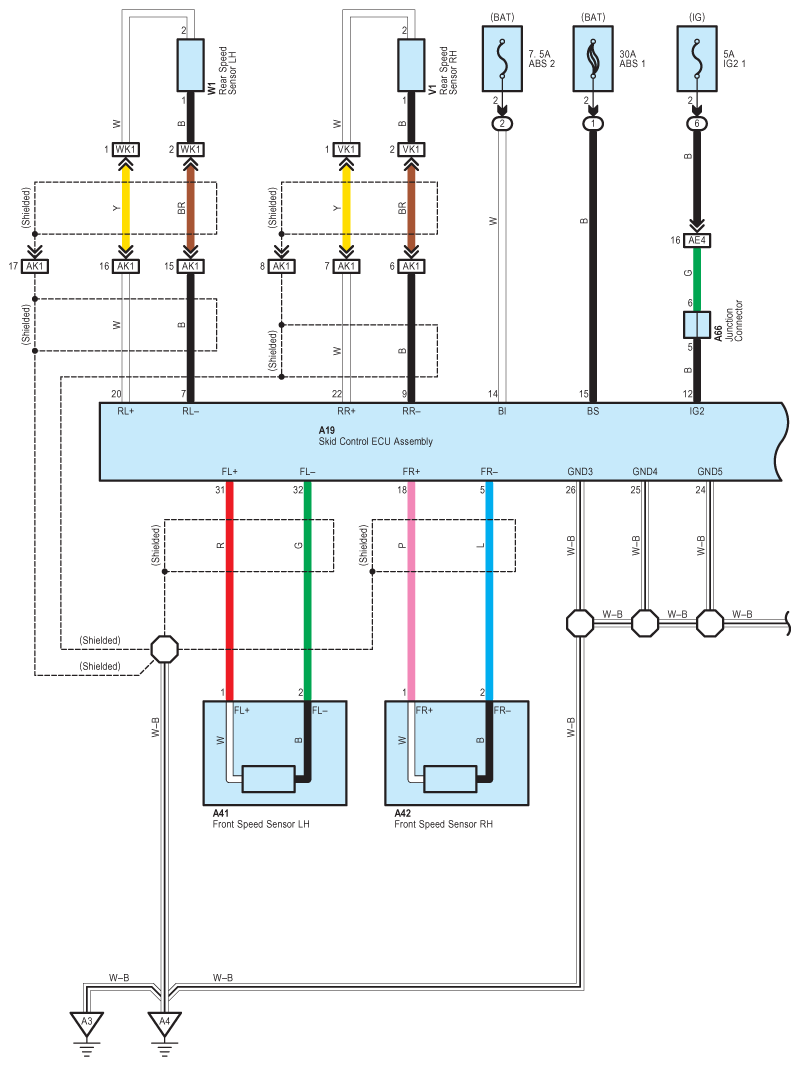

Fig 7: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

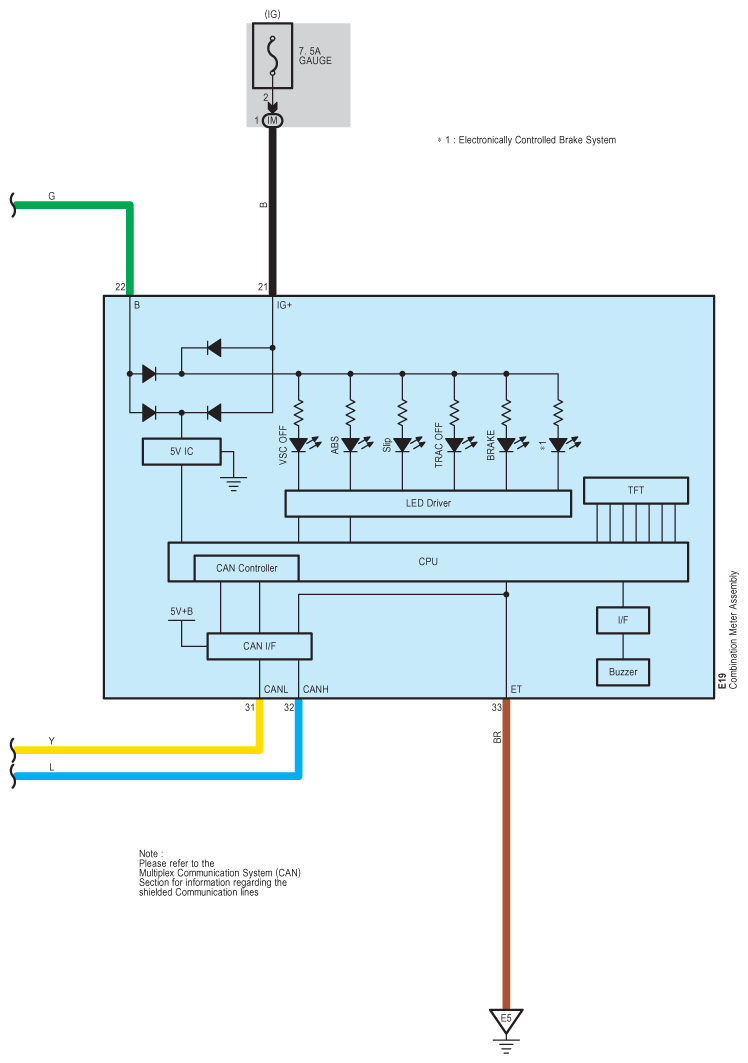

Fig 8: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: ABS, Brake Assist, Brake Override, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
