Front Speed Sensor: Components: Illustration

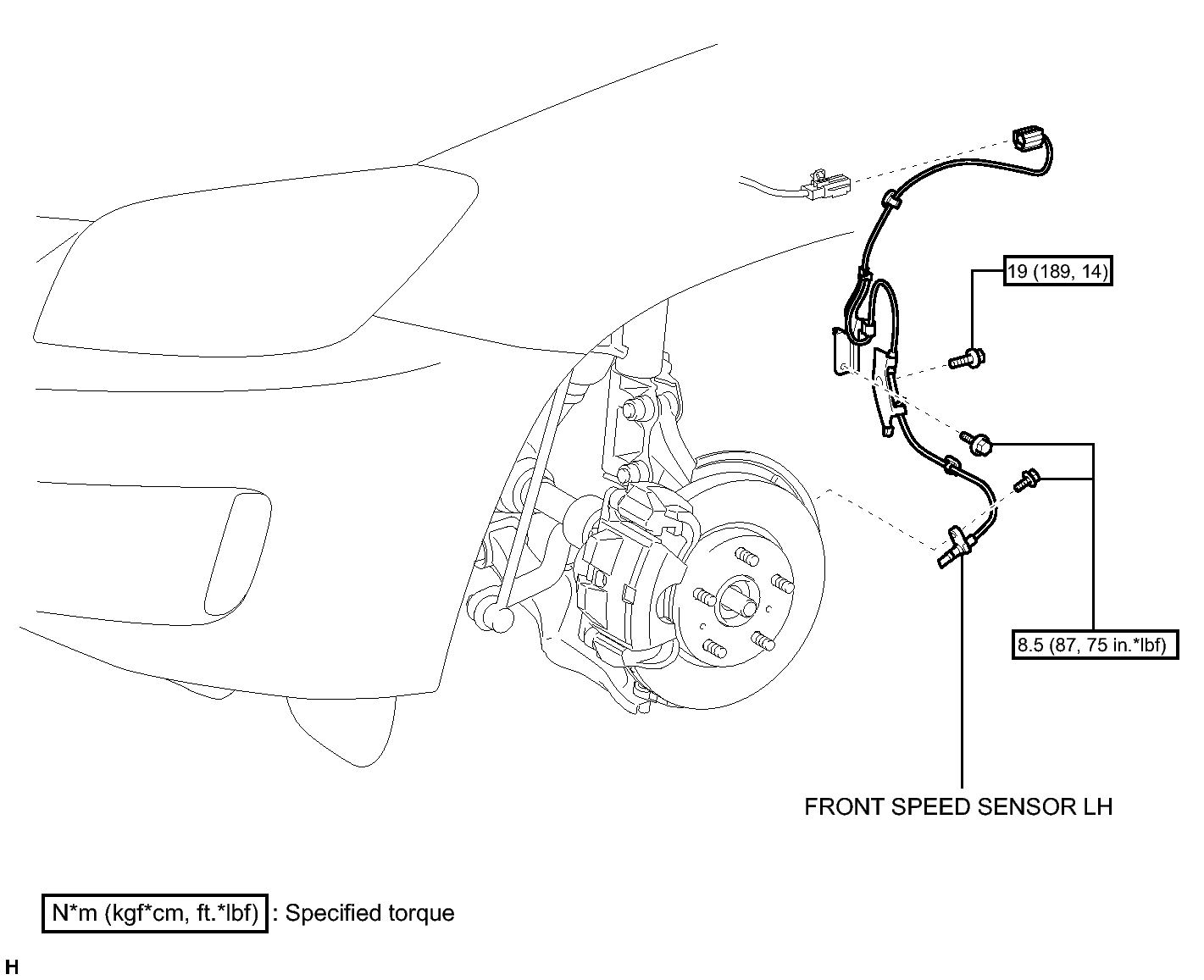

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications

GTY384317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
