Back Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

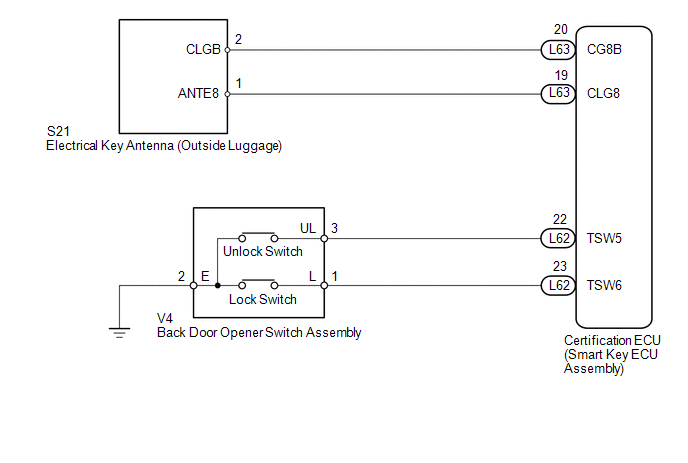

Fig 1: Back Door Entry Lock And Unlock Functions Wiring Diagram

GTY332947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
