Fuel Sender Gauge Assembly: Components: Illustration

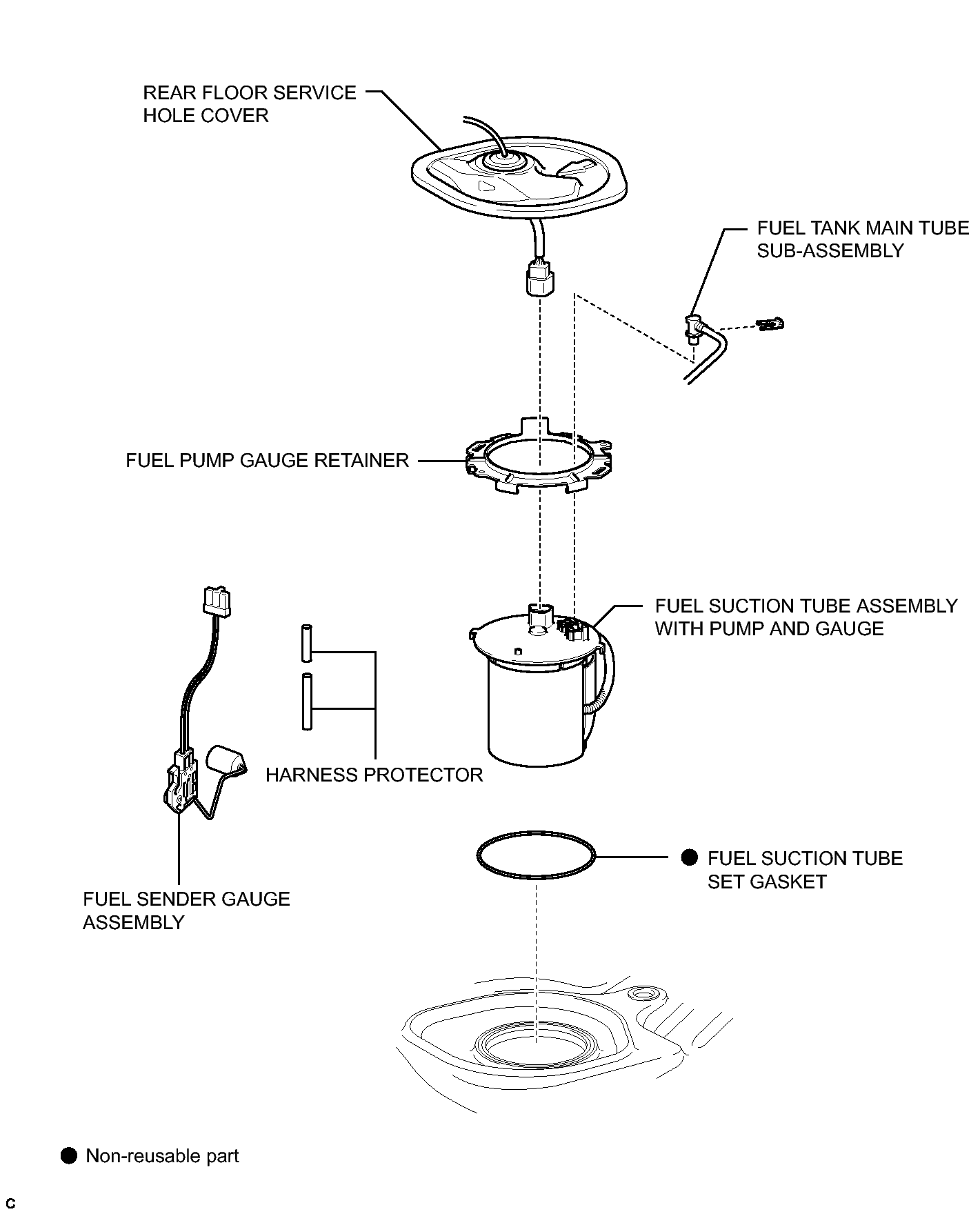

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components

GTY364337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
