System Diagram

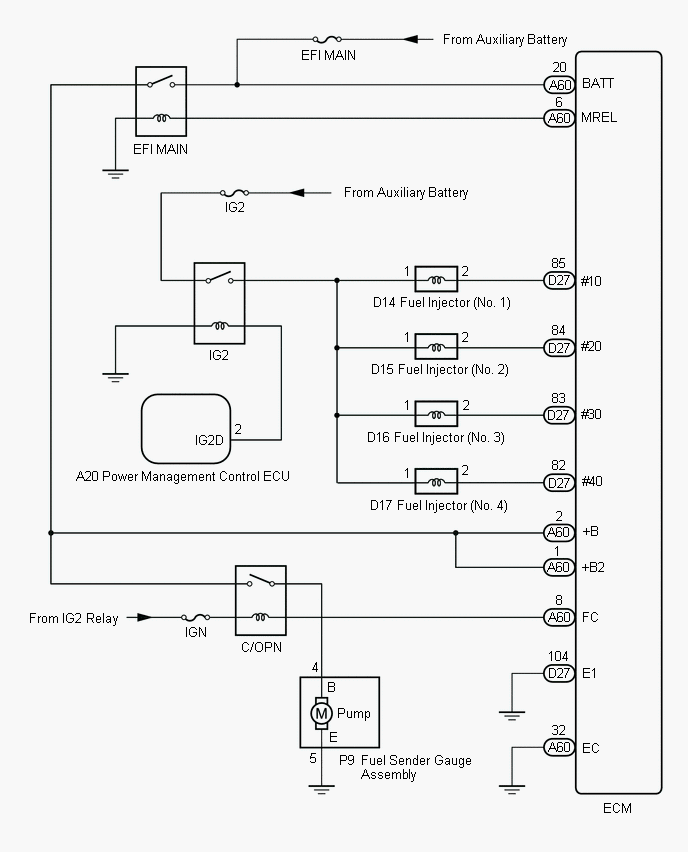

Fig 1: Identifying Fuel System Circuit Diagram

GTY339050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
