Power Windows do not Operate Using All Window Switch: Wiring Diagram

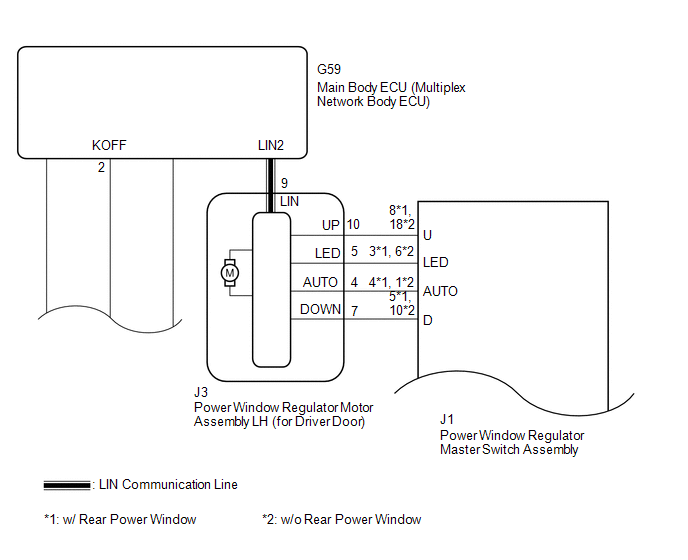

Fig 1: Power Window Regulator Master Switch Assembly System Diagram
GTY379193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

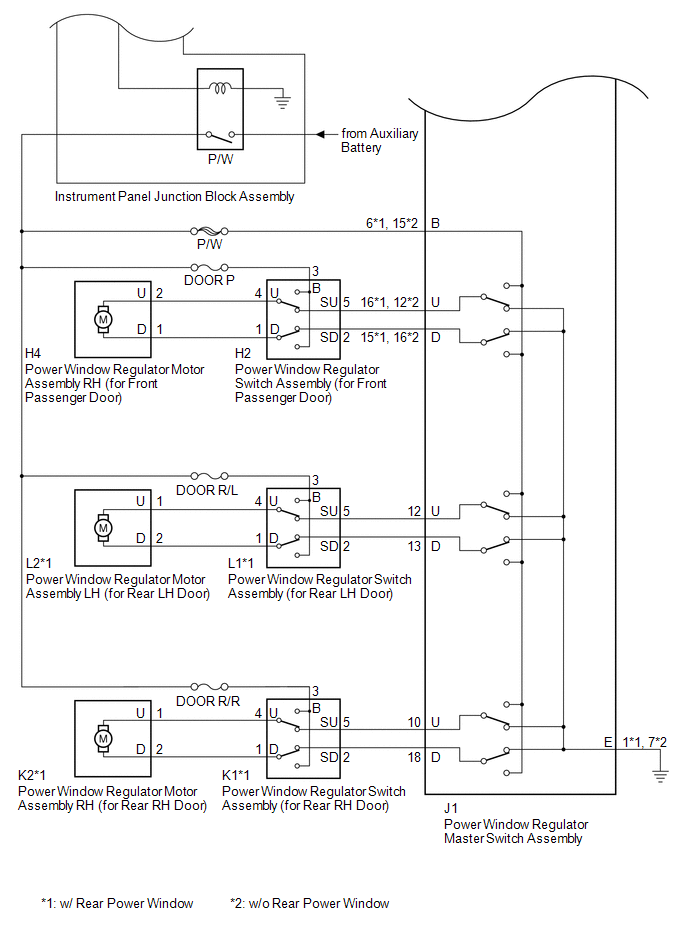

Fig 2: Power Window Regulator Master Switch Assembly Wiring Diagram
GTY329532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
