Parts Location: Illustration

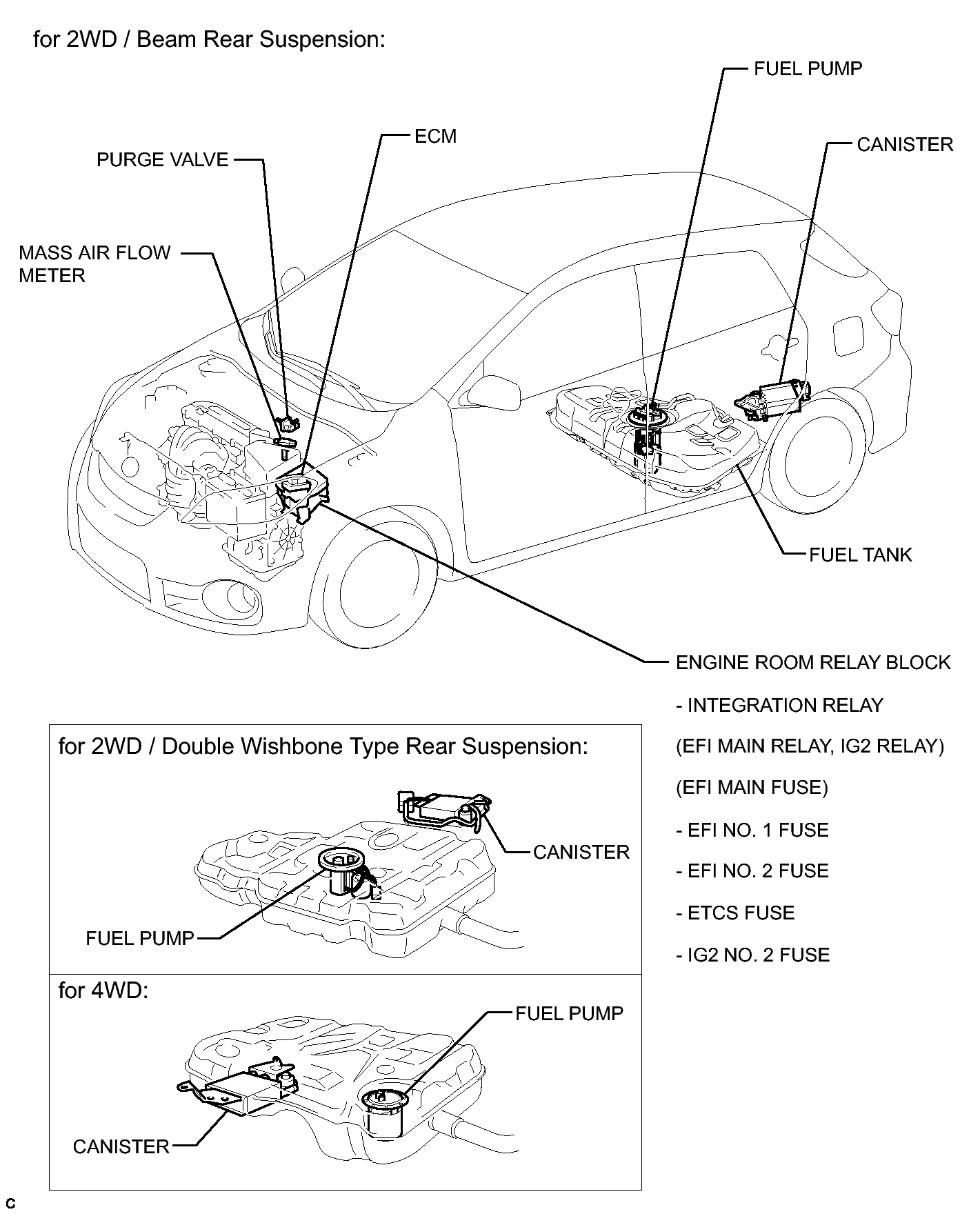

Fig 1: Identifying SFI Component Locations (1 Of 3)
GTY376215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

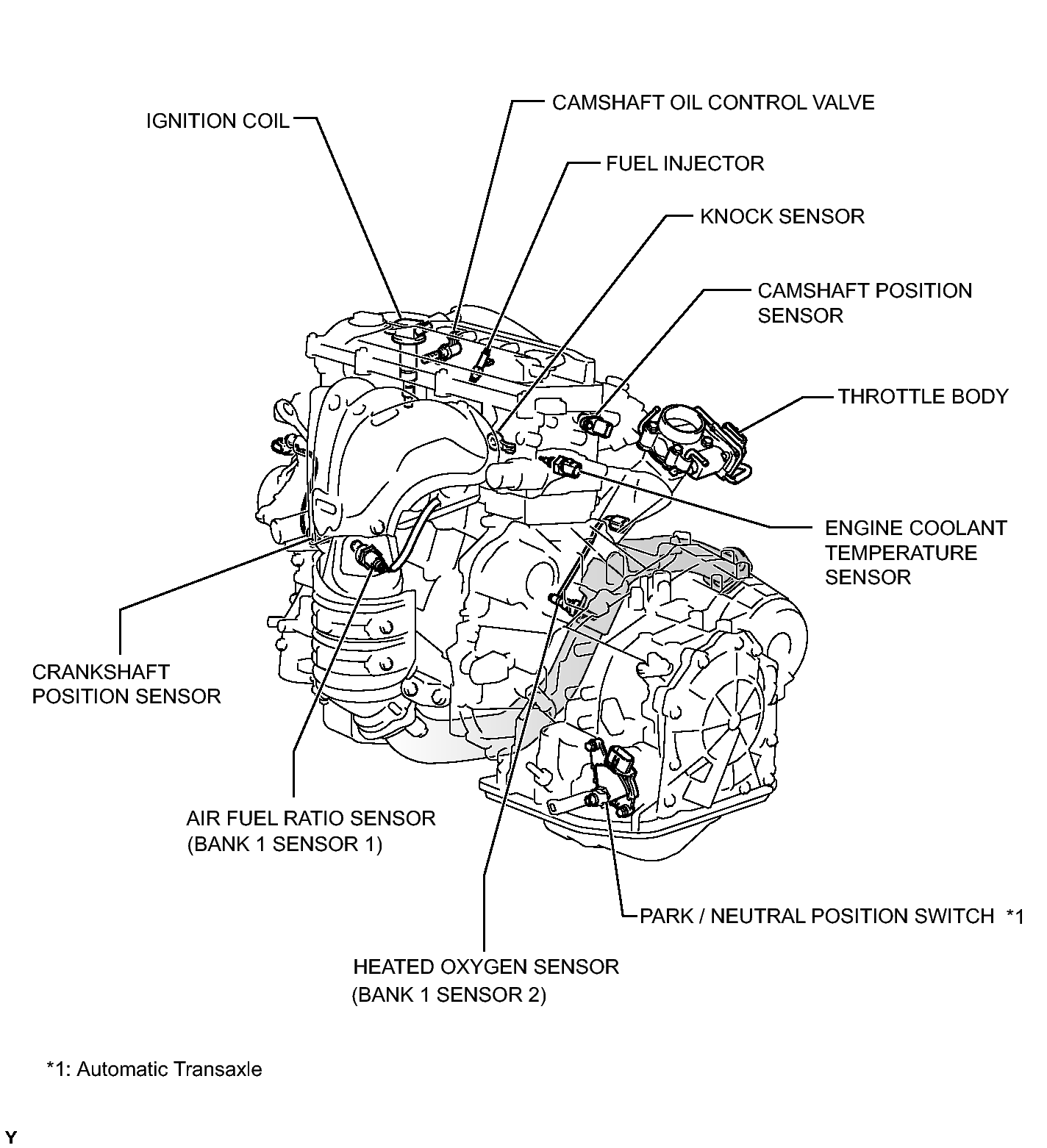

Fig 1: Identifying SFI Component Locations (2 Of 3)
GTY379790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI Component Locations (3 Of 3)
GTY234809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
