Air Conditioning Pressure Sensor: Installation: Installation

  1. INSTALL AIR CONDITIONING PRESSURE SENSOR
    1. Sufficiently apply compressor oil to a new air conditioning pressure sensor.

      Compressor oil

      ND-OIL 8 or equivalent

    2. Install the new air conditioning pressure sensor.

      Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

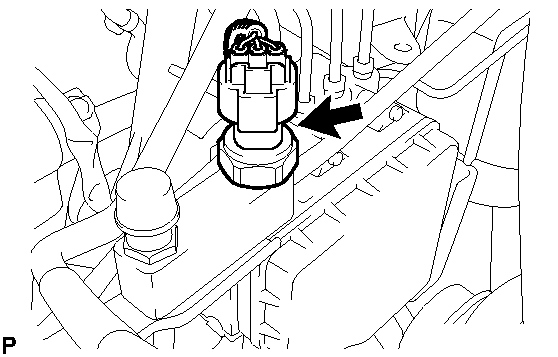

      Fig 1: Locating Air Conditioning Pressure Sensor Connector
      GTY217164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  2. CHARGE WITH REFRIGERANT  See step  2
  3. WARM UP ENGINE  See step  3
  4. INSPECT FOR REFRIGERANT LEAK  See step  4
