Blower Unit: Disassembly: Disassembly

  1. REMOVE AIR INLET CONTROL SERVO MOTOR
    1. Remove the 2 screws and the air inlet control servo motor.
      Fig 1: Identifying Air Inlet Control Servo Motor And Screws
      GTY176666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR FILTER CASE
    1. Disengage the 2 claws and remove the air filter case as shown in the illustration.

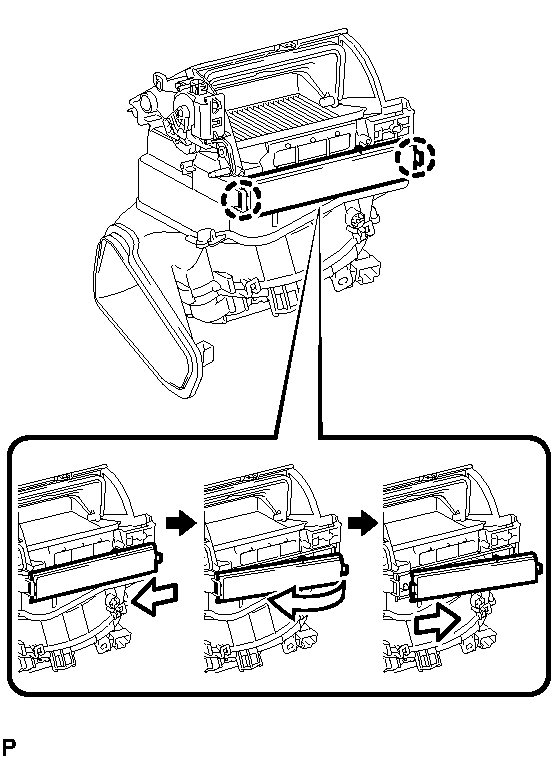

      Fig 2: Identifying Air Filter Case And Claws
      GTY171513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CLEAN AIR FILTER
    1. Remove the clean air filter as shown in the illustration.
      Fig 3: Removing Clean Air Filter
      GTY171511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BLOWER RESISTOR
    1. Remove the 2 screws and the blower resistor.
      Fig 4: Locating Blower Resistor And Screws
      GTY207492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BLOWER MOTOR SUB-ASSEMBLY
    1. Remove the 3 screws and the blower motor sub-assembly.
      Fig 5: Locating Blower Motor Sub-Assembly And Screws
      GTY188473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
