REAR SPEED SENSOR (for 2WD): Components: Illustration

Fig 1: Identifying Rear Speed Sensor Replacement Components (For Torsion Beam Type) (2WD) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

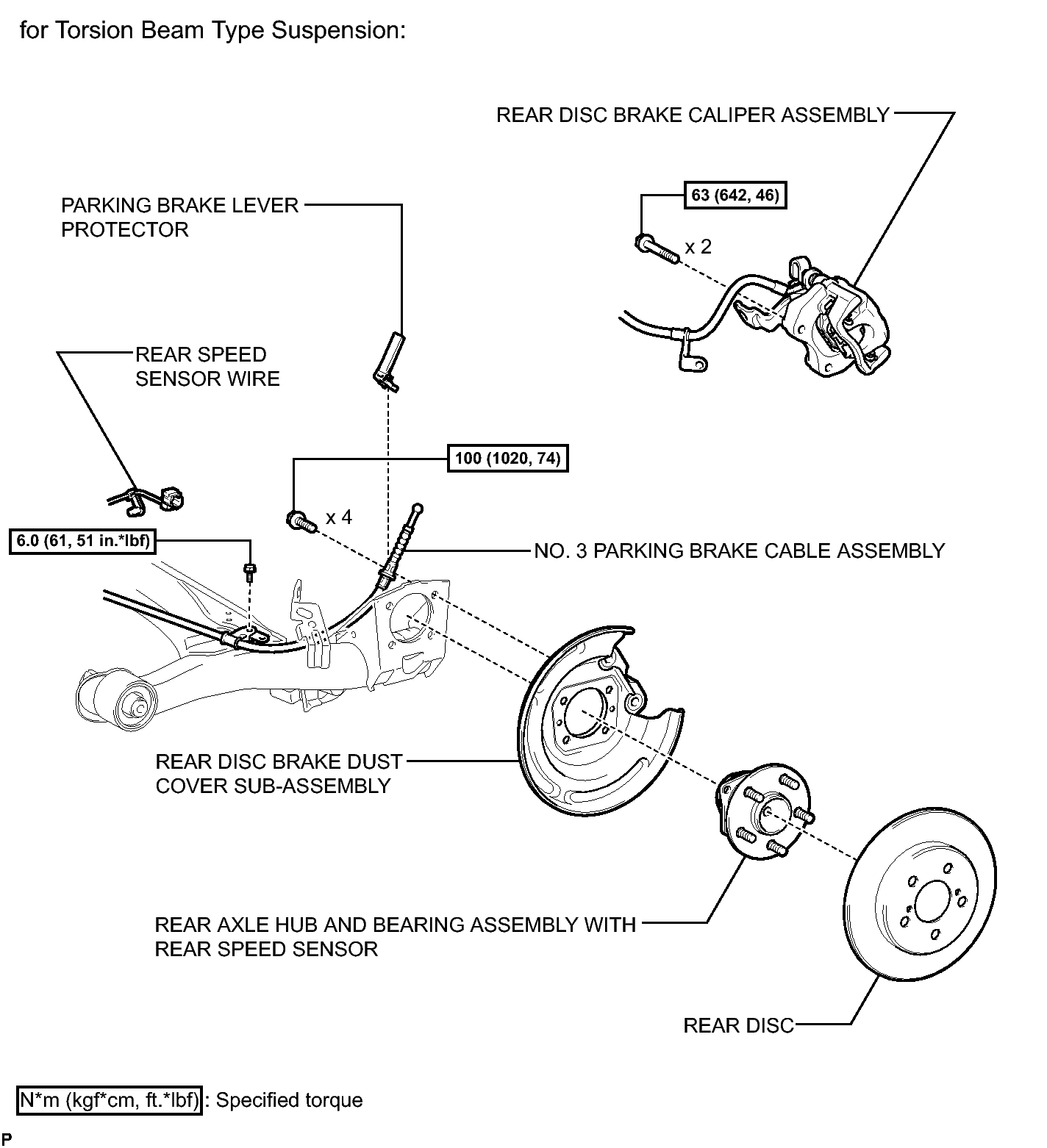

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (For Torsion Beam Type) (2WD) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

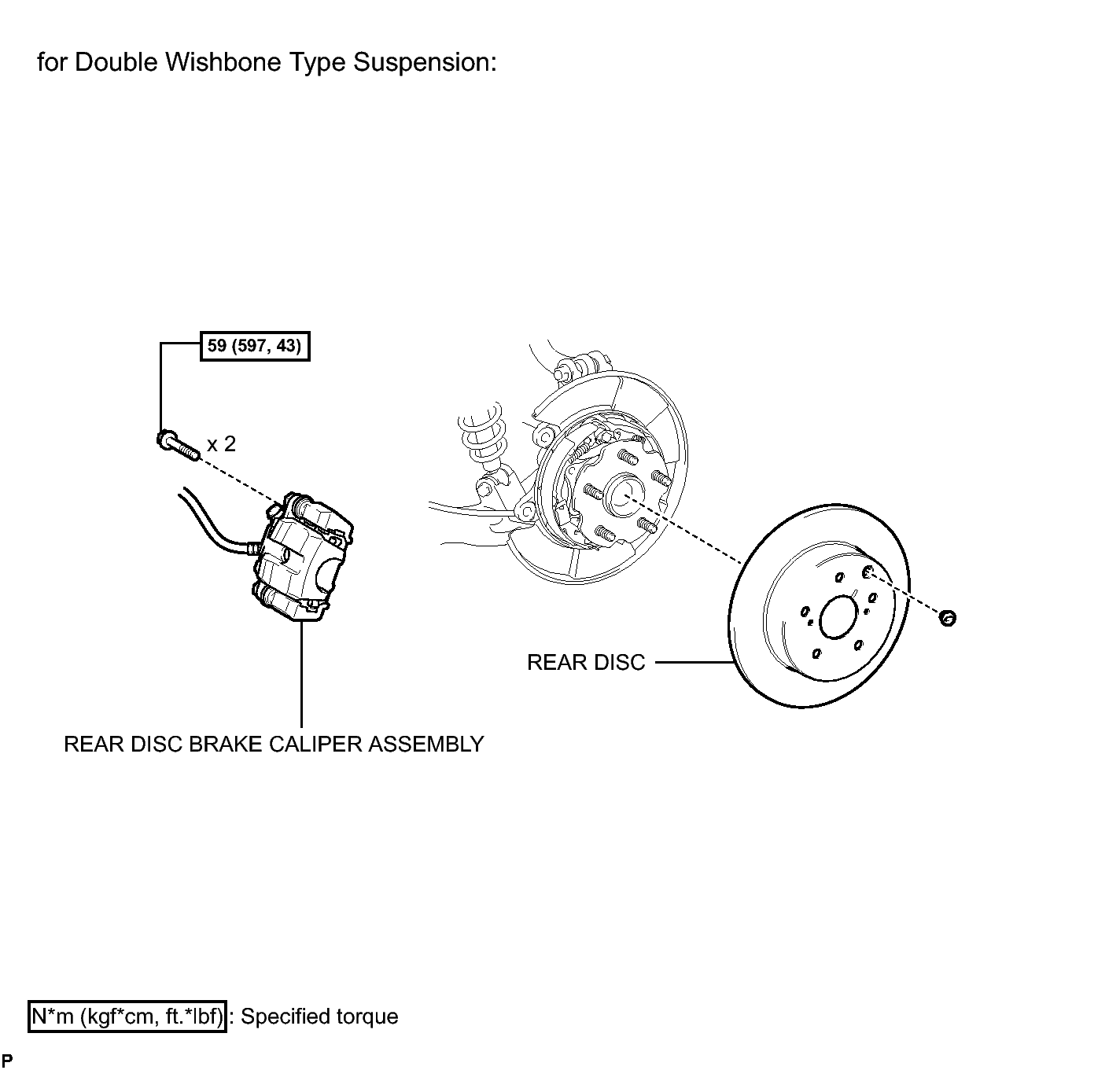

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (For Double Wishbone Type) (2WD) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

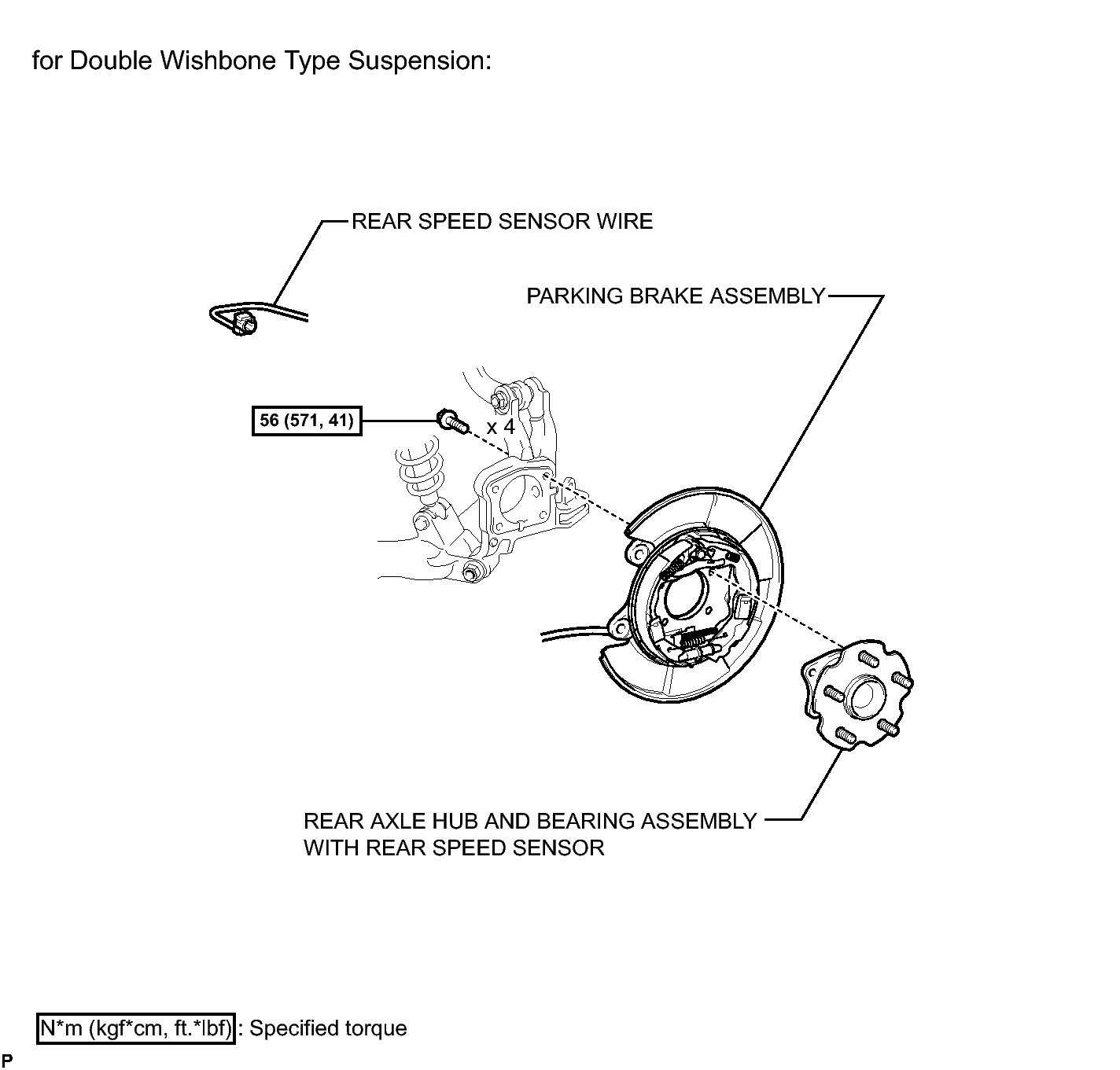

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications (For Double Wishbone Type) (2WD) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
