Parts Location: Illustration

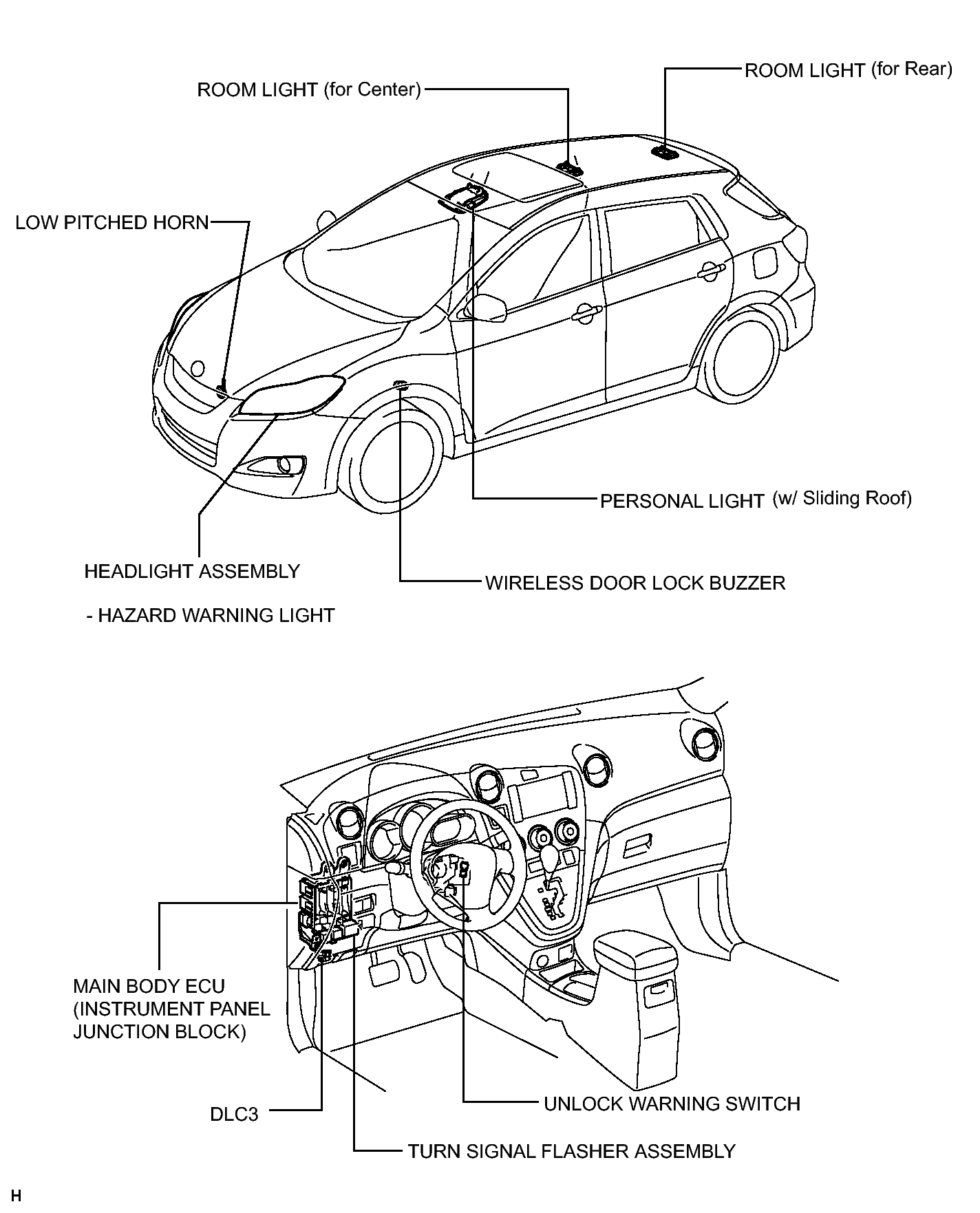

Fig 1: Identifying Wireless Door Lock Control System Components Location (1 Of 3)
GTY242307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

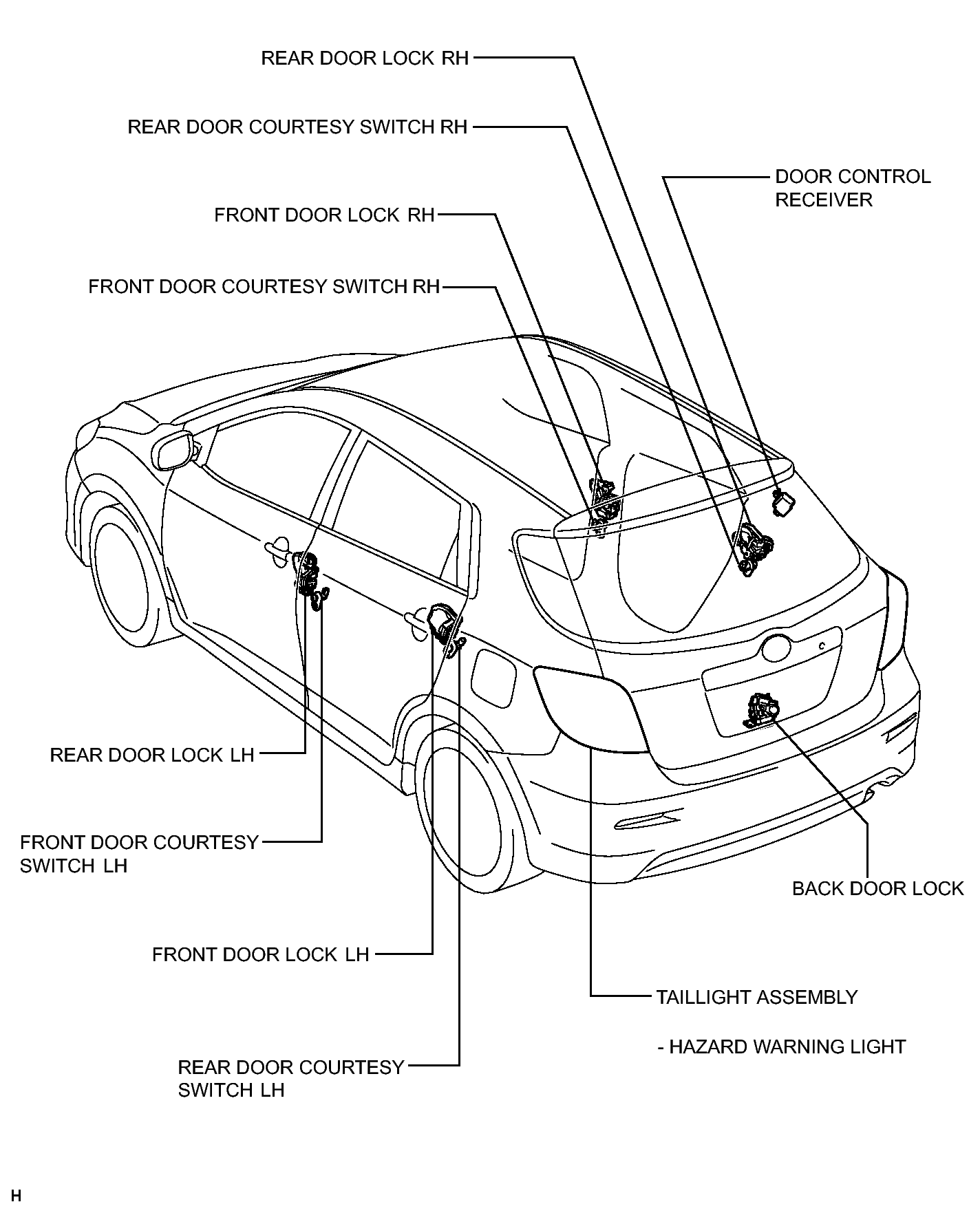

Fig 1: Identifying Wireless Door Lock Control System Components Location (2 Of 3)
GTY242308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

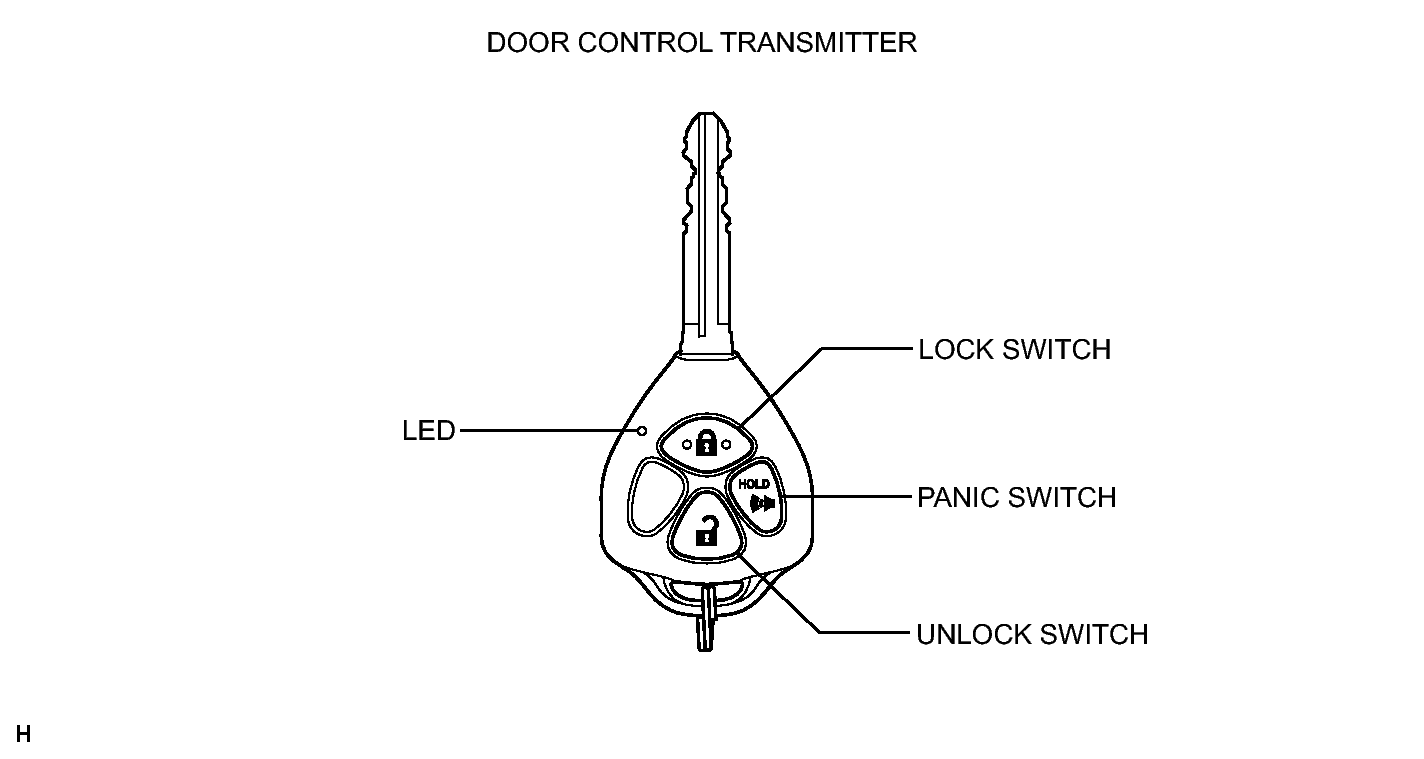

Fig 1: Identifying Wireless Door Lock Control System Components Location (3 Of 3)
GTY241428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
