Parts Location: Illustration

Fig 1: Cruise Control System Components Location (1 Of 2)
GTY293414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

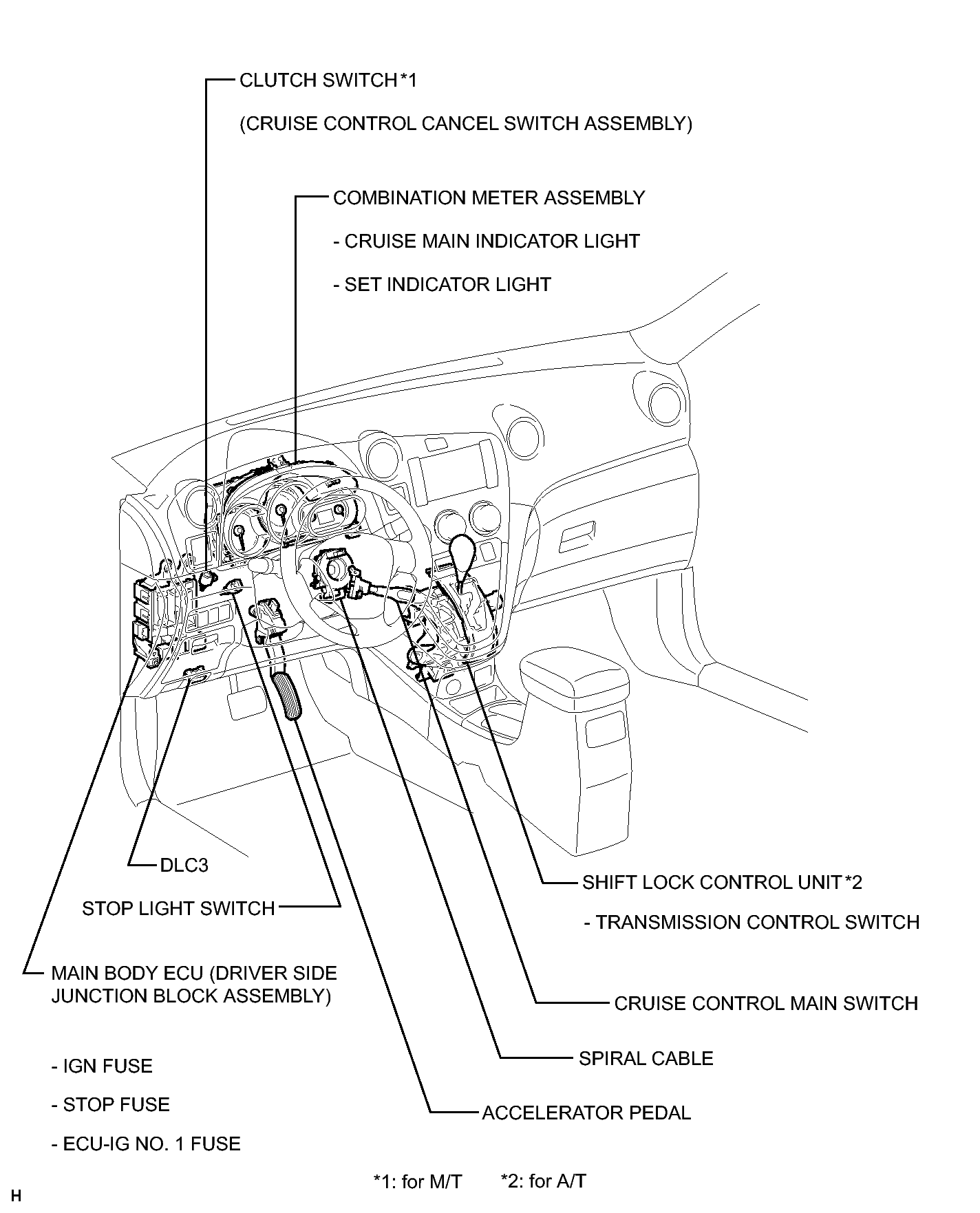

Fig 1: Cruise Control System Components Location (2 Of 2)
GTY368159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
