Home >> Toyota >> 2013 >> Land Cruiser >> Repair and Diagnosis >> Body & Frame >> Seats >> Climate Control Seat System (Inspection) >> Climate Control Seat System >> System Diagram >> System Diagram

System Diagram

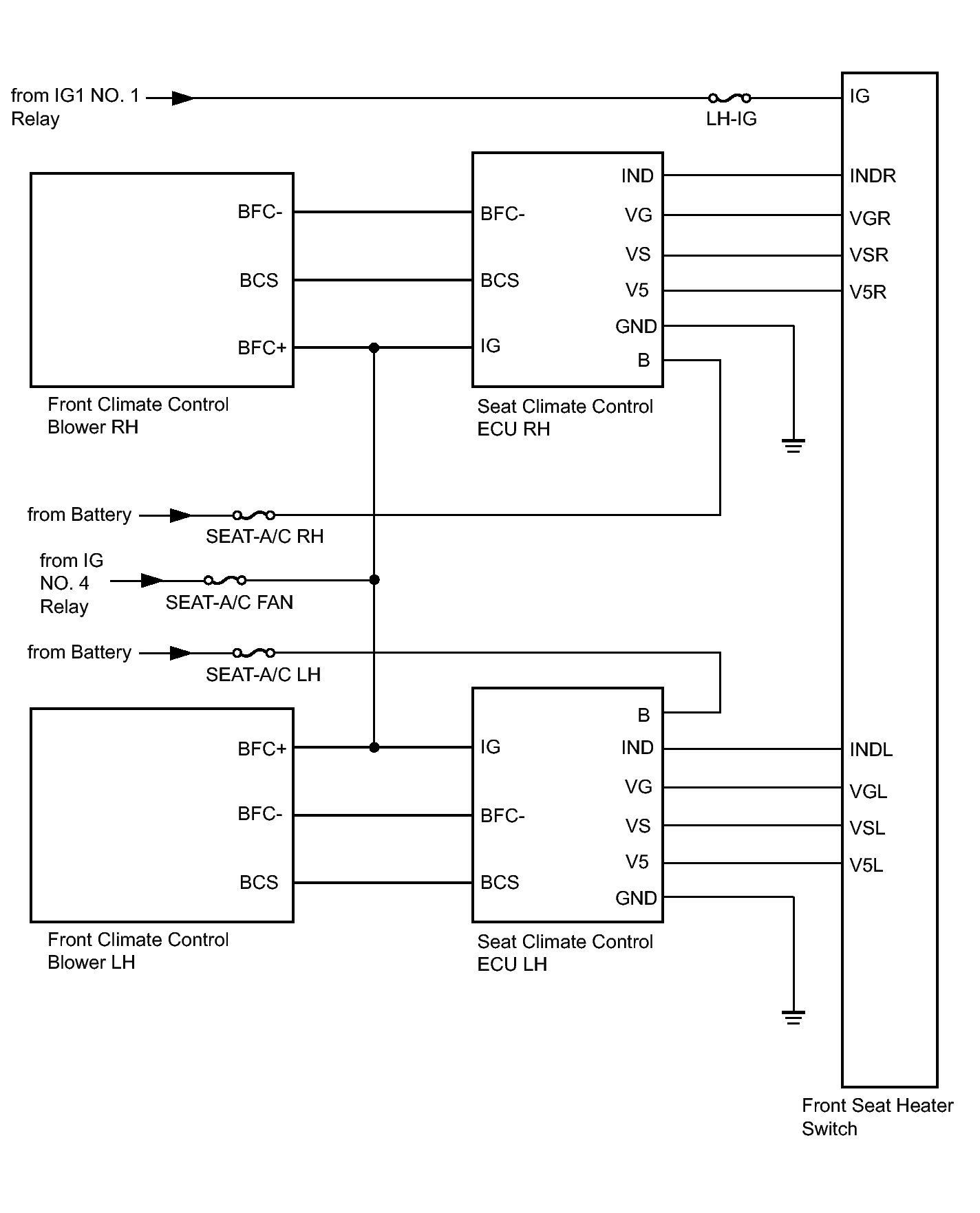

Fig 1: Identifying Climate Control Seat Wiring Diagram

GTY377474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
