Hybrid Vehicle Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System): Notes

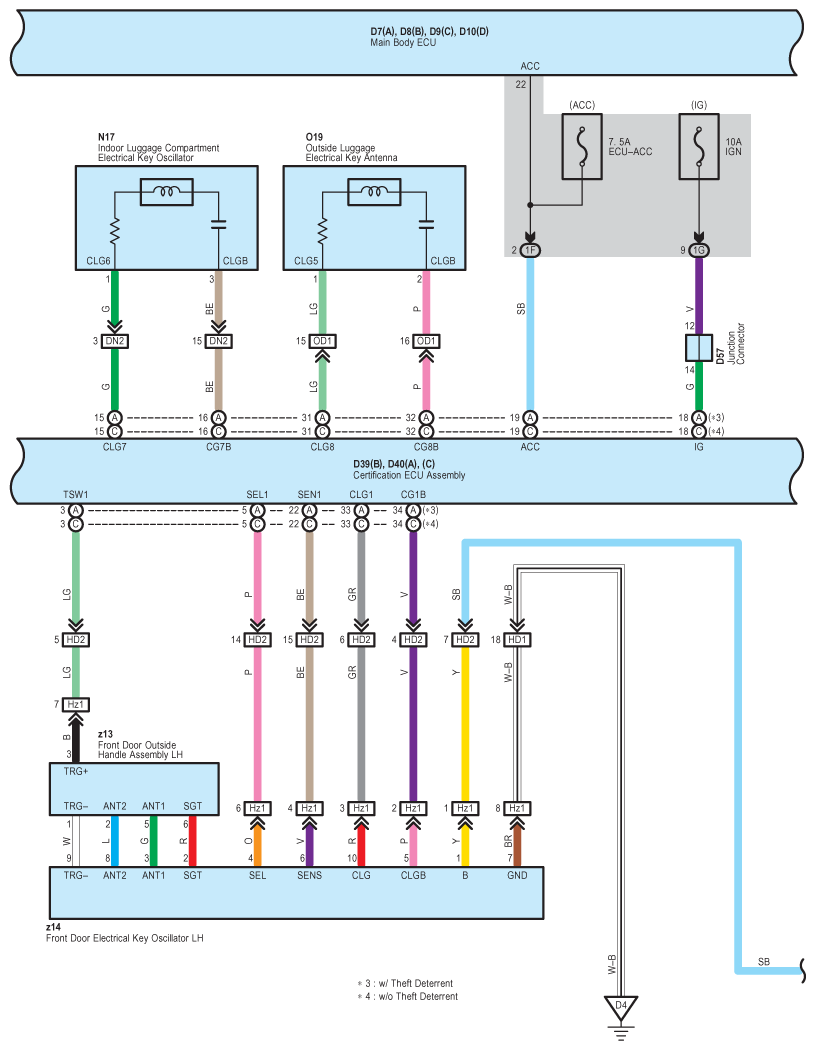

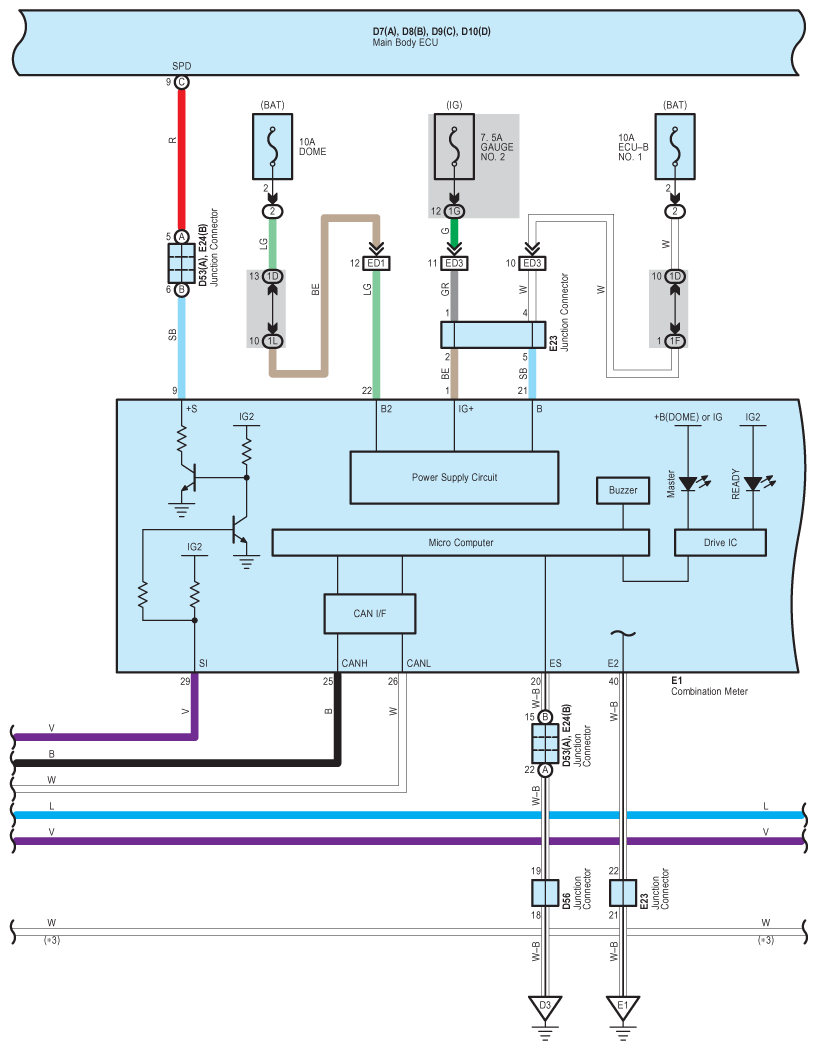

Fig 1: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

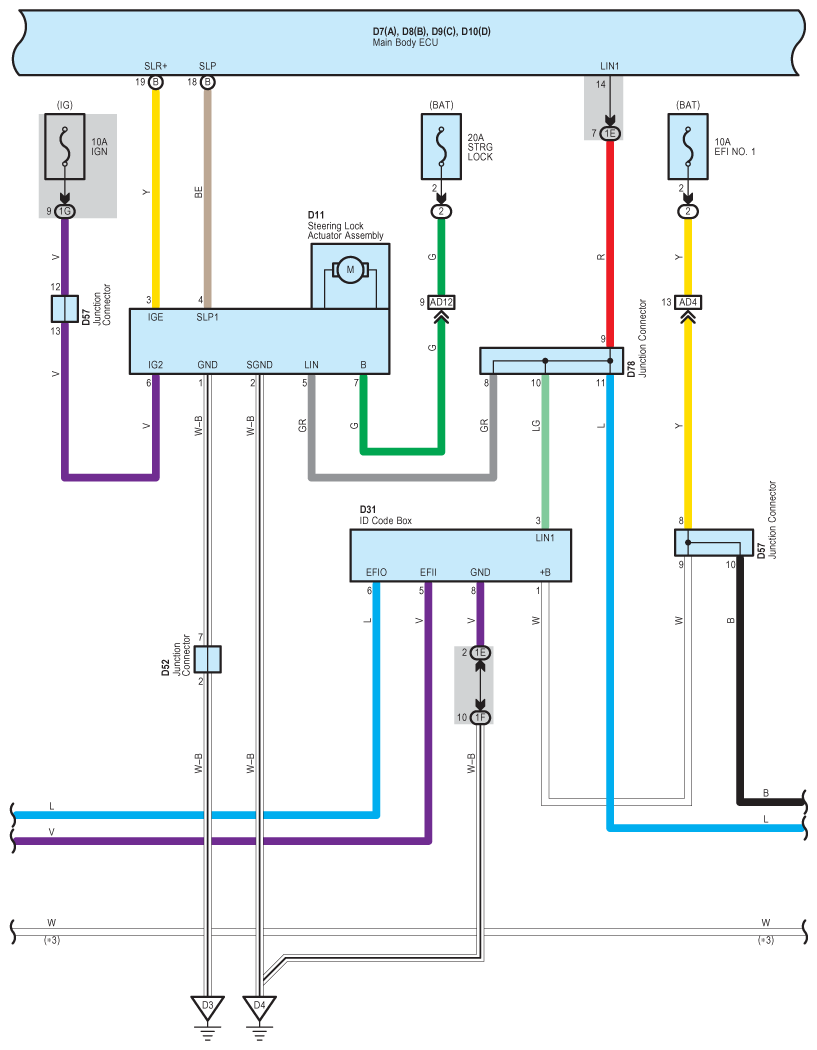

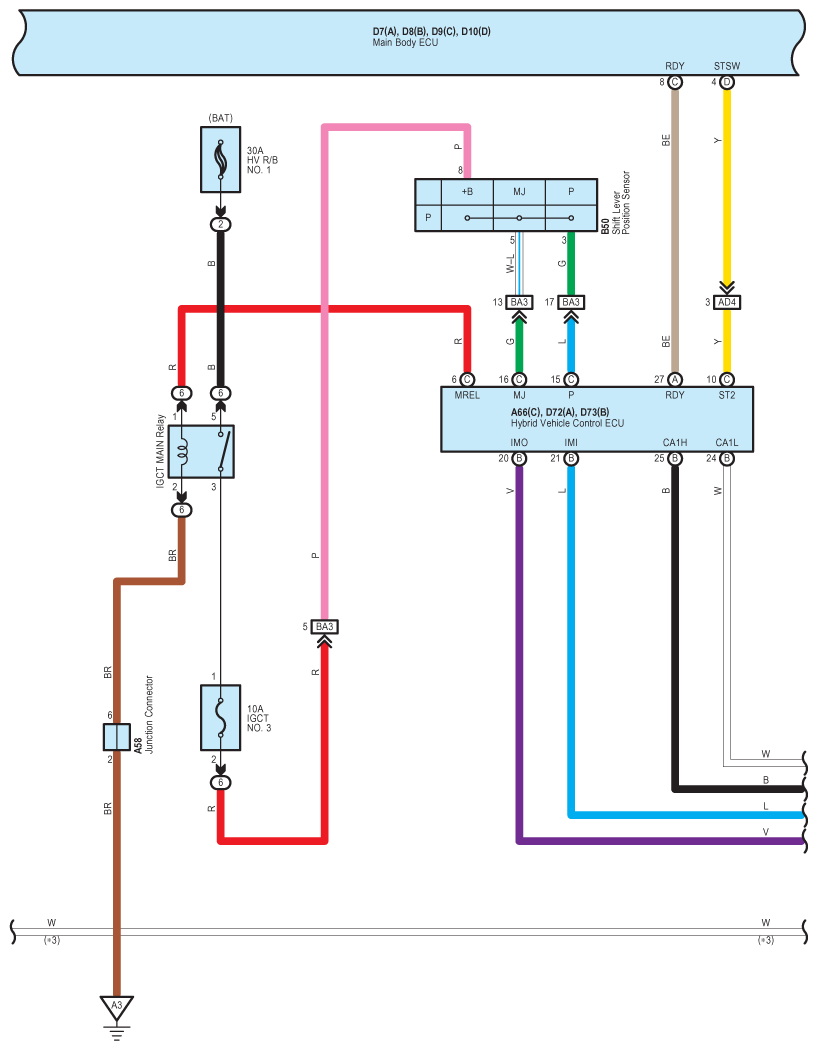

Fig 2: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

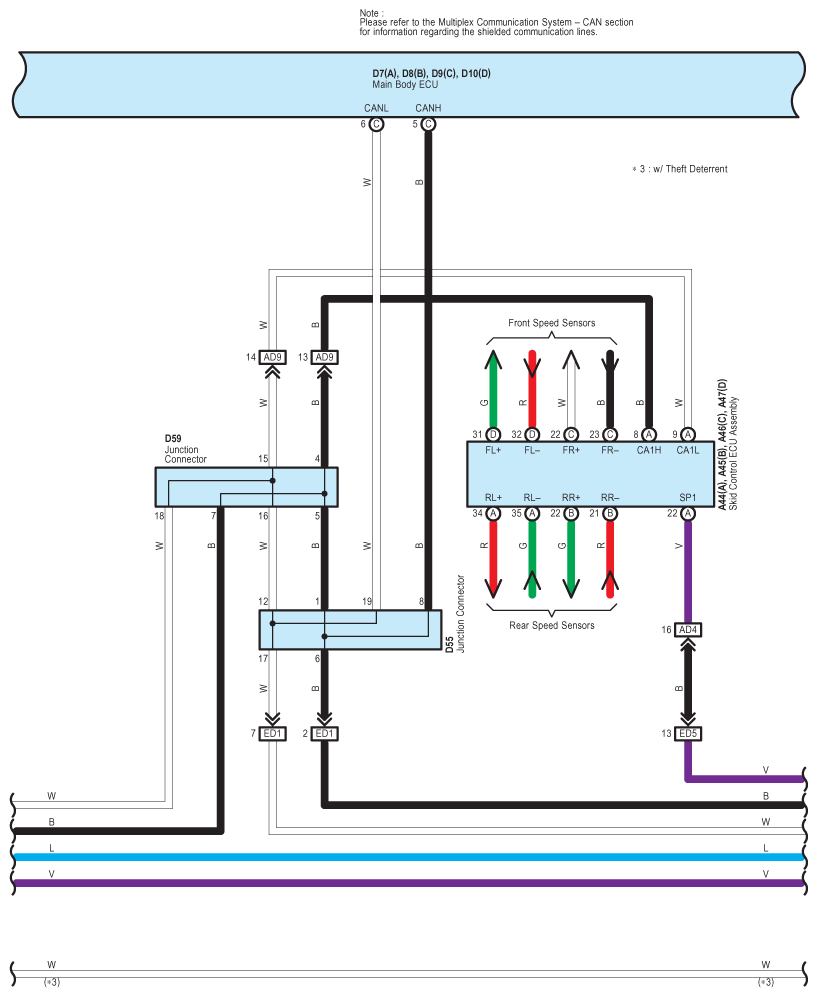

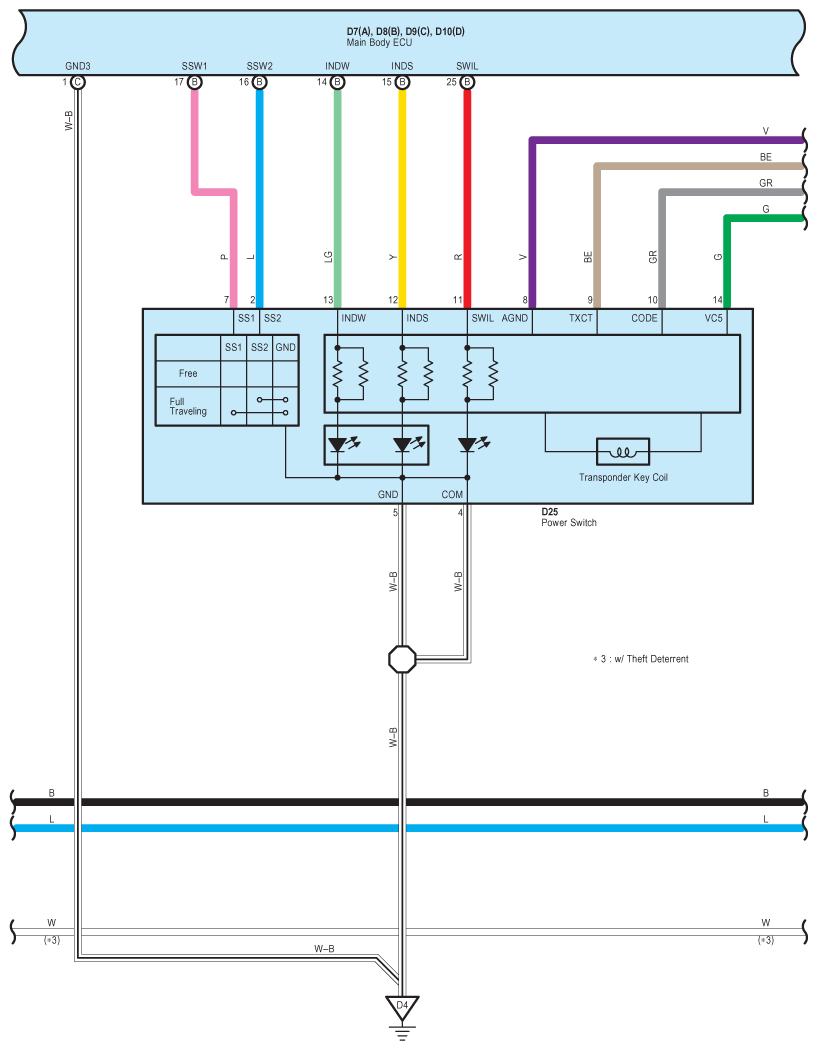

Fig 3: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

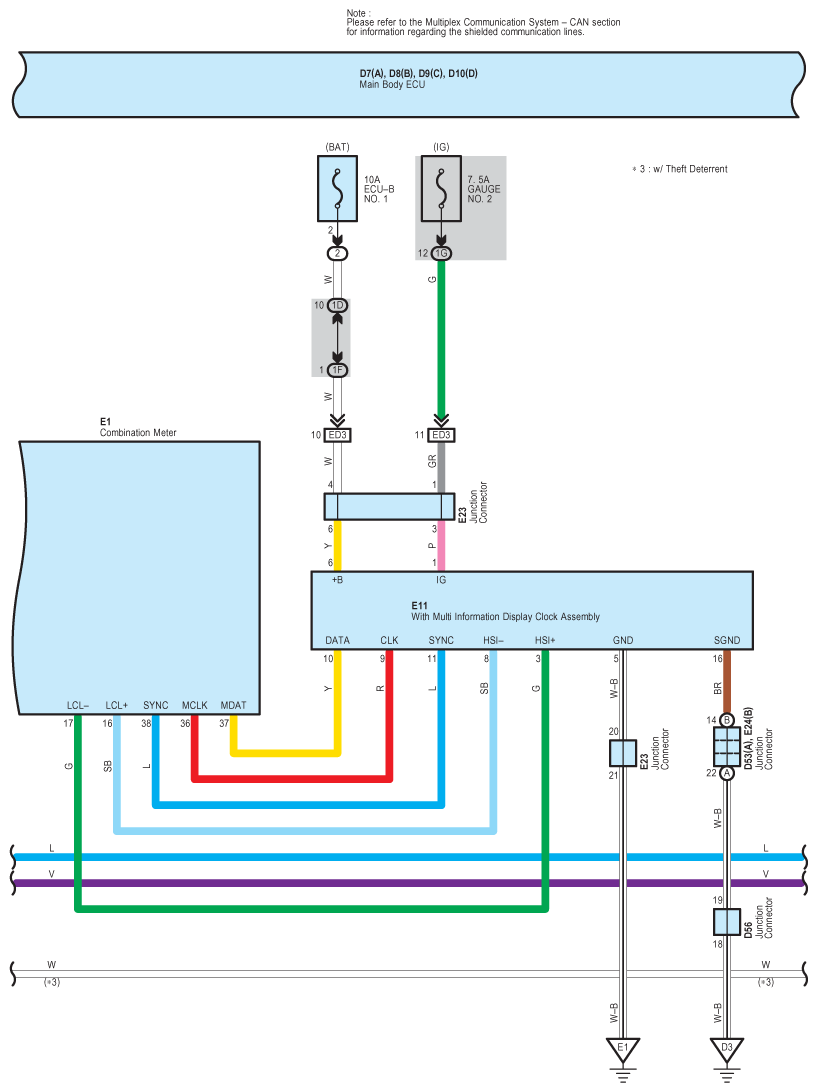

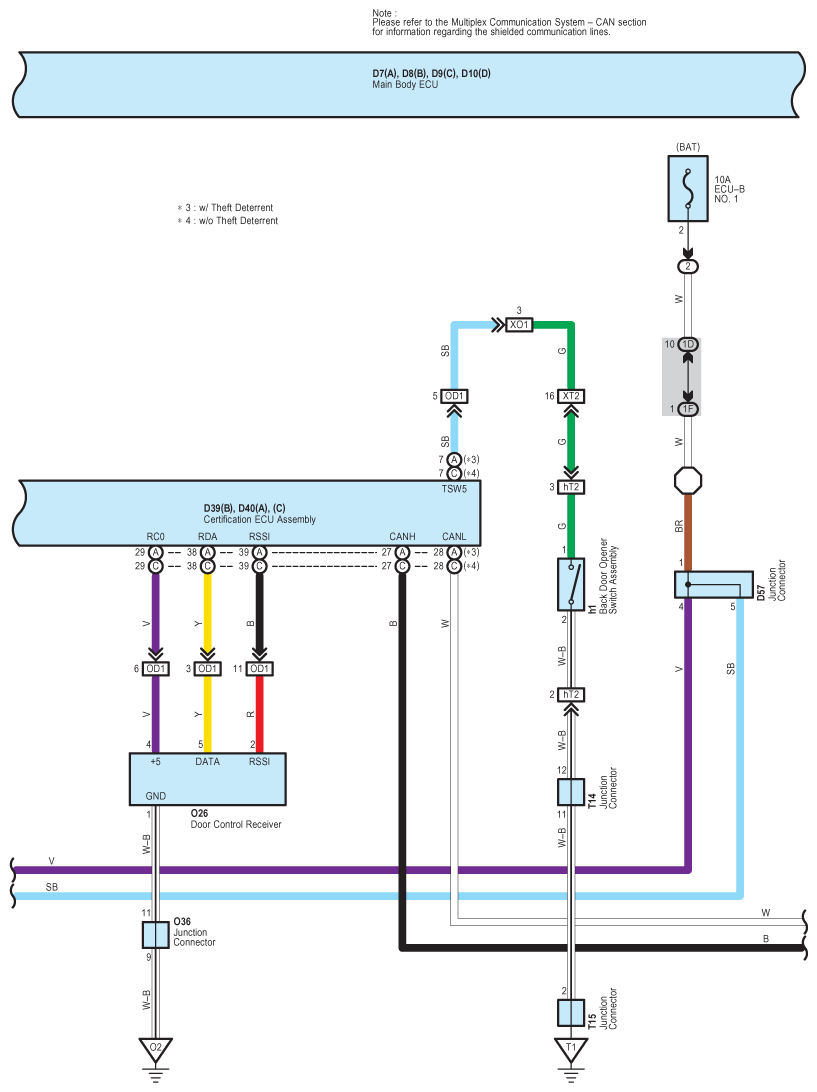

Fig 4: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

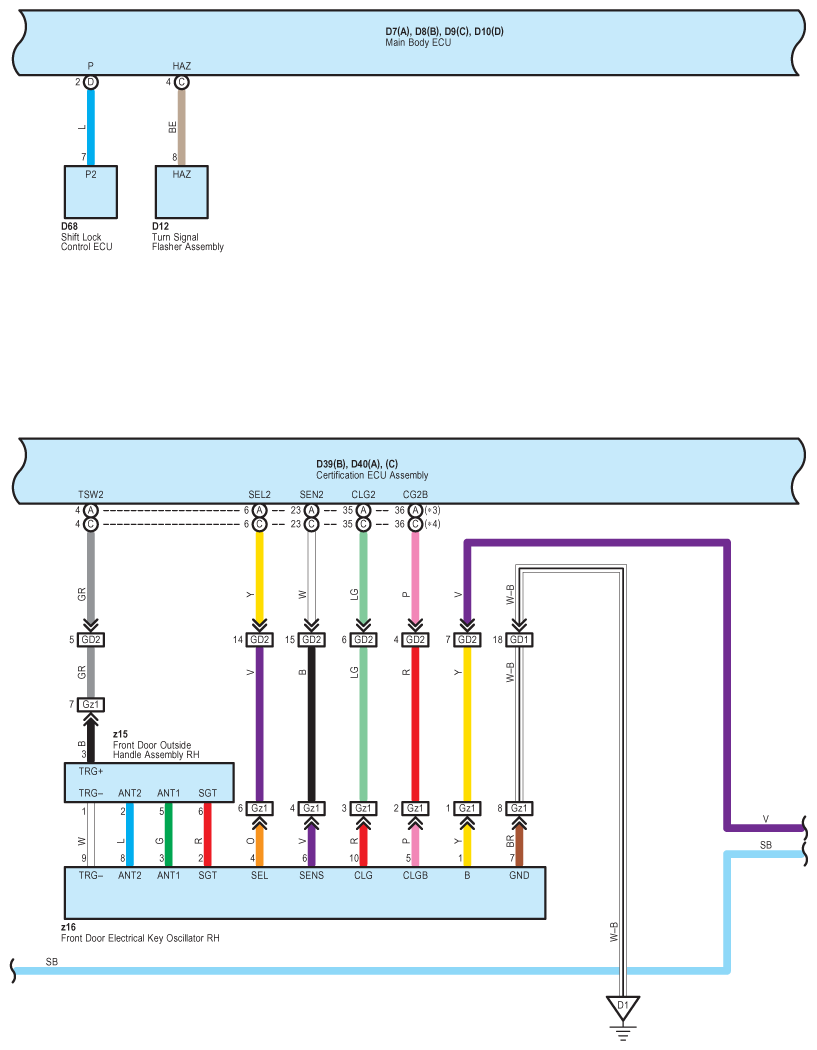

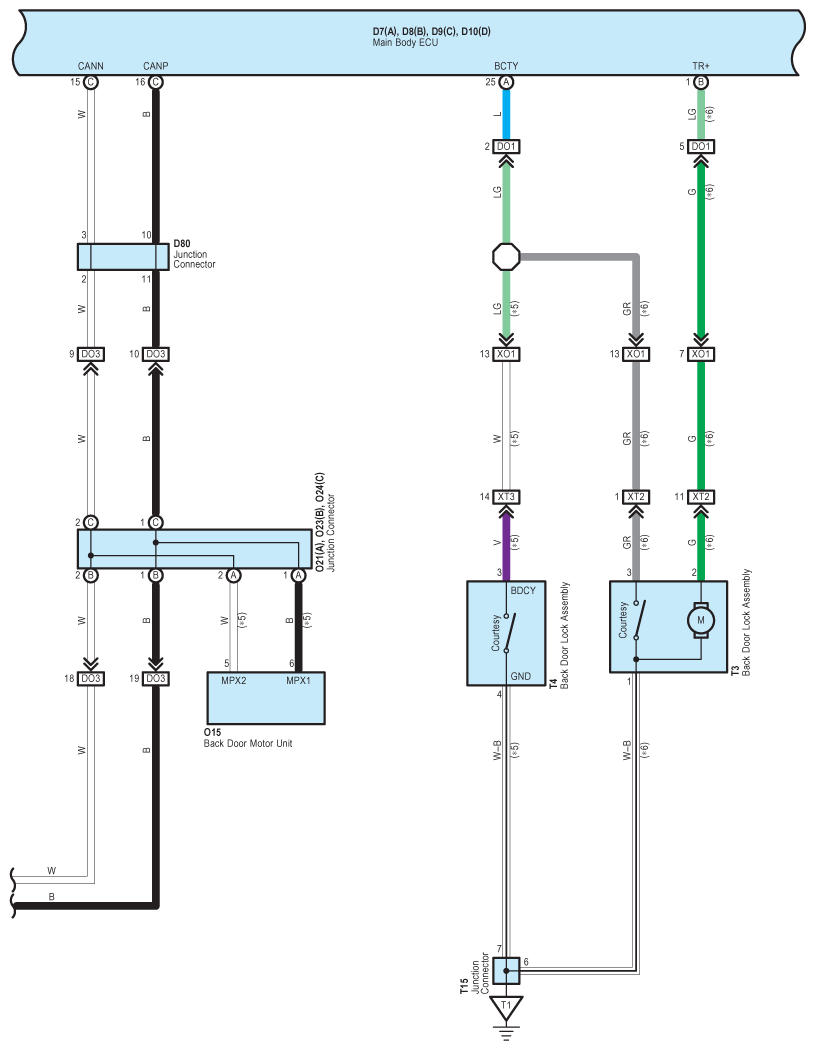

Fig 5: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

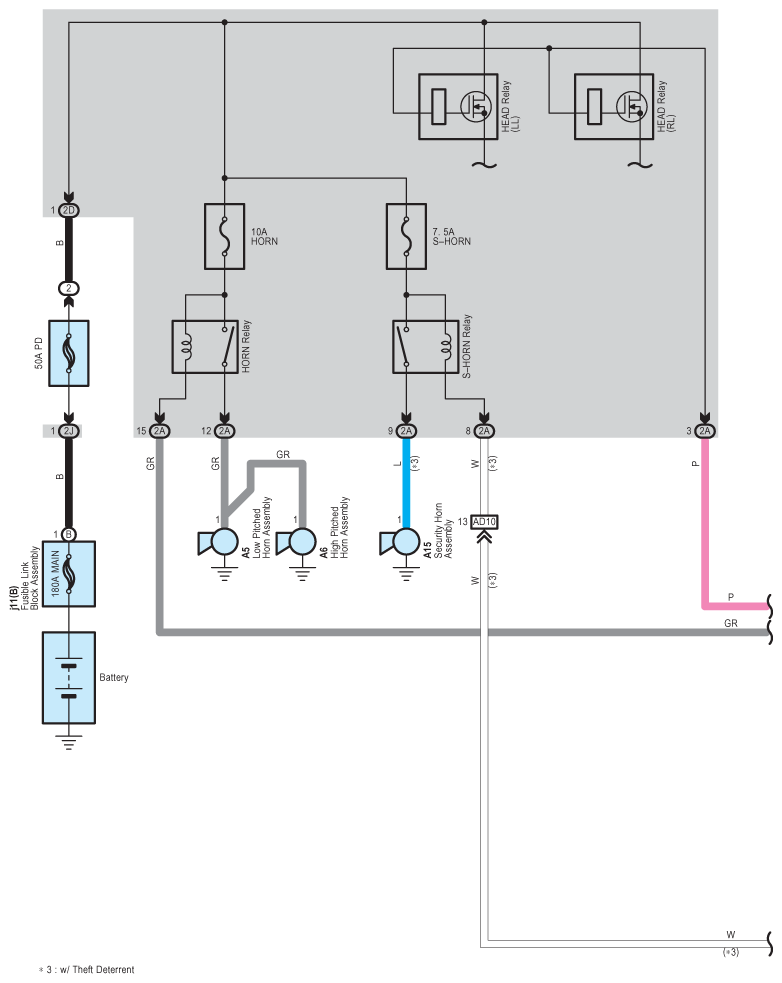

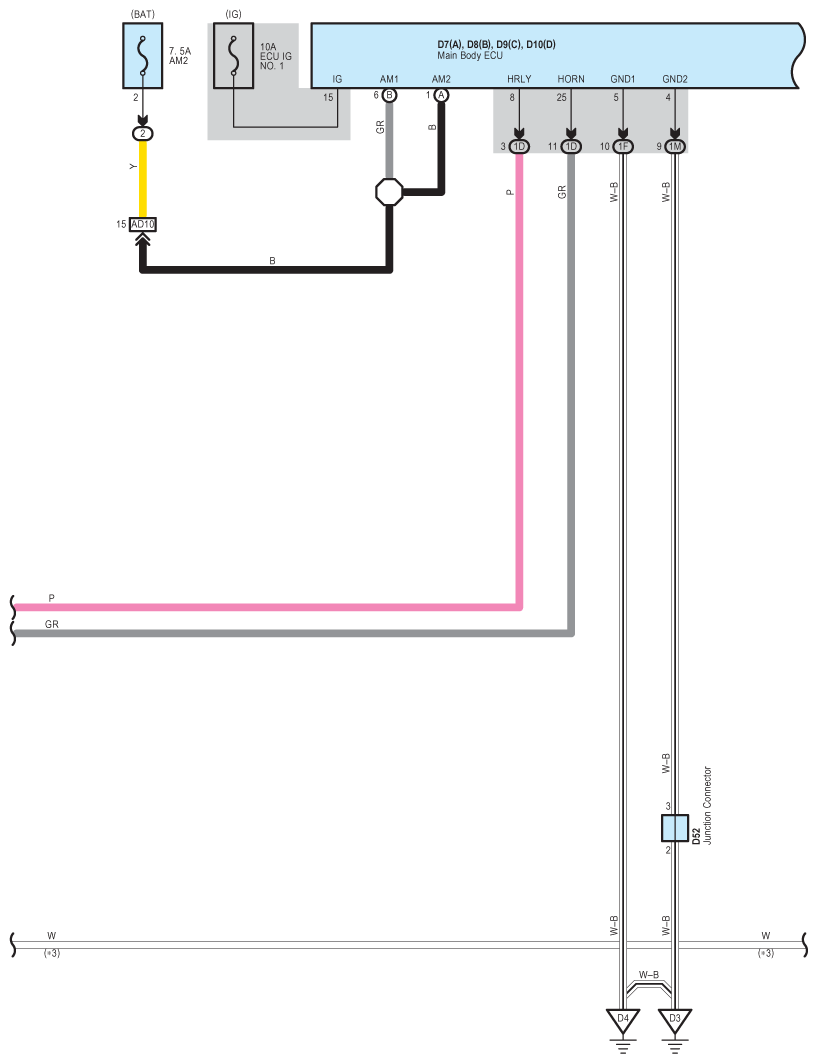

Fig 6: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

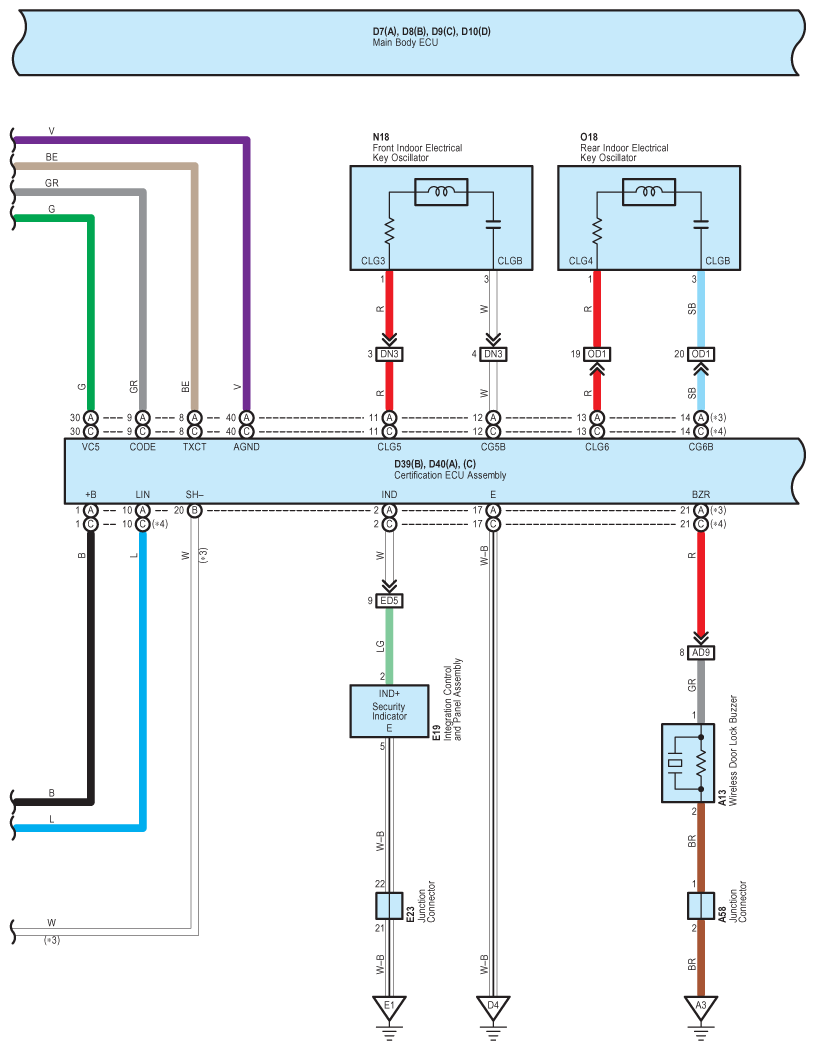

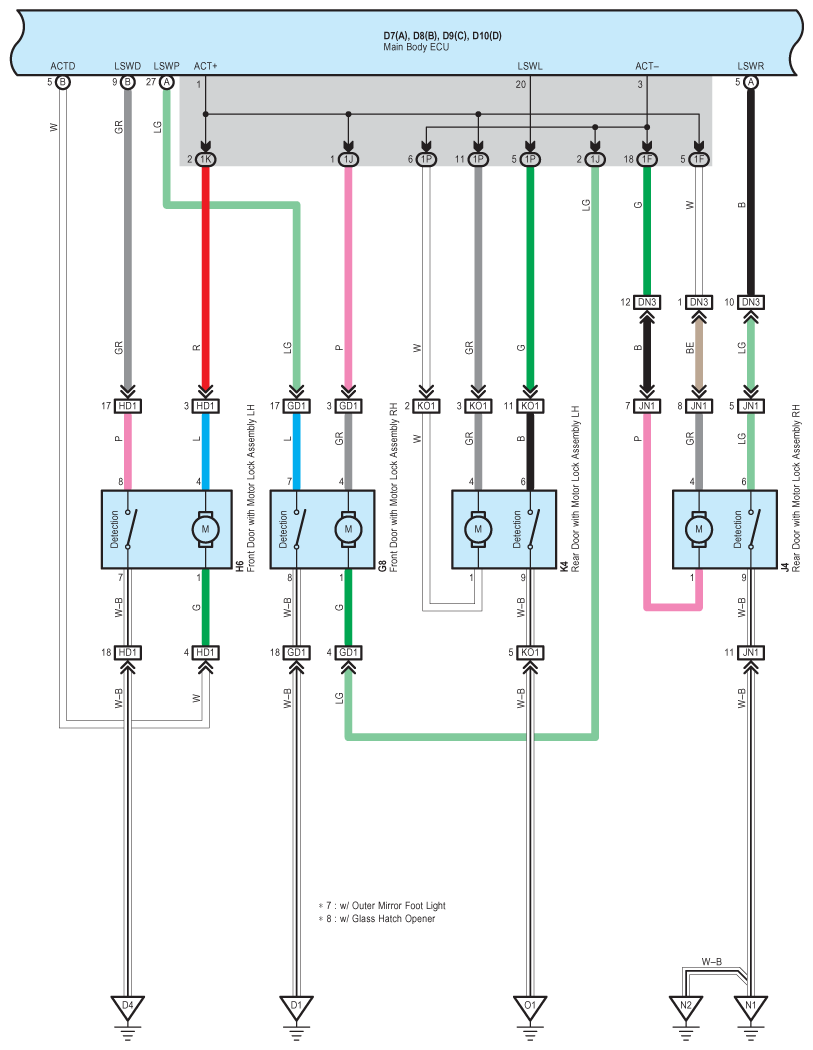

Fig 7: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

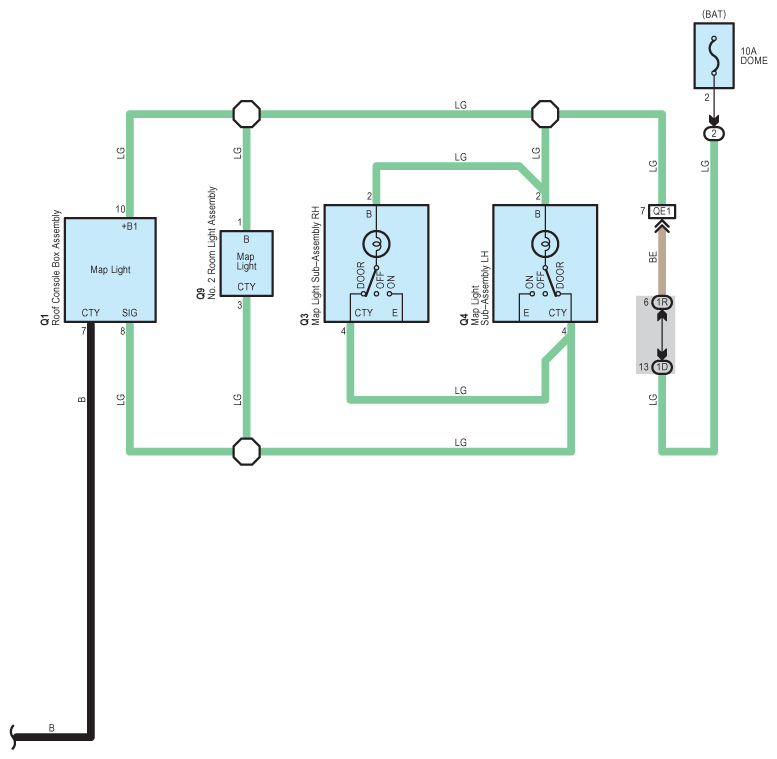

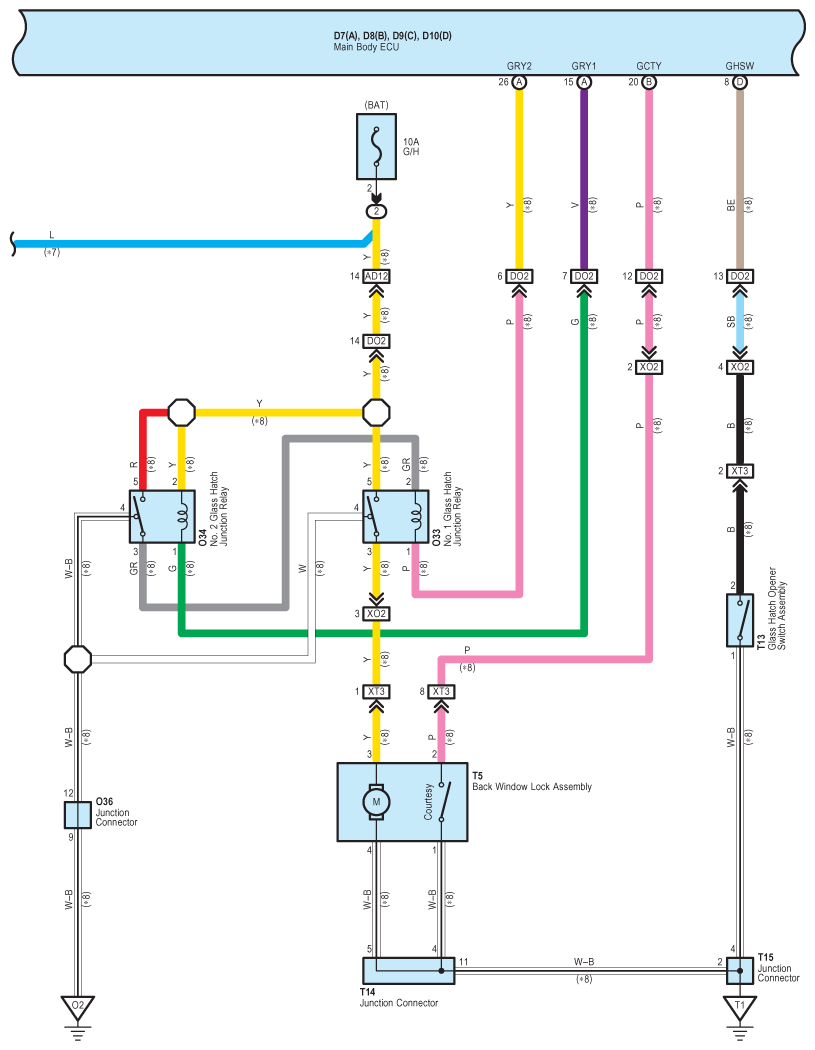

Fig 8: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 13 Of 18)

Fig 14: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 14 Of 18)

Fig 15: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 15 Of 18)

Fig 16: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 16 Of 18)

Fig 17: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 17 Of 18)

Fig 18: Hybrid Vehicle Immobilizer, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (With Smart Key; 18 Of 18)
