Power Window Control System (Diagnostics - Introduction) (Except Hybrid)
>>
Power Window Control System
>>
System Diagram
>>
System Diagram
System Diagram

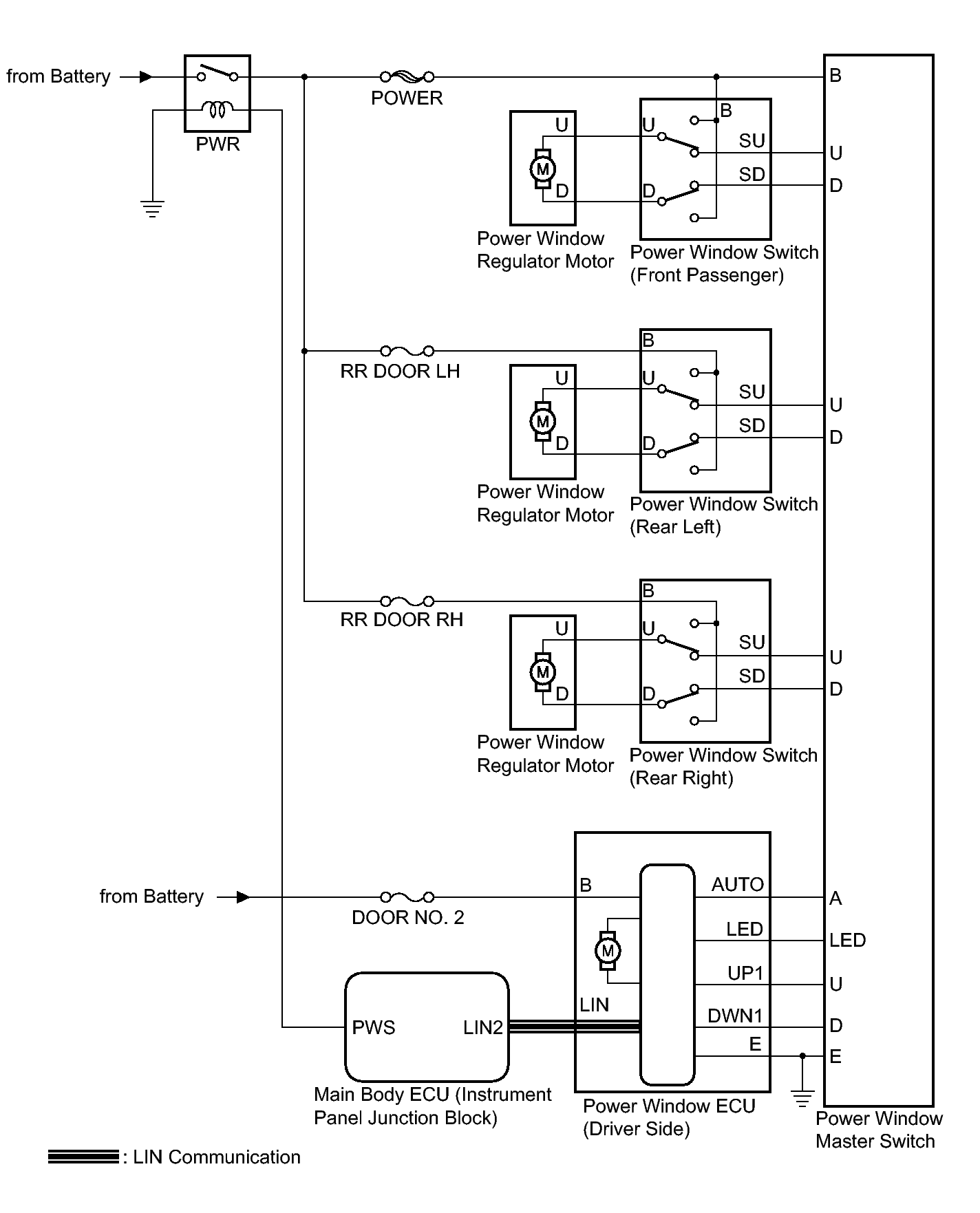

Fig 1: Power Window Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
