On-Vehicle Inspection

  1. INSPECT INTAKE SYSTEM
    1. Check that there is no air suction at the points shown in the illustration.

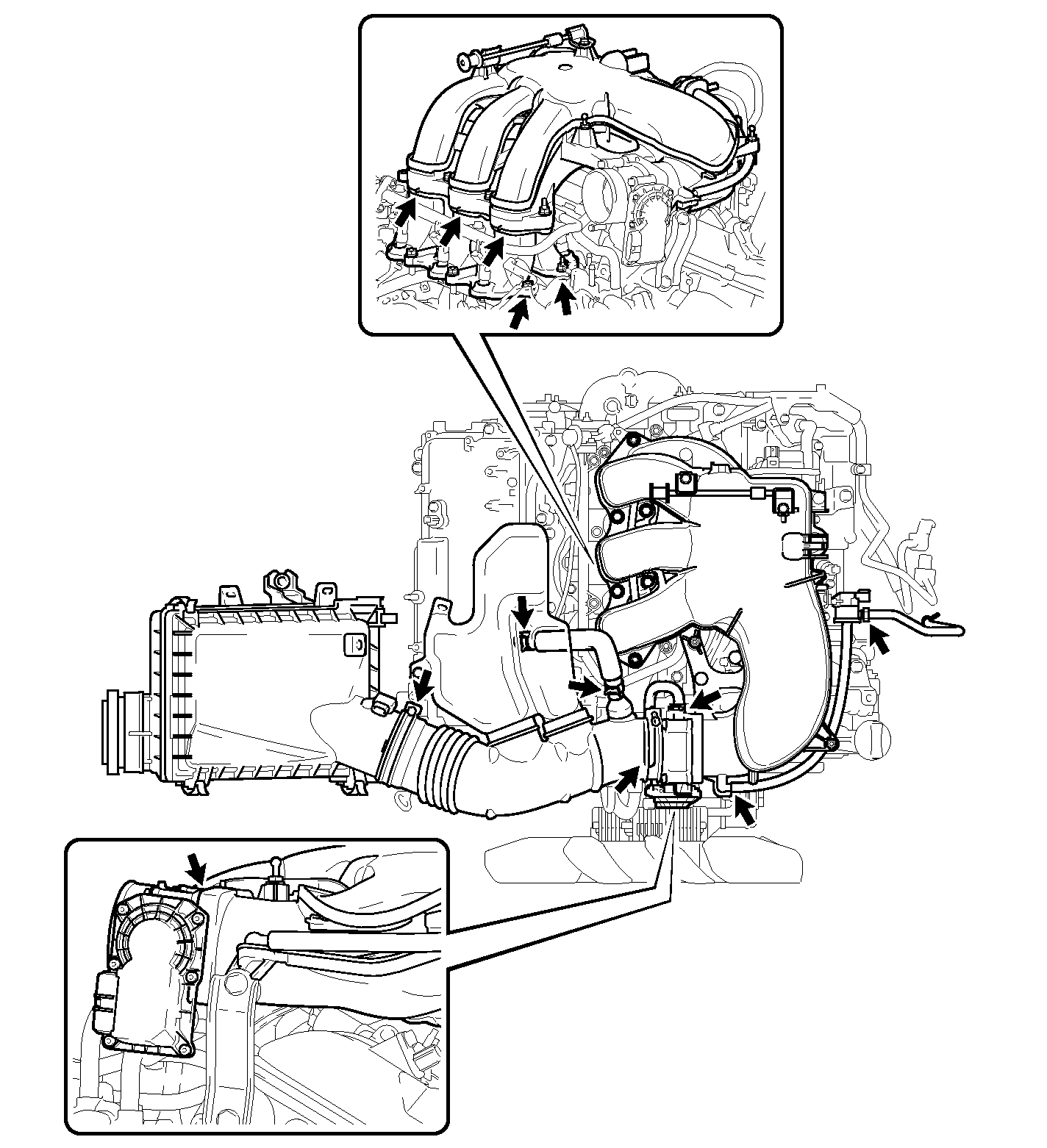

      Fig 1: Identifying Intake System Inspection Points
      GTY181278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Perform "Inspection After Repairs" after repairing or replacing the intake system. Refer to INITIALIZATION .
