System Diagram

  1. ELECTRICAL CONTROL DIAGRAM

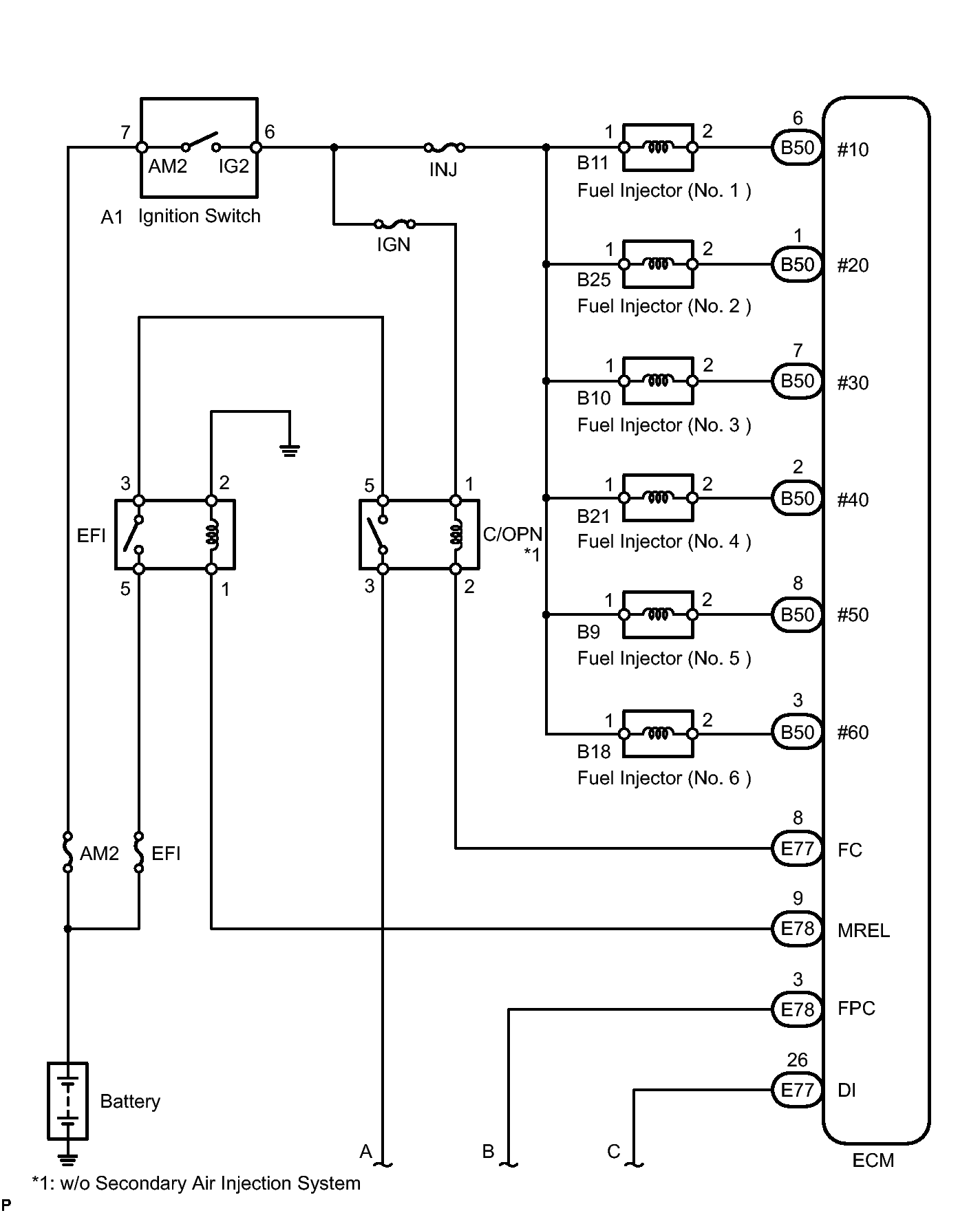

    Fig 1: Fuel Injection Electrical Control System Diagram
    GTY372756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

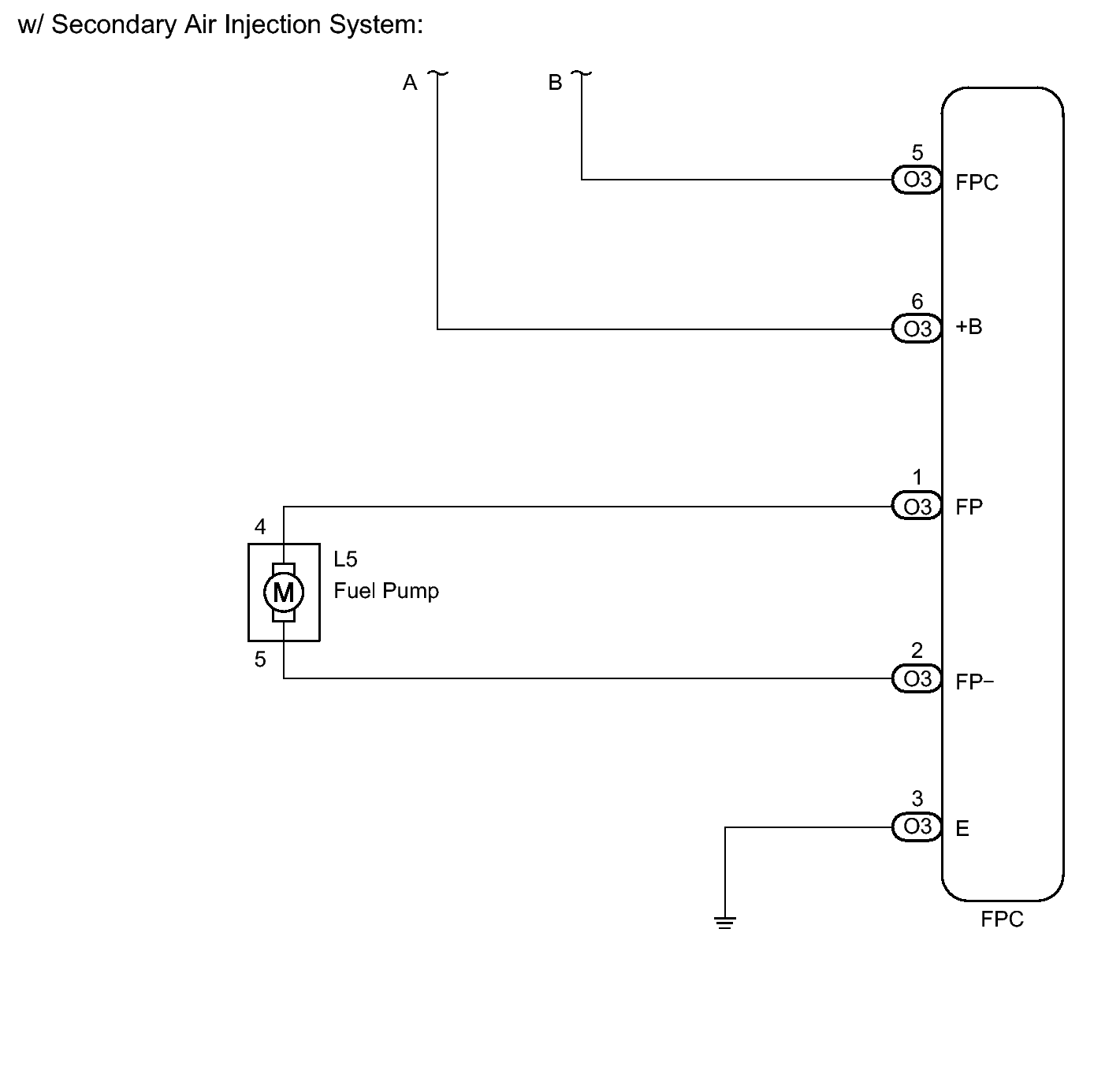

    Fig 2: Fuel Injection Electrical Control System Diagram (With Secondary Air injection System)
    GTY369563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Fuel Injection Electrical Control System Diagram (Without Secondary Air injection System)
    GTY365792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
