Shift Lock (Except TMC Made): Notes

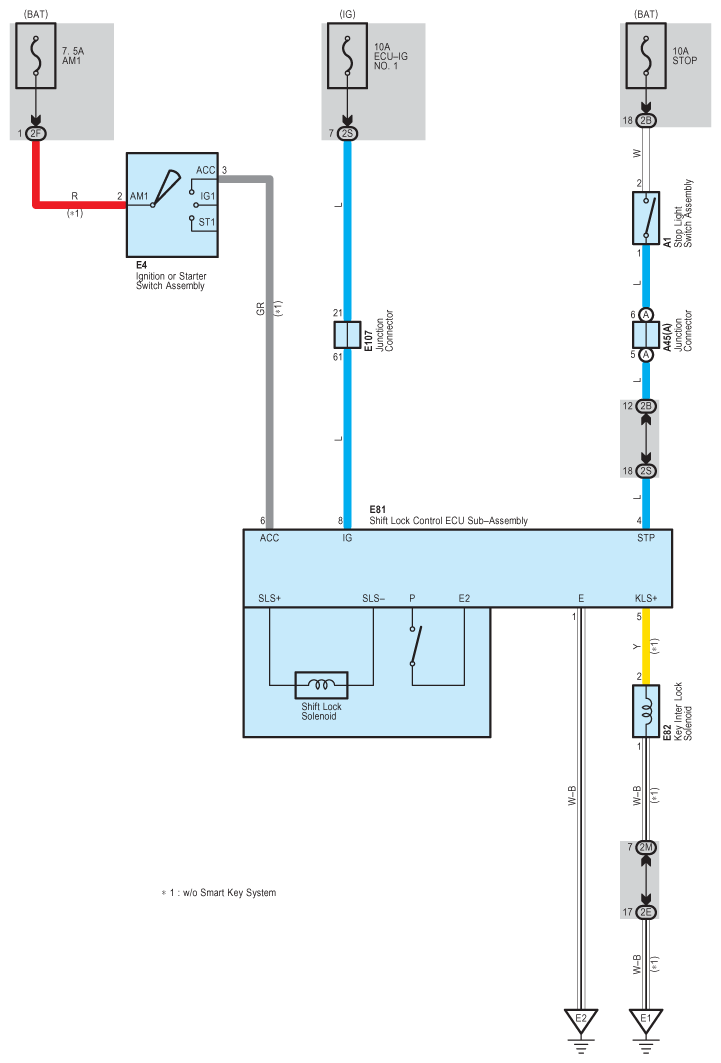

Fig 1: Shift Lock System Wiring Diagram (Except TMC Made)

G09106649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
