Seat Heater (Except TMC Made): Notes

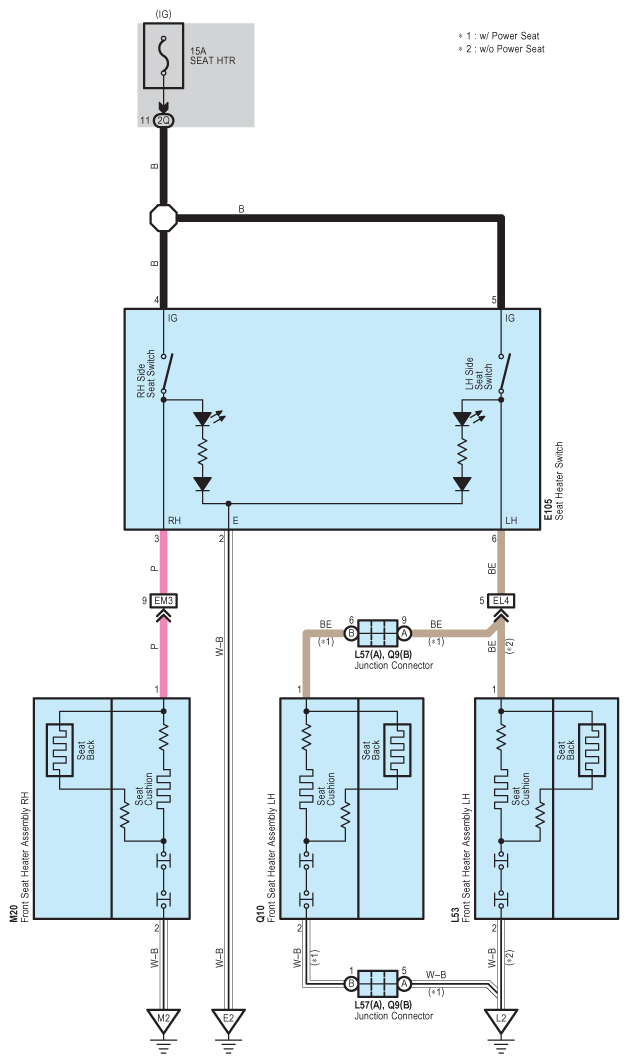

Fig 1: Seat Heater System Wiring Diagram (Except TMC Made)

G09106652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
